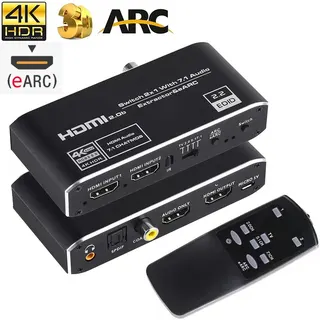

Black rectangular box with two HDMI inputs and multiple audio outputs on front and rear panels

Jansicotek

Jansicotek OZV2E 2x1 HDMI 2.0 Switch Audio Extractor ARC eARC 4K 60Hz

SKU CH-4MR5-HWJ59

A 2×1 HDMI 2.0 switch extracts audio via ARC and eARC to optical, coaxial, 3.5 mm and 7.1-channel HDMI outputs while passing 4K 60 Hz video

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two sources to one 4K 60 Hz display
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Supports ARC and eARC return-channel audio from TV
  • Handles Dolby Atmos, TrueHD, DTS:X and 7.1-channel LPCM
  • Includes IR remote and 5 V power supply

2×1 HDMI 2.0 Switch with eARC Audio Extraction

This Jansicotek OZV2E unit combines a two-input HDMI 2.0b switch with a multi-format audio extractor. It accepts two 4K sources at up to 60 Hz and routes the selected video to a single display while simultaneously sending audio to external systems. The device is aimed at installers and home-theatre owners who need to connect multiple 4K players, consoles or streamers to one screen and separate the sound for a receiver or soundbar.

Upgrading from single-input extractors

A basic HDMI switch only passes combined video and audio to the display, forcing the TV to handle decoding. This model adds dedicated optical Toslink, coaxial, 3.5 mm and HDMI-audio-only outputs plus ARC and eARC support, so a legacy AVR or active speakers can receive lossless multichannel formats without replacing the display. The jump is worth it when the existing sound system lacks HDMI 2.0 inputs but can decode Dolby TrueHD, Atmos, DTS-HD Master or DTS:X via SPDIF or analogue connections.

Practical limits of the HDMI 2.0b interface

The 18.5 Gbps bandwidth caps video at 4K 60 Hz 8-bit RGB or 4:4:4, with 10- or 12-bit colour only at 4:2:2 or 4:2:0 subsampling. Higher frame rates such as 4K 120 Hz or uncompressed 4K 60 Hz 10-bit 4:4:4 exceed the link capacity and will not pass. Audio extraction is limited to the formats the SPDIF, coaxial and analogue outputs can carry; full-bitrate object-based codecs above the SPDIF throughput ceiling must use the HDMI-audio-only or eARC path to a compatible receiver.

Highlights

  • Switch two sources to one 4K 60 Hz display
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Supports ARC and eARC return-channel audio from TV
  • Handles Dolby Atmos, TrueHD, DTS:X and 7.1-channel LPCM
  • Includes IR remote and 5 V power supply

Specifications

BrandJansicotek
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

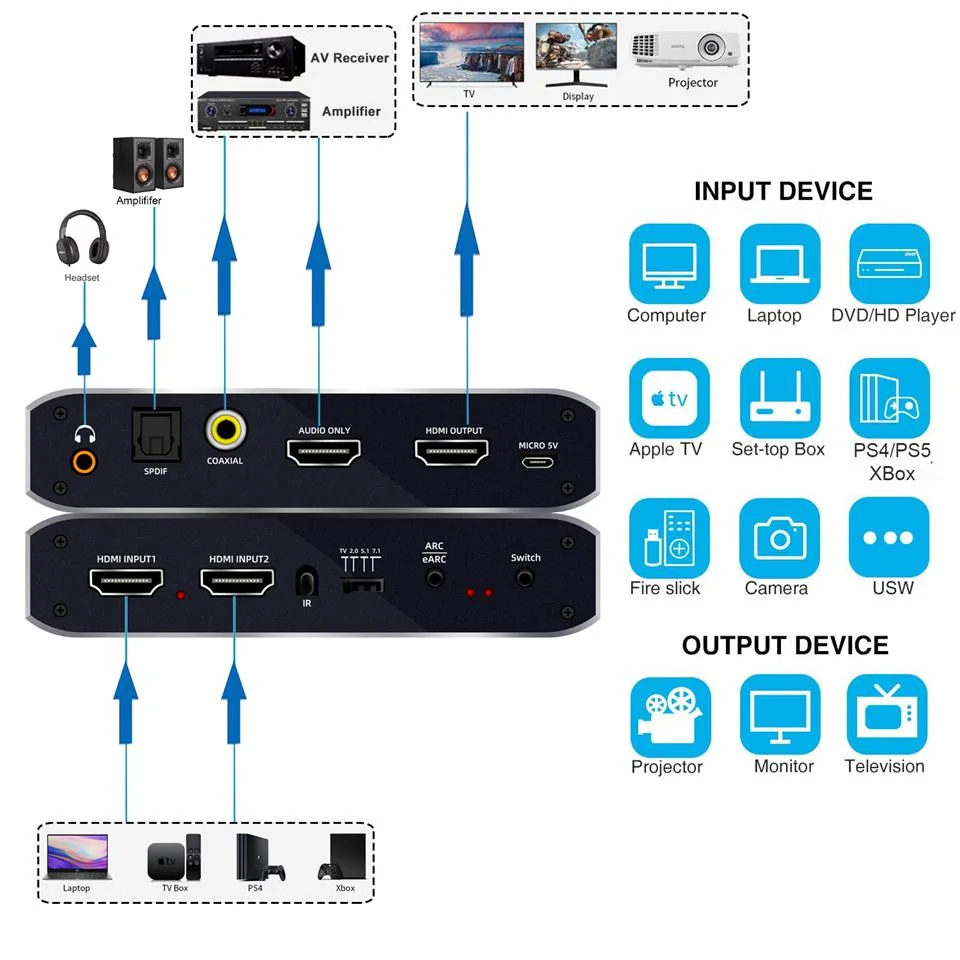

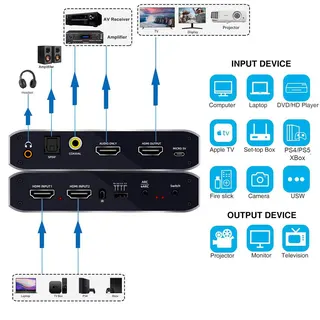

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What clearance is needed for the 5.75 x 5.08 x 1.5 inch unit and its 5V/1000mA power adapter?

Allow at least 5.75 by 5.08 inches of shelf space with 1.5 inches of height; the external 5V/1000mA adapter adds a short cable tail that needs a nearby mains socket.

Which button or remote command actually switches the active HDMI input, and what indicates success?

Press the Input button on the IR remote or the selector on the box; the front LED changes to show which of the two HDMI 2.0b ports is now routed to the output.

What ongoing upkeep does the IR remote require?

The remote ships without a battery; insert a standard coin cell and replace it when the LED no longer flashes or the unit stops responding from normal distance.
