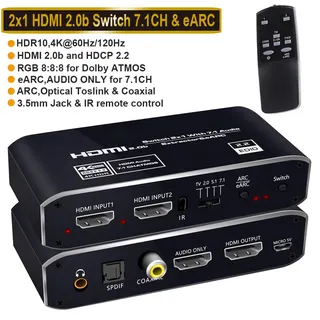

Small black box with HDMI ports and audio outputs

Jansicotek

Jansicotek OZV2E 2×1 HDMI 2.0b switch audio extractor ARC

SKU CH-5AYS-H2ZDG

Switches two HDMI 2.0b sources to one display while extracting audio via optical, coaxial, 3.5 mm and HDMI ARC at up to 4K 60 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two sources to one display at 4K 60 Hz
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Supports ARC and eARC for TV audio return
  • Toggle between stereo, 5.1 and 7.1 channel output formats
  • Handles 18.5 Gbps bandwidth with HDCP 2.2 and 3D support

2×1 HDMI 2.0b switch with ARC

The Jansicotek OZV2E routes two HDMI 2.0b sources to one display while extracting audio through multiple outputs. It handles 4K at 60 Hz, 3D and HDCP 2.2 for consoles, streaming sticks or media players. A four-position toggle selects TV stereo, 2.0, 5.1 or 7.1 channel formats. An IR remote switches inputs without front-panel access.

Bundled remote power and cables

The package includes a 5 V 2 A DC adapter and an IR remote that operates without batteries supplied. Optical Toslink, coaxial, 3.5 mm jack and a dedicated HDMI audio-only port give flexible connections to receivers, soundbars or headphones. ARC and eARC support lets the TV send audio back through the same HDMI link. No software or drivers are required for operation.

18.5 Gbps bandwidth ceiling

The HDMI 2.0b interface caps video at 3840 × 2160 at 60 Hz with 8-bit colour in RGB 4:4:4 or YCbCr 4:2:2 and 4:2:0. Higher refresh rates such as 120 Hz at 4K exceed the 18.5 Gbps limit and are not supported. Deep-colour 10-bit and 12-bit modes are restricted to 1080p or YCbCr 4:2:2 at 4K. Buyers needing 4K 120 Hz or uncompressed 10-bit 4:4:4 at 4K must use an HDMI 2.1 device.

Highlights

  • Switch two sources to one display at 4K 60 Hz
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Supports ARC and eARC for TV audio return
  • Toggle between stereo, 5.1 and 7.1 channel output formats
  • Handles 18.5 Gbps bandwidth with HDCP 2.2 and 3D support

Specifications

BrandJansicotek
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

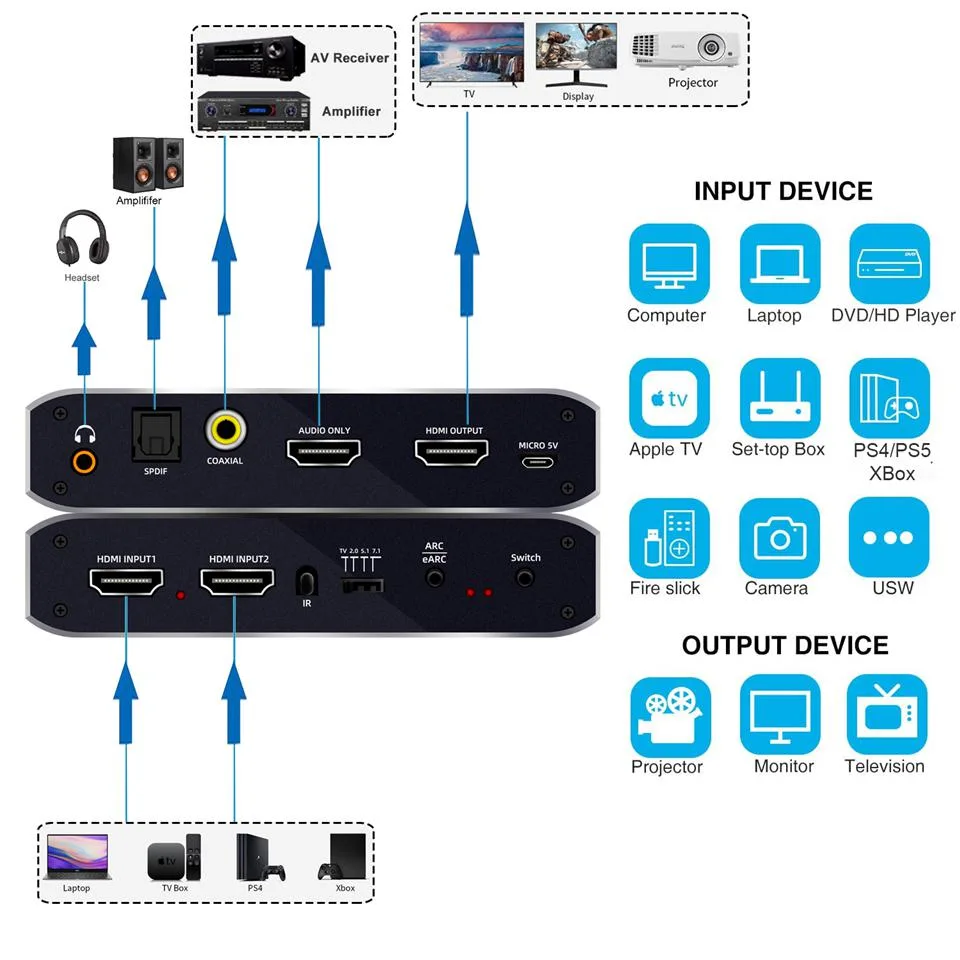

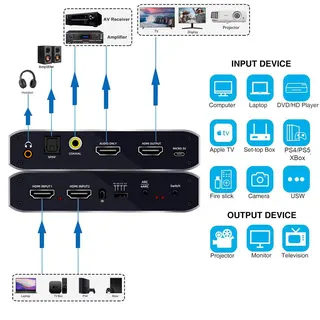

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

Will the 5 V 1 A power adapter need replacement if it fails?

The unit ships with a 5 V 2 A DC power adapter; if that adapter fails you can replace it with any 5 V supply rated at 2 A or higher.

What bandwidth ceiling limits 4K 60 Hz passthrough?

The switch is rated for 18.5 Gbps, which is the maximum throughput for 4K 60 Hz RGB 8:8:8 signals.

Does the extractor get hot or draw much power when running continuously?

It operates from a 5 V 2 A external supply and has no fan; typical draw is well under 10 W so it stays cool during all-day use.
