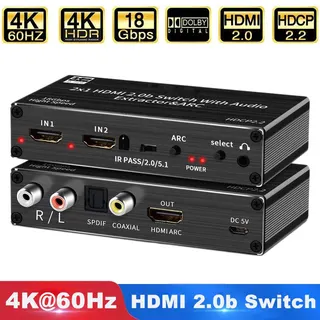

Black rectangular HDMI switch with multiple audio output ports and IR remote

Jansicotek

Jansicotek OZV2 2x1 HDMI Switch Audio Extractor ARC

SKU CH-B628-3H9NK

Routes two HDMI 2.0 sources to one display at 4K 60 Hz while extracting audio via optical, coaxial, 3.5 mm and RCA outputs with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Switch two 4K sources to one display
  • Extract audio via optical, coaxial, 3.5 mm or RCA
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • ARC function returns TV audio through optical or coaxial
  • Includes IR remote for convenient source switching

What This Switch Does

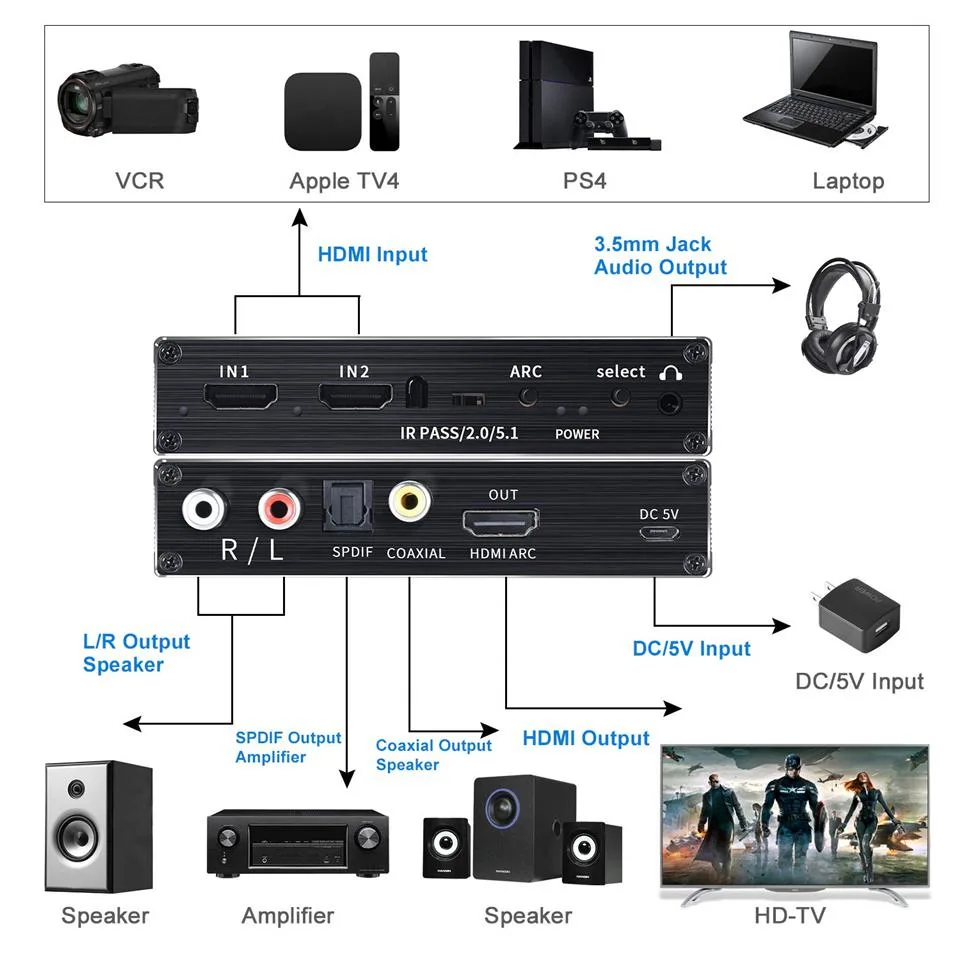

The Jansicotek OZV2 is a 2x1 HDMI 2.0b switch with an integrated audio extractor. It routes two 4K sources to one display while sending sound to external speakers through optical, coaxial, 3.5 mm jack or stereo RCA outputs. The unit supports ARC on the HDMI output and the digital audio ports.

Ideal Setup vs Limits

This suits anyone who needs to connect two HDMI 2.0 devices to a single 4K screen and separate the audio for a soundbar or AV receiver. It is not for installations that require more than two inputs, switching without a remote, or DVI source compatibility.

The Deciding Spec

Maximum video bandwidth is 18.5 Gbps, enabling 3840 x 2160 at 60 Hz with 4:4:4 colour sampling. If your display or sources need higher throughput, this switch will not pass the signal.

Highlights

  • Switch two 4K sources to one display
  • Extract audio via optical, coaxial, 3.5 mm or RCA
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • ARC function returns TV audio through optical or coaxial
  • Includes IR remote for convenient source switching

Specifications

BrandJansicotek
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

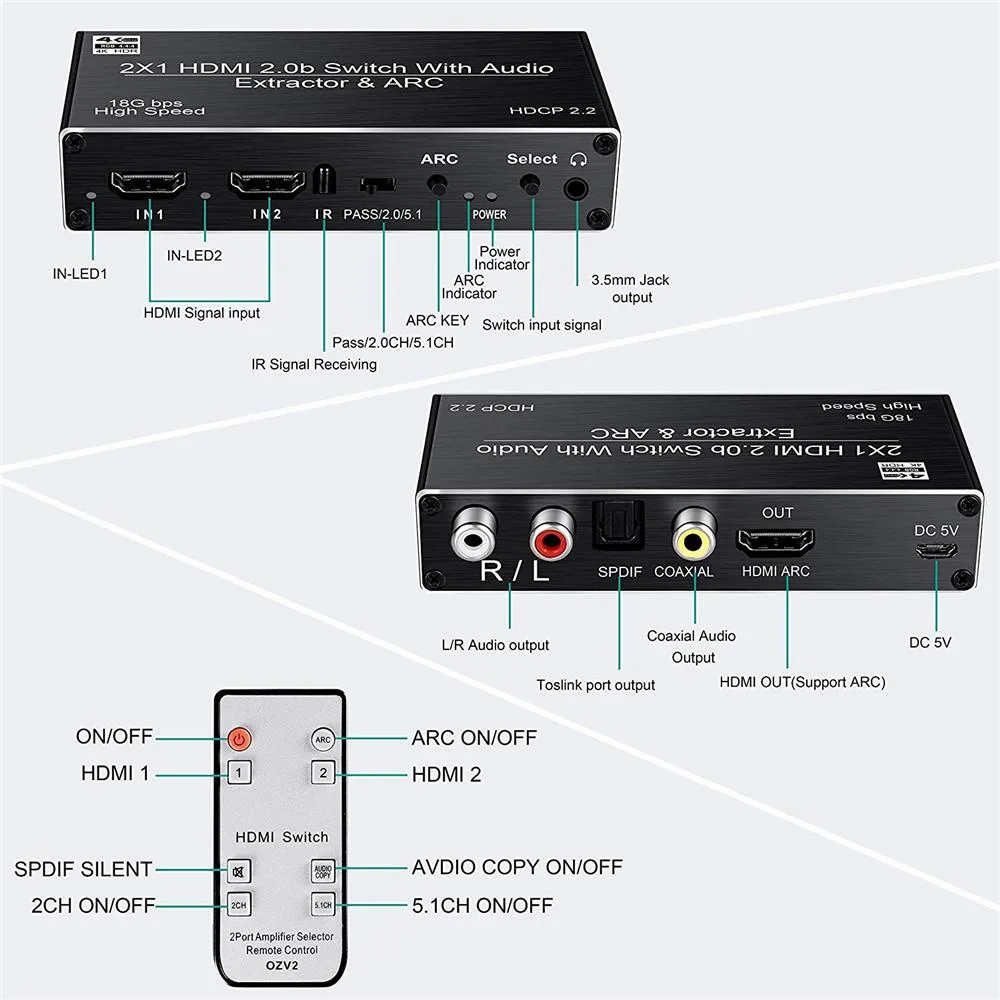

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What comes in the box with the Jansicotek OZV2 2x1 HDMI Switch and what must I buy separately?

The package includes the HDMI switch unit, a 5V/1A DC power adapter, an IR remote control, and a user manual. The remote requires a battery which is not included. You will need to provide your own HDMI cables for the two inputs and one output.

Should I choose the optical Toslink, coaxial, 3.5mm jack or RCA L/R output for my audio system?

Use Toslink or coaxial for digital surround sound up to 7.1 channels and for ARC return audio from a compatible TV. Choose 3.5mm jack or RCA L/R for analogue stereo connections to older amplifiers or powered speakers.

What does the 18.5 Gbps bandwidth figure mean when I connect a PS5 or Xbox to my 4K display?

It supports 4K resolution at 60 Hz with 4:4:4 chroma sampling and 24-bit colour depth, plus HDR10. The switch passes HDCP 2.2 so protected 4K content plays without downscaling to 1080p.
