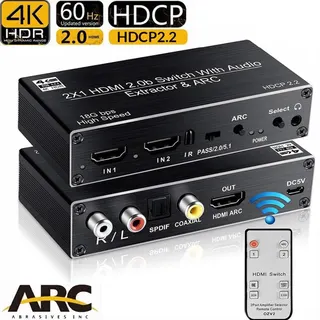

Compact black HDMI switch with two inputs, one output and multiple audio ports

Jansicotek

Jansicotek OZV2 2x1 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-7EEF-7ZX7D

Switches two HDMI 2.0 sources to one display and extracts audio via optical, coaxial, RCA and 3.5 mm outputs with ARC support at 4K 60 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Switch two 4K sources to one display with zero signal loss
  • Extract audio via optical, coaxial, RCA or 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • ARC return channel sends TV audio back to your sound system
  • Includes IR remote for convenient input switching from the sofa

Purpose & Audience

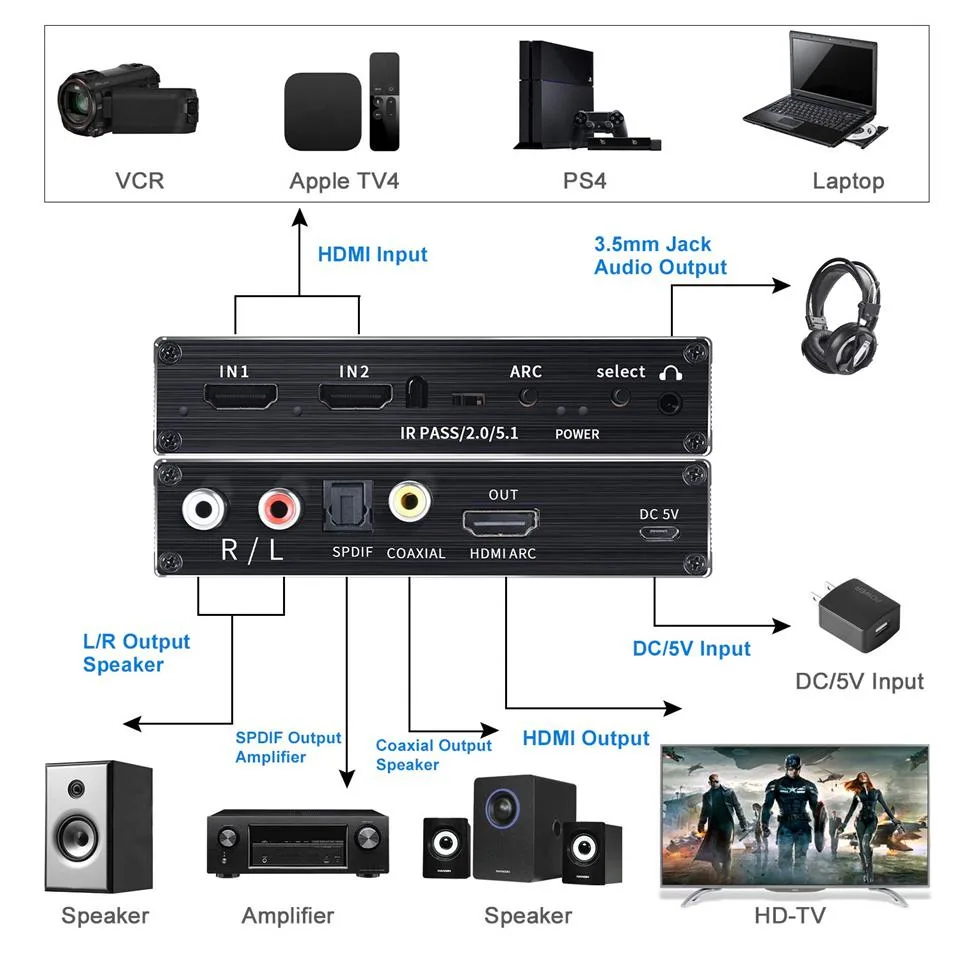

The Jansicotek OZV2 is a 2×1 HDMI 2.0b switch with an integrated audio extractor. It connects two HDMI sources such as a PS4 or Xbox to one display while sending sound to external speakers or an AV receiver via optical Toslink, coaxial, 3.5 mm jack or RCA stereo outputs.

Who It Suits & Who Should Look Elsewhere

Installers who need to route two 4K 60 Hz signals to a single screen and simultaneously extract multichannel audio to a sound system will find the OZV2 fits the requirement. Buyers who need three or more HDMI inputs, or who require HDMI 2.1 bandwidth for 4K at higher refresh rates, should consider a different matrix.

Deciding Specification

The switch passes 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance, and its ARC-enabled HDMI output returns audio from a compatible TV back through the Toslink and coaxial ports.

Highlights

  • Switch two 4K sources to one display with zero signal loss
  • Extract audio via optical, coaxial, RCA or 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • ARC return channel sends TV audio back to your sound system
  • Includes IR remote for convenient input switching from the sofa

Specifications

BrandJansicotek
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

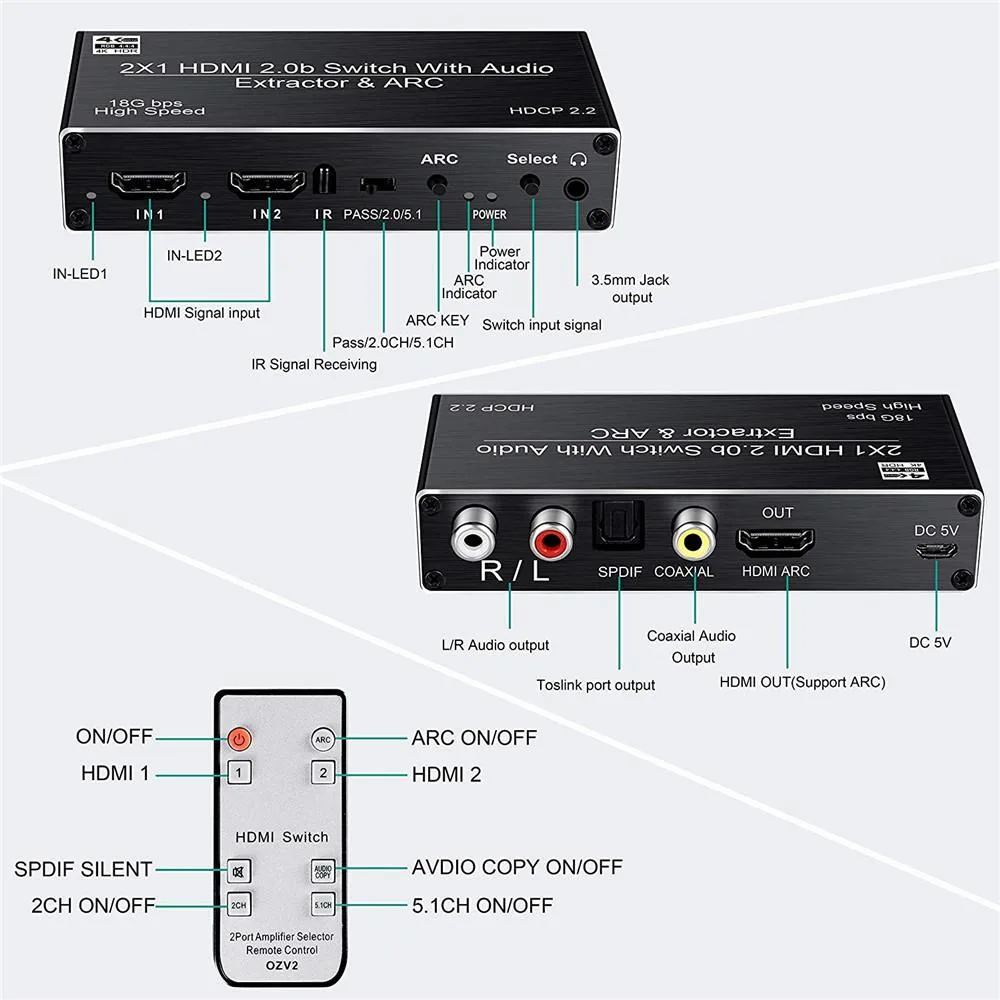

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How much space does the 5.75 x 5.08 x 1.5 inch unit need on a shelf or rack?

The switch measures 5.75 inches wide, 5.08 inches deep and 1.5 inches high, so allow at least that footprint plus a little clearance for the HDMI cables and the 5 V power adapter.

Which button on the IR remote actually changes the active HDMI input?

Press the dedicated input-select button on the remote to toggle between the two HDMI 2.0b sources; a common mistake is pointing the remote at the TV instead of the switch’s front IR window.

When should the 5 V / 1 A DC power adapter be replaced?

Replace the adapter if the unit loses signal lock, the front LED flickers, or audio drops out on the Toslink, coaxial or 3.5 mm outputs while the HDMI cables are known good.
