Black rectangular HDMI switch with multiple audio output ports

Jansicotek

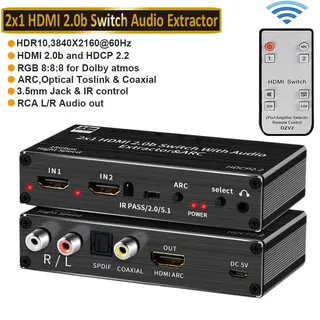

Jansicotek OZV2 2x1 HDMI 2.0b Switch Audio Extractor

SKU CH-87ZQ-Q8NAG

Connects two HDMI sources to one display and extracts audio through optical, coaxial, RCA and 3.5 mm outputs at 4K 60 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Switch two HDMI 2.0 sources to one 4K@60Hz display
  • Extract audio via Toslink, coaxial, 3.5 mm or RCA stereo outputs
  • ARC support on HDMI output and digital audio ports
  • 5 Gbps bandwidth with HDCP 2.2 and HDR10 compliance
  • Includes IR remote, 5 V power supply and user manual

What this switch does

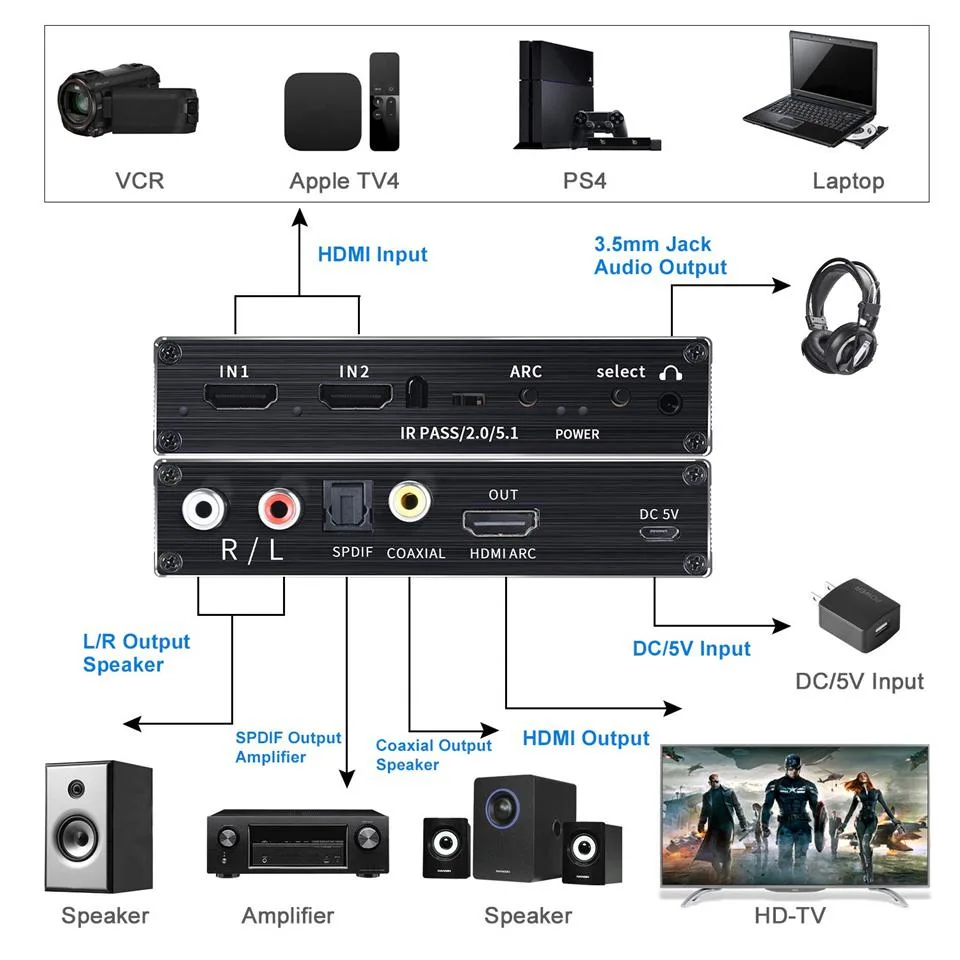

The Jansicotek OZV2 is a 2x1 HDMI 2.0b switch with an integrated audio extractor. It connects two HDMI sources to a single display while splitting the audio signal to optical Toslink, coaxial, 3.5mm jack and stereo RCA outputs. The unit supports 4K resolution at 60 Hz and HDCP 2.2 for protected content playback.

The spec that decides fit

Bandwidth reaches 18.5 Gbps, enabling 3840 x 2160 at 60 Hz with 24-bit RGB or YCbCr 4:4:4 colour. Lower resolutions such as 1080p at 50 or 60 Hz and 4K at 20 or 30 Hz are also supported. If your source demands higher bandwidth or a newer HDMI version, this switch will not pass the signal.

What the bundle changes

A 5 V / 1 A DC power adapter is included, so the switch operates without drawing power from the HDMI ports. An IR remote lets you change inputs from a distance, though a battery is not supplied. The manual completes the package for immediate setup.

Highlights

  • Switch two HDMI 2.0 sources to one 4K@60Hz display
  • Extract audio via Toslink, coaxial, 3.5 mm or RCA stereo outputs
  • ARC support on HDMI output and digital audio ports
  • 5 Gbps bandwidth with HDCP 2.2 and HDR10 compliance
  • Includes IR remote, 5 V power supply and user manual

Specifications

BrandJansicotek
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

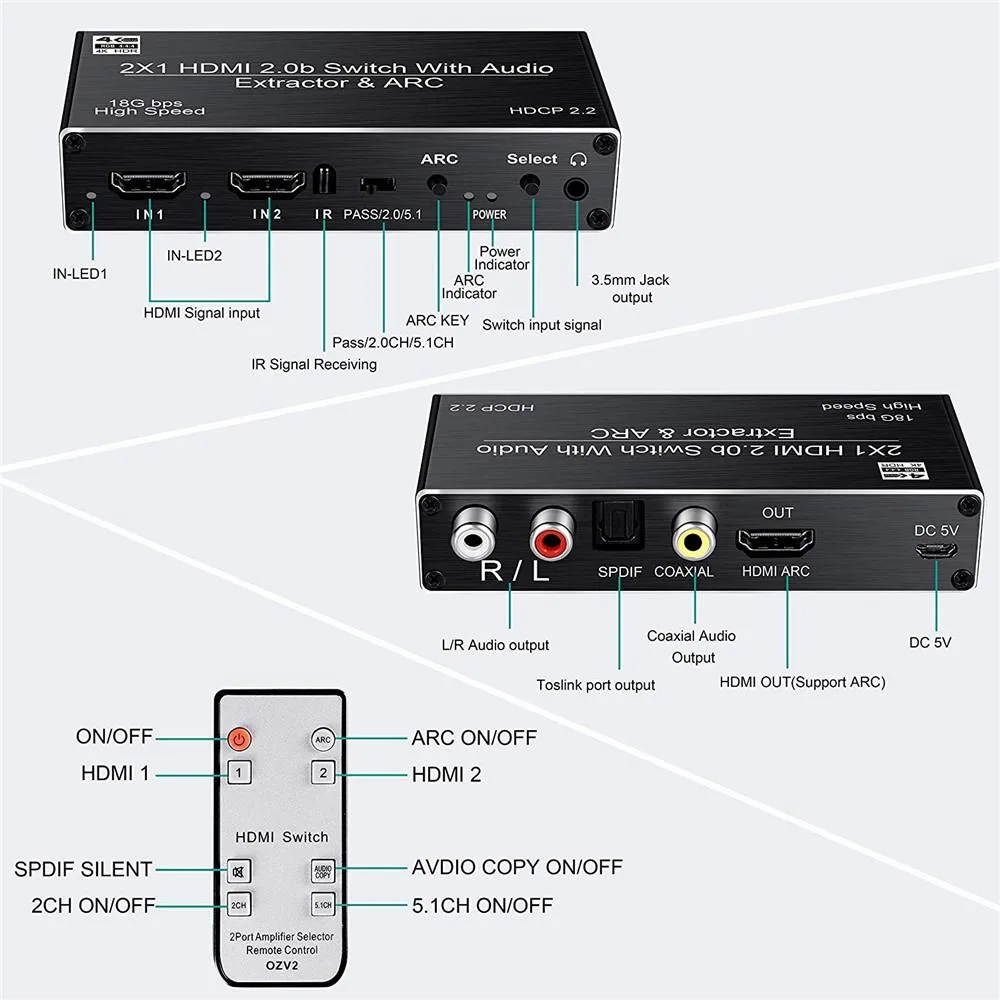

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What does the 18.5 Gbps bandwidth mean for 4K video on this switch?

The 18.5 Gbps bandwidth supports 4K at 60 Hz with RGB 4:4:4 or YCbCr 4:2:2 colour, HDR10, and Deep Color up to 36-bit depth on the HDMI 2.0b inputs and output.

Which HDMI version and HDCP standard does this switch use, and what do they limit?

It uses HDMI 2.0b with HDCP 2.2, capping video at 4K 60 Hz 4:4:4 and protecting premium 4K content; DVI sources are not compatible.

What physical space and connections does this unit need to fit and mount?

The box measures 5.75 by 5.08 by 1.5 inches, weighs 8.8 ounces, and requires a 5 V 1 A DC supply plus two HDMI inputs, one HDMI output, Toslink, coaxial, RCA L/R and 3.5 mm jack cables.
