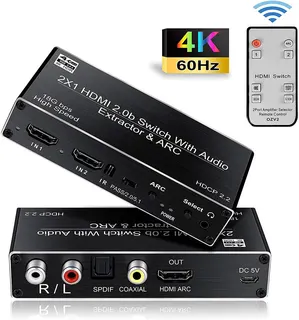

Black rectangular box with multiple ports on front and back, remote control included

Jansicotek

Jansicotek OZV2 2×1 HDMI Switch Audio Extractor 4K@60Hz ARC

SKU CH-TS2E-JYDE3

Switches two HDMI sources to one 4K@60Hz display while extracting audio via optical, coaxial, RCA and 3.5 mm outputs with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Connect two HDMI 2.0 sources to one display with 4K@60Hz
  • Extract audio via Toslink, coaxial, 3.5 mm jack or RCA L/R
  • ARC support on HDMI output and digital audio ports
  • HDCP 2.2 and 18.5 Gbps bandwidth for protected 4K content
  • IR remote included for convenient source switching

Two-source HDMI switch with audio extraction

The Jansicotek OZV2 connects two HDMI 2.0 sources to a single display at up to 3840 x 2160 resolution and 60 Hz. It extracts audio from the active input and provides separate digital and analogue outputs for external sound systems.

Fits between sources and display with external power

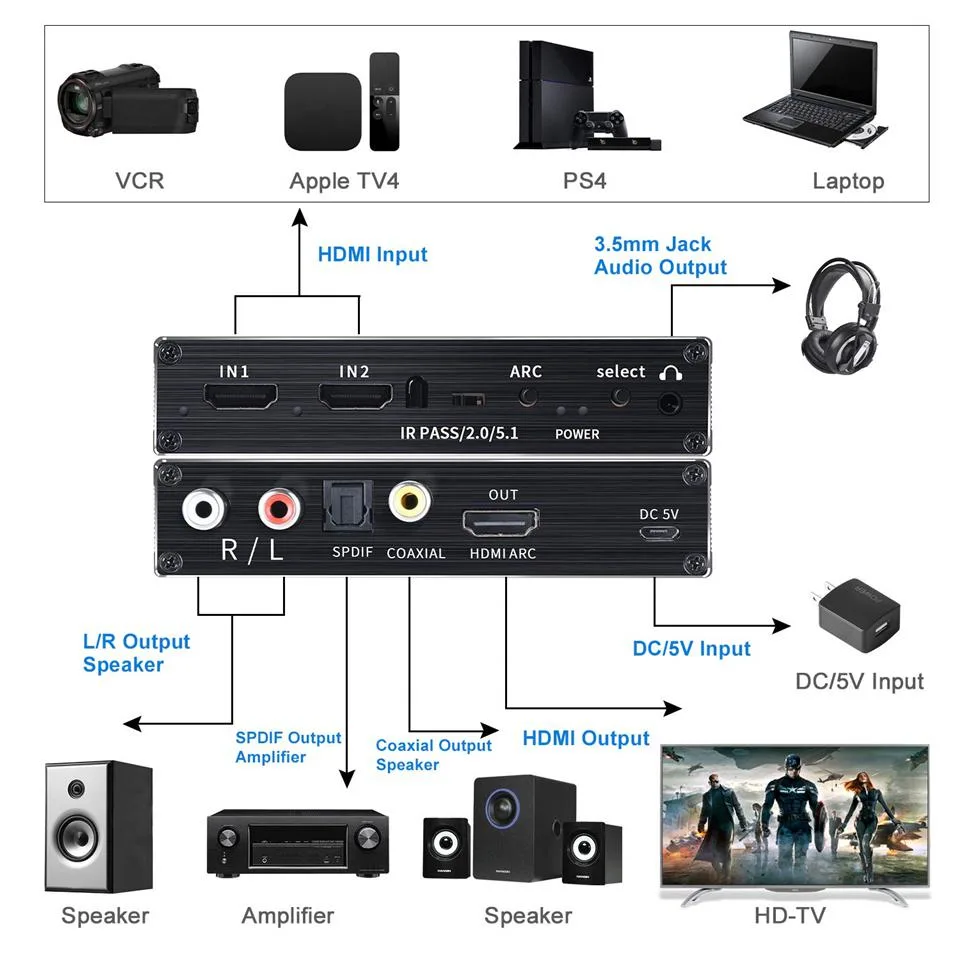

The unit sits inline between two source devices and one screen, requiring the included 5 V 1 A DC adapter for operation. An IR remote allows input switching without reaching behind the installation, and the switch passes CEC commands through the HDMI output.

Bundled remote and power adapter enable immediate

The package supplies the IR remote (battery not included) and a 5 V 1 A power supply so the extractor works out of the box. Optical Toslink, coaxial, 3.5 mm jack and RCA stereo outputs give flexible audio routing for soundbars, AV receivers or powered speakers.

Highlights

  • Connect two HDMI 2.0 sources to one display with 4K@60Hz
  • Extract audio via Toslink, coaxial, 3.5 mm jack or RCA L/R
  • ARC support on HDMI output and digital audio ports
  • HDCP 2.2 and 18.5 Gbps bandwidth for protected 4K content
  • IR remote included for convenient source switching

Specifications

BrandJansicotek
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

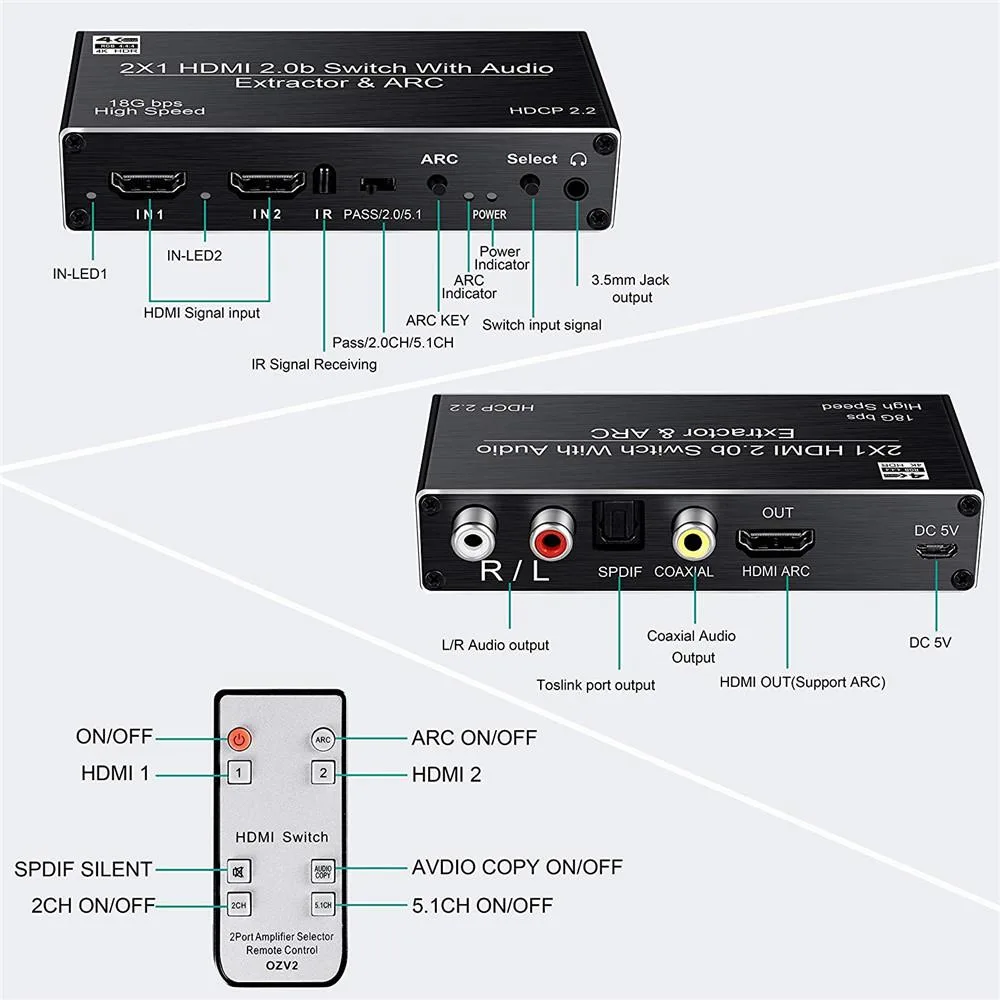

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Does the 18.5 Gbps bandwidth limit 4K 60 Hz HDR content?

The 18.5 Gbps ceiling handles 4K 60 Hz 4:4:4 and HDR10, so HDR metadata passes without compression.

How hot or noisy does the unit get when left on 24/7?

The fanless aluminium case stays warm to the touch but silent; the 5 V 1 A supply draws under 5 watts.

Which cables and power items must I already have to use the switch?

Two HDMI 2.0 source cables, one HDMI 2.0 display cable, and a mains socket for the included 5 V 1 A DC adapter.
