Black metal composite AV switch box with color-coded RCA ports and selection buttons

Jansicotek

Jansicotek OZQV Composite AV Switch 4 in 3 Out

SKU CH-WGSE-B30AS

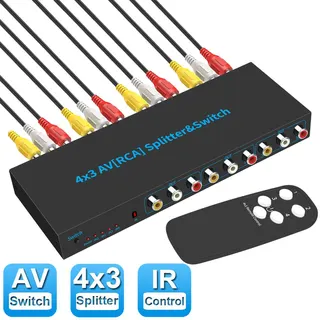

A composite AV switch routes four source devices to three displays with front-panel buttons and an IR remote

  • ColorBlack
  • AudioYes
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions5.91 x 2.36 x 0.79 inches
  • Weight11.9 ounces
  • Connect four composite sources to three displays with one switch
  • Switch inputs instantly using the included IR remote control
  • Pure hardware plug-and-play operation requires no software drivers
  • Metal housing and colour-coded RCA ports provide durable signal routing
  • Compact 5.91 x 2.36 x 0.79 inch unit includes 5V power adapter

4-in-3 Composite AV Switch

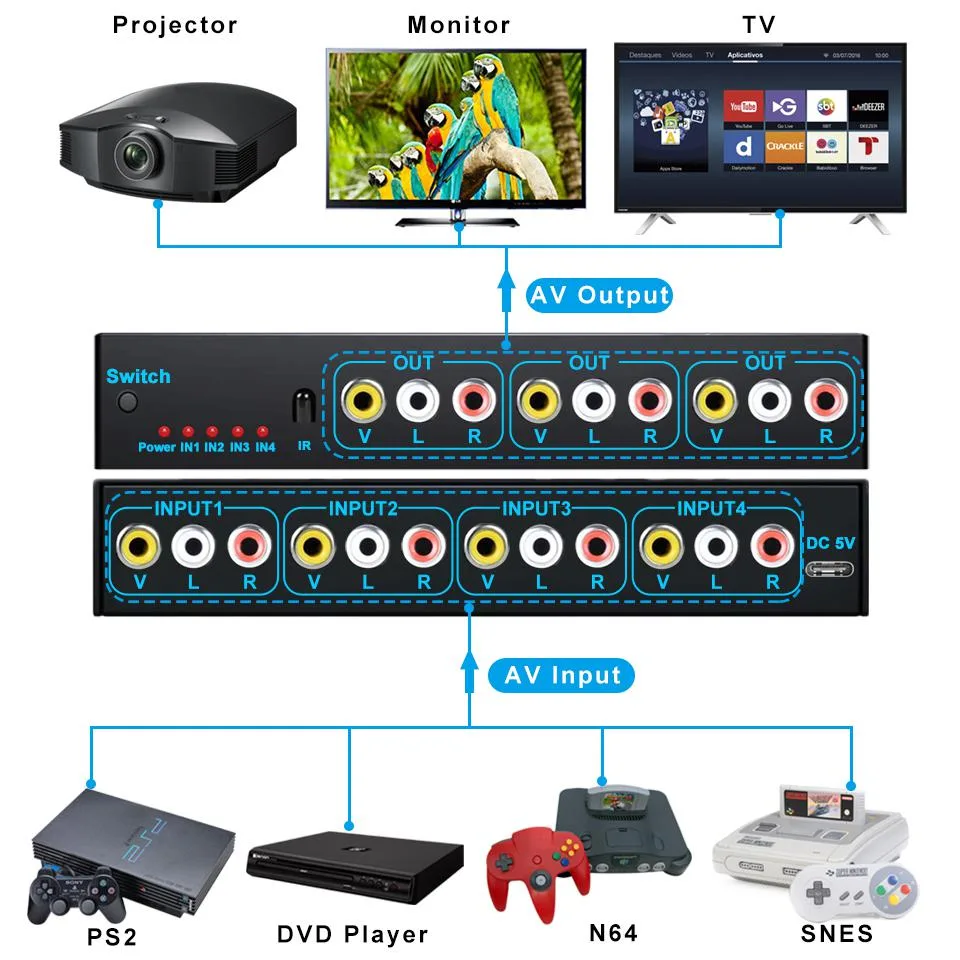

The Jansicotek OZQV routes composite video and stereo audio from four source devices to three separate displays. It suits retro-gaming enthusiasts and home-theatre owners who need to share consoles, DVD players or VCRs across multiple TVs without re-cabling. A metal chassis and colour-coded RCA sockets provide durable, clearly labelled connections. Power comes from an included 5 V 1 A adapter.

4 inputs to 3 outputs, non-matrix

The switch handles four sets of RCA inputs and duplicates the selected source to all three RCA output sets simultaneously. Video signal range is 0.8 to 1.0 V p-p at 75 Ω impedance. Matrix routing — sending different sources to different outputs — is not supported. Selection is made via front-panel buttons or the supplied infrared remote.

Plug-and-play with remote control

No drivers or software are required; the unit operates as pure hardware. The package includes the switch, a 5 V 1 A power adapter, an IR remote (battery not supplied) and a user manual. It frees up TV input ports by consolidating up to four legacy devices into one switch, while feeding up to three displays from that single point.

Highlights

  • Connect four composite sources to three displays with one switch
  • Switch inputs instantly using the included IR remote control
  • Pure hardware plug-and-play operation requires no software drivers
  • Metal housing and colour-coded RCA ports provide durable signal routing
  • Compact 5.91 x 2.36 x 0.79 inch unit includes 5V power adapter

Specifications

BrandJansicotek
SeriesOZQV
ModelOZQV
Part NumberOZQV
ColorBlack
AudioYes
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

How does the 4-in-3-out layout work when I have four source devices and three TVs?

Each of the three outputs mirrors the same selected input, so all connected displays show the identical composite source at once.

What signal levels and impedance does the composite video interface expect?

The switch accepts 0.8-1.0 Vp-p video with a 75 Ohm input impedance and passes it through to each output unchanged.

What are the exact dimensions and weight for planning shelf space?

The metal enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces.
