Black metal box with RCA ports and remote control

Jansicotek

Jansicotek OZQV 4-in-3-out Composite AV Switcher

SKU CH-R5Z0-YWJTB

Routes four composite video and stereo audio sources to three displays with IR remote and front-panel switching

  • ColorBlack
  • AudioYes
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions5.91 x 2.36 x 0.79 inches
  • Weight11.9 ounces
  • Connect four composite sources to three displays simultaneously
  • Switch inputs instantly with included IR remote control
  • Driver-free hardware operation requires no software installation
  • Rugged metal chassis with colour-coded ports for durability
  • Compact 5.91 x 2.36 x 0.79 inch footprint fits tight spaces

Four-input three-output composite switcher

The Jansicotek OZQV routes four composite sources to three displays simultaneously. It handles standard-definition video with left and right audio channels through colour-coded RCA sockets. The unit suits retro consoles, DVD players, VCRs or cameras feeding multiple TVs or capture devices. No matrix mode is supported so every output shows the same selected source.

Passive thermal design and external power

A metal enclosure dissipates heat without fans, keeping operation silent in living-room or studio settings. The included 5 V 1 A adapter supplies all switching logic and signal buffering. Video signals pass at 0.8 to 1.0 volts peak-to-peak into a 75 ohm load, matching standard composite levels.

Build integration and cabling freedom

The switcher measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces, fitting on a shelf or behind equipment racks. Eight RCA cables — four in, three out — connect directly without adapters. A handheld IR remote lets you change sources from the viewing position. Buyers needing independent outputs per display or digital HDMI conversion will need a different class of device.

Highlights

  • Connect four composite sources to three displays simultaneously
  • Switch inputs instantly with included IR remote control
  • Driver-free hardware operation requires no software installation
  • Rugged metal chassis with colour-coded ports for durability
  • Compact 5.91 x 2.36 x 0.79 inch footprint fits tight spaces

Specifications

BrandJansicotek
SeriesOZQV
ModelOZQV
Part NumberOZQV
ColorBlack
AudioYes
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

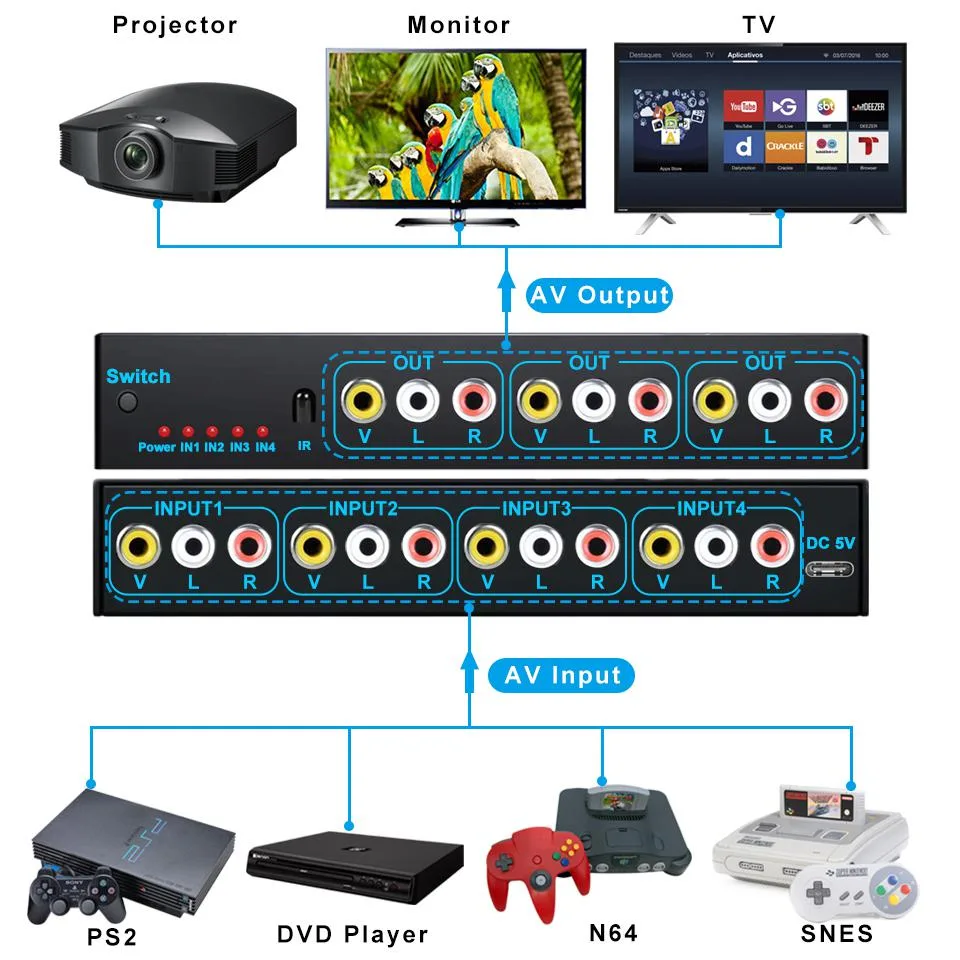

How do I connect the four composite sources and three displays to the OZQV switcher?

Plug each source's yellow, red and white RCA cables into the four input groups, then run three sets of RCA cables from the output groups to each display; the metal chassis colour-coded sockets match the cable colours.

What maintenance will the OZQV switcher need over time?

The IR remote arrives without a battery, so install a coin cell before first use; the 5 V 1 A power adapter may eventually require replacement if the unit loses power.

What video-signal limit appears first during long sessions with the OZQV?

The switcher passes composite video at 0.8-1.0 V p-p into a 75 Ω load, so extended cable runs or weak source signals will hit that voltage floor before any internal thermal limit.
