Black metal box with colour-coded RCA ports and remote

Jansicotek

Jansicotek OZQV 4-in-3-out Composite AV Switch Black

SKU CH-QXKK-6K3ZX

Routes composite video and stereo audio from four sources to three displays with push-button or IR remote selection

  • ColorBlack
  • AudioYes
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions5.91 x 2.36 x 0.79 inches
  • Weight11.9 ounces
  • Connect four source devices to three displays with composite AV switching
  • Switch inputs instantly using the front-panel buttons or the included IR remote
  • Pure hardware plug-and-play operation requires no drivers or software setup
  • Metal housing with colour-coded RCA ports ensures durable, stable connections
  • Compact 5.91 x 2.36 x 0.79 inch unit weighs 11.9 ounces and includes power adapter

Four-in-three composite AV switch

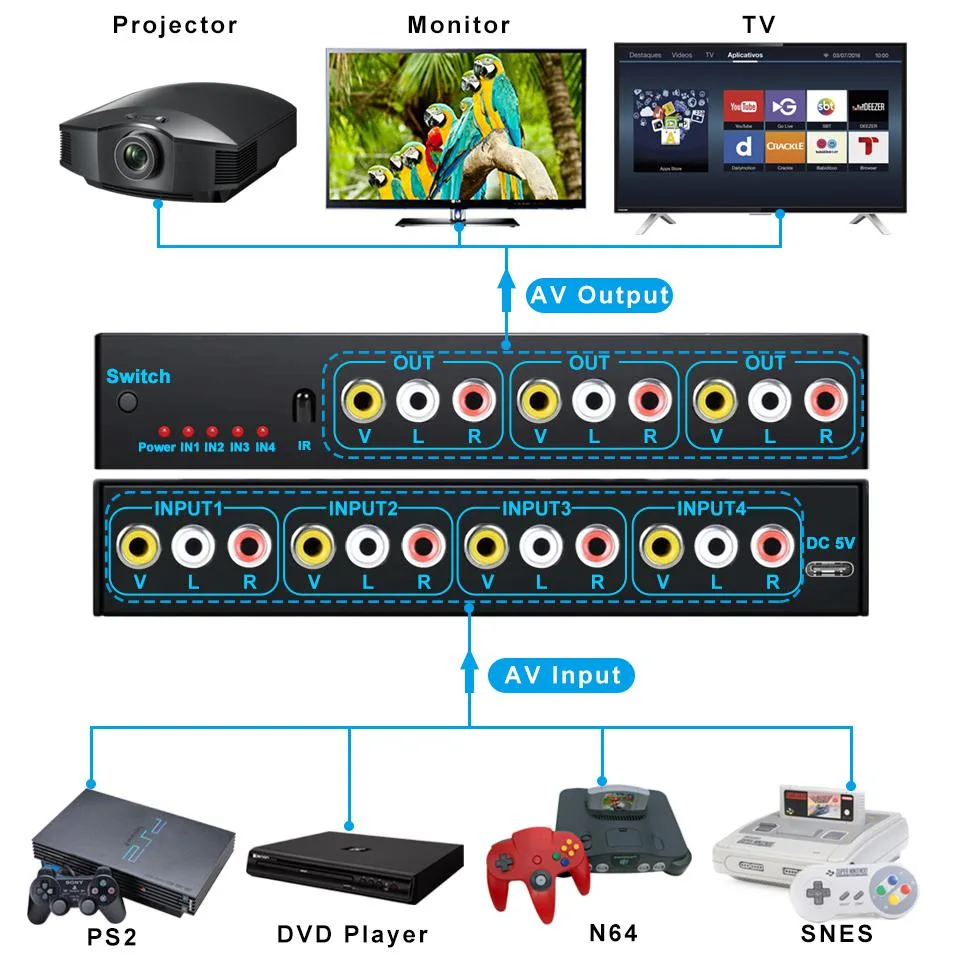

The Jansicotek OZQV routes four composite sources to three displays. It handles video and stereo audio through colour-coded RCA connectors. Retro console owners and multi-room installers can share players without re-cabling. The unit ships with a 5 V power adapter and an infrared remote.

Hardware integration and cabling

A metal chassis measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. Four input sets and three output sets accept standard RCA plugs at 75Ohm impedance. No drivers are required; front-panel buttons or the remote select the active source. The package includes the switcher, manual, power adapter and remote without battery.

Signal behaviour under load

Video signals between .8 and 1.0 volts p-p pass through the purely hardware path without software latency. The design does not support matrix routing, so each output mirrors the same chosen input. Metal shielding and gold-plated contacts maintain stable picture quality during extended sessions.

Highlights

  • Connect four source devices to three displays with composite AV switching
  • Switch inputs instantly using the front-panel buttons or the included IR remote
  • Pure hardware plug-and-play operation requires no drivers or software setup
  • Metal housing with colour-coded RCA ports ensures durable, stable connections
  • Compact 5.91 x 2.36 x 0.79 inch unit weighs 11.9 ounces and includes power adapter

Specifications

BrandJansicotek
SeriesOZQV
ModelOZQV
Part NumberOZQV
ColorBlack
AudioYes
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

Does the 75 Ohm input impedance limit how many sources I can run simultaneously?

The switch handles four inputs at 0.8 to 1.0 volts peak-to-peak with 75 Ohm impedance; only one source is active per output at a time, so the impedance does not restrict the number of connected devices.

How much heat or noise does the metal housing produce during all-day use?

The unit is a passive hardware switch with no fan; the metal chassis dissipates the small amount of heat from the 5 V 1 A adapter silently.

Which cables and power items must I already have to connect four sources to three displays?

You need composite RCA cables for each source and each display, plus the included 5 V 1 A adapter; the remote requires a button-cell battery not supplied.
