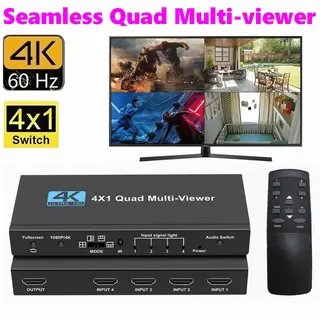

Black rectangular HDMI switch box, four inputs one output, IR remote included

Jansicotek

Jansicotek OZQF 4x1 HDMI Multi-Viewer Switch

SKU CH-KECN-D4TR7

Combines four HDMI sources on one screen with five split-view modes and seamless full-screen switching up to 4K resolution

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • AudioYes
  • SpecificationsSupport 4 HDMI input, 1 HDMI output Support 4 HDMI signal sc
  • View four sources at once with five layout modes
  • Switch instantly between inputs with no delay on full screen
  • Output up to 4096 x 2160 resolution at 30 Hz

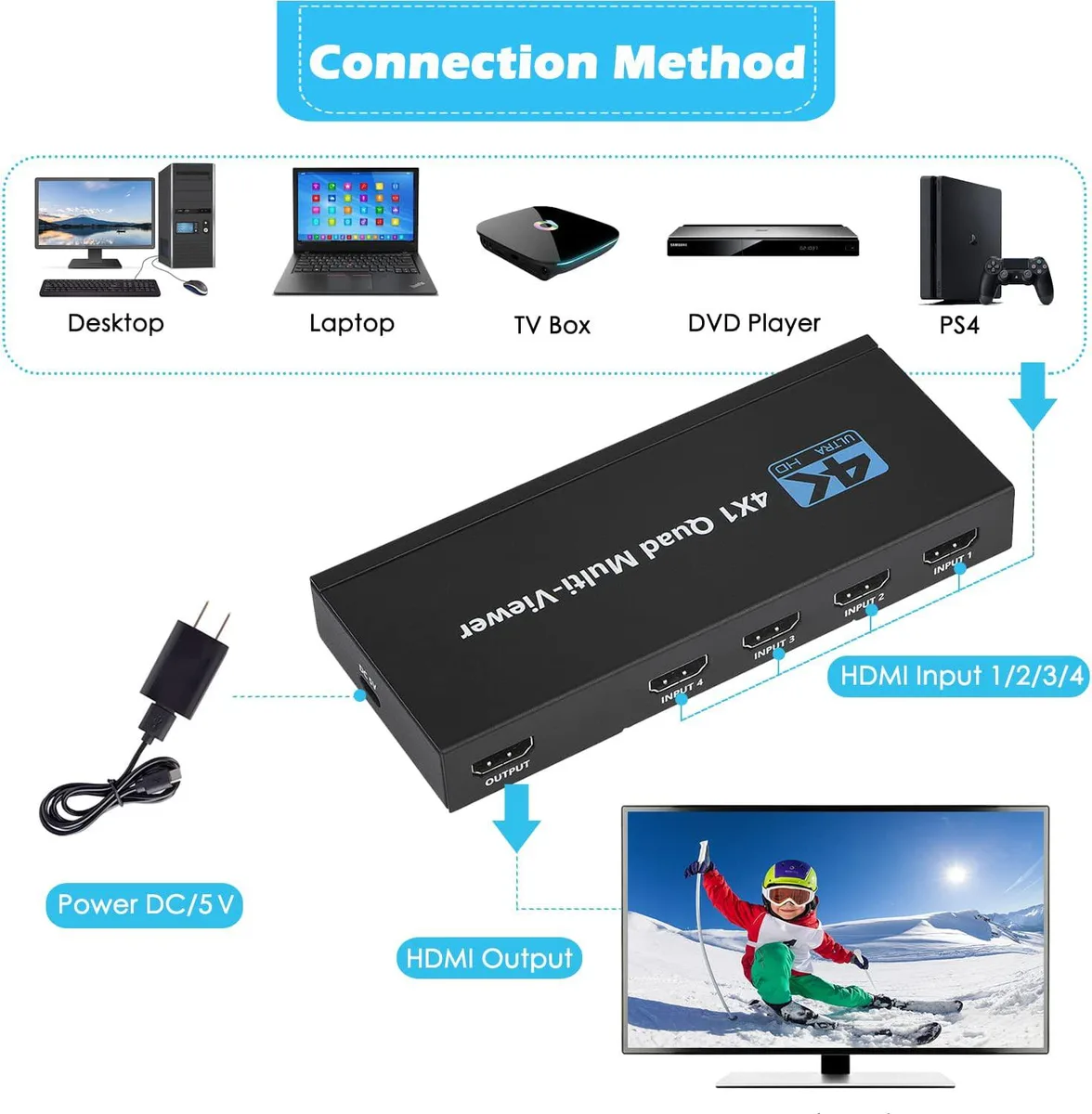

  • Works with consoles, PCs, cameras and streaming devices
  • Control everything from the sofa using the IR remote

Four-input HDMI multiviewer

The Jansicotek OZQF accepts four HDMI 1.4 sources and sends one HDMI 1.4 signal to a display. It is built for installers, security operators or enthusiasts who need to monitor several cameras, consoles or PCs on a single screen.

IR remote and scaler change daily use

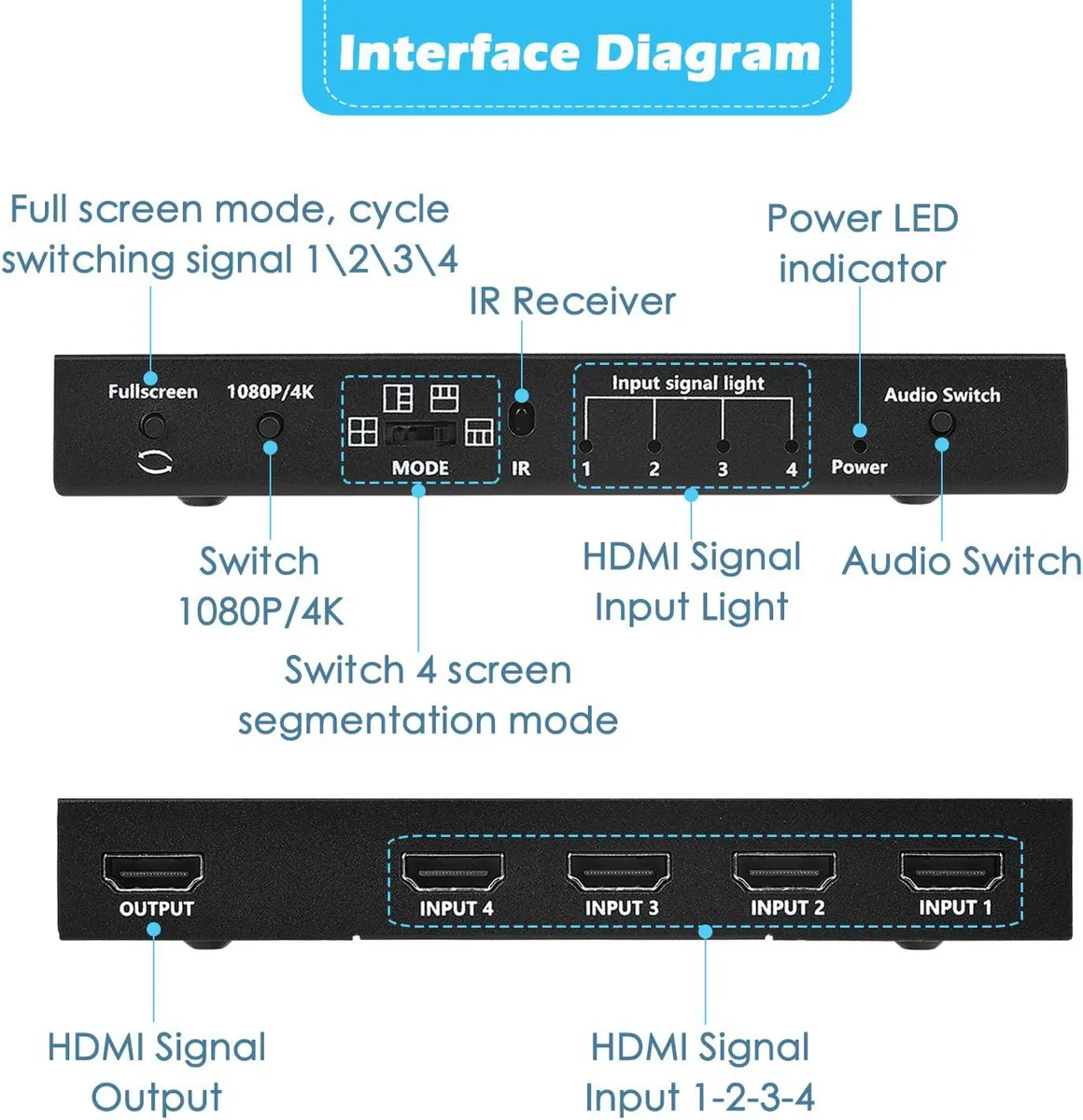

The bundled IR remote lets users cycle through five layout modes — plus, H, I, full-screen and one-large-three-small — without reaching the unit. An internal scaler converts 720p, 1080p or 4K inputs to match the chosen output resolution, so mixed-resolution sources appear correctly.

HDMI 1.4 bandwidth caps the pipeline

Both inputs and the output are limited to the HDMI 1.4 interface, so the maximum timed resolution is 4096 x 2160 at 30 Hz. Full 4K at 60 Hz cannot pass through this switch, and HDCP 1.4 is the highest content-protection version supported.

Highlights

  • View four sources at once with five layout modes
  • Switch instantly between inputs with no delay on full screen
  • Output up to 4096 x 2160 resolution at 30 Hz
  • Works with consoles, PCs, cameras and streaming devices
  • Control everything from the sofa using the IR remote

Specifications

BrandJansicotek
SeriesOZQF
ModelOZQF
Part NumberOZQF
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
AudioYes
SpecificationsSupport 4 HDMI input, 1 HDMI output
Support 4 HDMI signal screen split
Support seamless switching of 4 HDMI signals
Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution
4K60Hz (YUV) (forced output on output device), 4K30Hz (RGB) and backward compatible.
Support HDMI1.4, HDCP1.4 and backward compatible
HDMI input and output transmission distance: high-speed HDMI cable can reach 15M. (HDMIcable 19 + 1, AW28)
Support infrared control
Power supply: DC5V2A
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions4096 x 2160
Features5 Viewing Modes: This HDMI multiviewer is specifically designed to display multiple HDMI input sources on 1 output screen. There are five viewing modes, including “+” type, “H” type, “I” type, Full screen and 1 big 3 small mode, also support cycle interval, picture can be looped under full screen mode.
4 port Seamless Switch: Under full screen mode, This HDMI multiviewer supports seamless switching between four HDMI input sources, no point in waiting 5-8s for switching.
4K@30Hz Resolutions: Supports up to 4K@30Hz high definition resolution with 720P/1080p/4k scaler up and down functi
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

Does the DC power adapter ever need replacing?

The unit ships with a DC power adapter; if it fails the switch will not power on, so keep the original or source a matching replacement.

Which resolution limit appears first when all four inputs run continuously?

The HDMI 1.4 ports cap each input at 4K@30Hz, so sustained quad-source use tops out at 30 frames per second per window.

How warm does the chassis get during all-day operation?

The aluminium case runs warm but stays within normal operating temperature; no fan is fitted, so ensure ventilation around the 8.39 x 3.94 x 0.98 inch enclosure.
