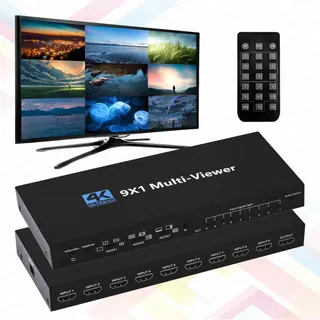

Black rectangular HDMI multiviewer with nine input ports and one output port

Jansicotek

Jansicotek OZQF-1 9x1 HDMI Multiviewer Switch

SKU CH-TX2N-9CRJ6

Shows nine HDMI sources on one screen with seamless switching and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports9
  • AudioYes
  • Specifications9x1 HDMI Seamless Multiviewer Support 9 HDMI input, 1 HDMI o
  • Display nine sources simultaneously with 9-channel screen segmentation
  • Switch between inputs instantly via seamless 9x1 HDMI switching
  • Connect up to nine devices using nine HDMI input ports
  • Control the unit conveniently with IR remote and front-panel buttons
  • Supports video up to 4096 x 2160 resolution at 30 Hz

Nine-Input HDMI Multiviewer

The Jansicotek OZQF-1 is a 9x1 HDMI multiviewer switch that accepts nine HDMI sources and routes them to a single display. It supports HDMI 1.4 and HDCP 1.4 with a maximum resolution of 4096 x 2160. The unit provides ten viewing modes for simultaneous screen segmentation or seamless switching between inputs. It suits installers managing multiple PCs, set-top boxes, or media players in meeting halls and project environments.

Button and IR Control Setup

The switch includes front-panel buttons and an IR remote for input selection and mode changes. A DC power adapter is supplied in the box. Installation requires only connecting source devices and the display via HDMI cables. The main limitation is the HDMI 1.4 bandwidth, which restricts 4K signals to 30 Hz while 1080p reaches 60 Hz. No software drivers or network configuration are needed for basic operation.

4K30 and 1080p60 Headroom

The device handles nine 1080p sources at 60 Hz or nine 4K sources at 30 Hz across its ten display layouts. It runs out of headroom for 4K content above 30 Hz or for any signal requiring HDMI 2.0 features such as HDR or higher colour depths. Users needing 4K60 on all nine inputs simultaneously should look elsewhere. The single output mirrors the chosen layout without independent scaling per window.

Highlights

  • Display nine sources simultaneously with 9-channel screen segmentation
  • Switch between inputs instantly via seamless 9x1 HDMI switching
  • Connect up to nine devices using nine HDMI input ports
  • Control the unit conveniently with IR remote and front-panel buttons
  • Supports video up to 4096 x 2160 resolution at 30 Hz

Specifications

BrandJansicotek
SeriesOZQF-1
ModelOZQF-1
Part NumberOZQF-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports9
AudioYes
Specifications9x1 HDMI Seamless Multiviewer
Support 9 HDMI input, 1 HDMI output;
Support HDMI 1.4 and HDCP 1.4
Support 9 channels HDMI signal screen segmentation;
Support 9 channels HDMI signal seamless switching;
Support resolution up to 4K@30Hz/1080@60Hz;
Support IR control and Panel control;
Input Connector9 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4096 x 2160
Features4K HDMI 9x1 Multi-viewer is a high performance with nine HD screen segmentation and seamless switching output switch. It can display 9 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 9 HD input signal synchronously.
?

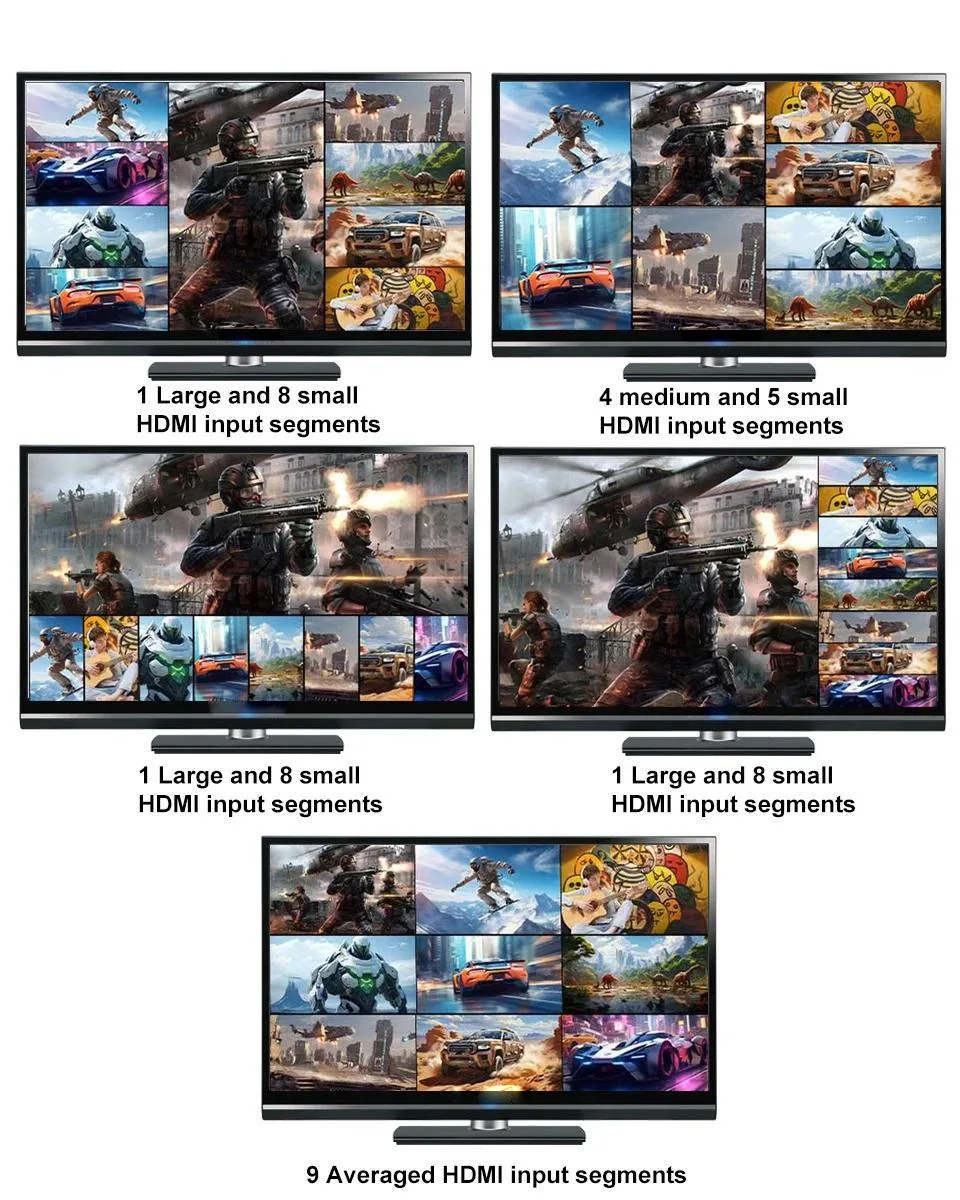

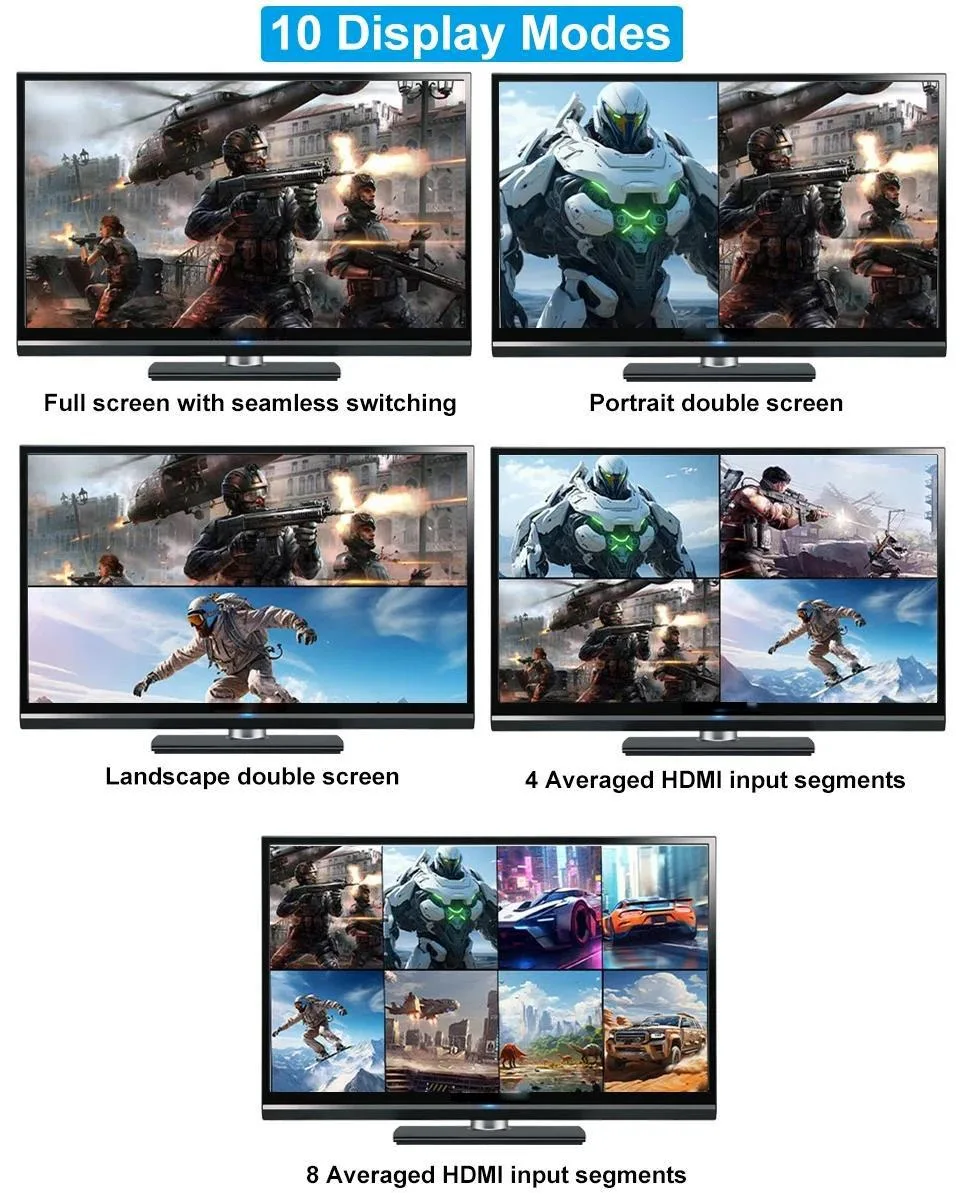

10 Ways Viewing Screen:9X1 Nine MultiView Selector support 10 viewing modes. You could see 9 HDMI input sources screen on one monitor by 10 ways, also can only see only one HDMI input source by full screen;
?
Max up to 4K 30Hz Resolution: HDMI Multiple display Switch box support 3840x2160@30Hz, 1080P@60Hz,1080i,720
Dimensions8.39 x 3.99 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

How can I verify the OZQF-1 is switching all nine inputs seamlessly after setup?

Connect up to nine sources to the HDMI inputs, select a multi-view mode via the front panel or IR remote, and confirm all active signals appear simultaneously on the single HDMI output without interruption.

What accessories are included with the OZQF-1 and what must I provide separately?

The box contains the multiviewer unit, an IR remote control, a DC power adapter, and a user manual; you must supply all nine HDMI cables for the inputs and one HDMI cable for the output display.

Which resolution setting should I choose for the OZQF-1 when my display handles 4K at 30 Hz and 1080p at 60 Hz?

Set sources to 4096 x 2160 at 30 Hz for maximum detail or 1080p at 60 Hz for smoother motion; the switch supports both through its HDMI 1.4 and HDCP 1.4 implementation.
