Black rectangular HDMI multi-viewer with nine inputs and one output, IR remote included

Jansicotek

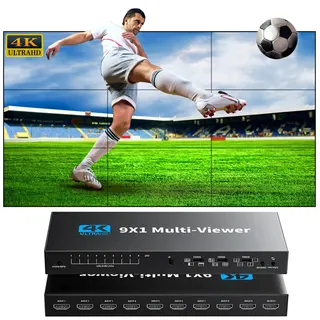

Jansicotek OZQF-1 9x1 HDMI Multi-viewer Video Switch 4K@30Hz

SKU CH-MW26-F10DQ

A 9-input HDMI multi-viewer showing up to ten screen layouts on one 4K@30 Hz display with seamless switching via IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports9
  • AudioYes
  • Specifications9x1 HDMI Seamless Multiviewer Support 9 HDMI input, 1 HDMI o
  • Displays nine sources simultaneously with ten viewing modes
  • Seamless switching across nine HDMI inputs without signal loss
  • Supports 4K resolution at 30 Hz and 1080p at 60 Hz
  • IR remote and front-panel buttons give flexible control
  • Compact 8.39 x 3.99 x 0.98 inch enclosure fits any setup

9x1 HDMI Multi-viewer Switch

The Jansicotek OZQF-1 accepts nine HDMI sources and routes them to a single display. It supports HDMI 1.4 and HDCP 1.4 with a maximum bandwidth of 10.2Gbps. Control is handled via front-panel buttons or the included IR remote. The unit ships with a DC power adapter and user manual.

Replaces Manual Cable Swapping

Instead of unplugging cables to change sources, this switch lets you select any of the nine inputs instantly. The jump is worth it when you operate multiple consoles, streamers or security cameras on one monitor. It eliminates wear on display ports and reduces desk clutter from repeated reconnection.

Nine Simultaneous Feeds at 4K@30Hz

The multi-viewer displays all nine inputs at once across ten selectable screen layouts. Maximum output resolution reaches 4096 x 2160 at 30Hz, with support for 1080p at 60Hz and lower formats down to 480i. Colour depth covers 24, 30 and 36-bit. It runs out of headroom above 30Hz at 4K and does not support higher refresh rates or HDMI 2.0 features.

Highlights

  • Displays nine sources simultaneously with ten viewing modes
  • Seamless switching across nine HDMI inputs without signal loss
  • Supports 4K resolution at 30 Hz and 1080p at 60 Hz
  • IR remote and front-panel buttons give flexible control
  • Compact 8.39 x 3.99 x 0.98 inch enclosure fits any setup

Specifications

BrandJansicotek
SeriesOZQF-1
ModelOZQF-1
Part NumberOZQF-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports9
AudioYes
Specifications9x1 HDMI Seamless Multiviewer
Support 9 HDMI input, 1 HDMI output;
Support HDMI 1.4 and HDCP 1.4
Support 9 channels HDMI signal screen segmentation;
Support 9 channels HDMI signal seamless switching;
Support resolution up to 4K@30Hz/1080@60Hz;
Support IR control and Panel control;
Input Connector9 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4096 x 2160
Features4K HDMI 9x1 Multi-viewer is a high performance with nine HD screen segmentation and seamless switching output switch. It can display 9 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 9 HD input signal synchronously.
?

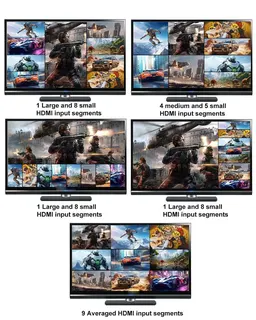

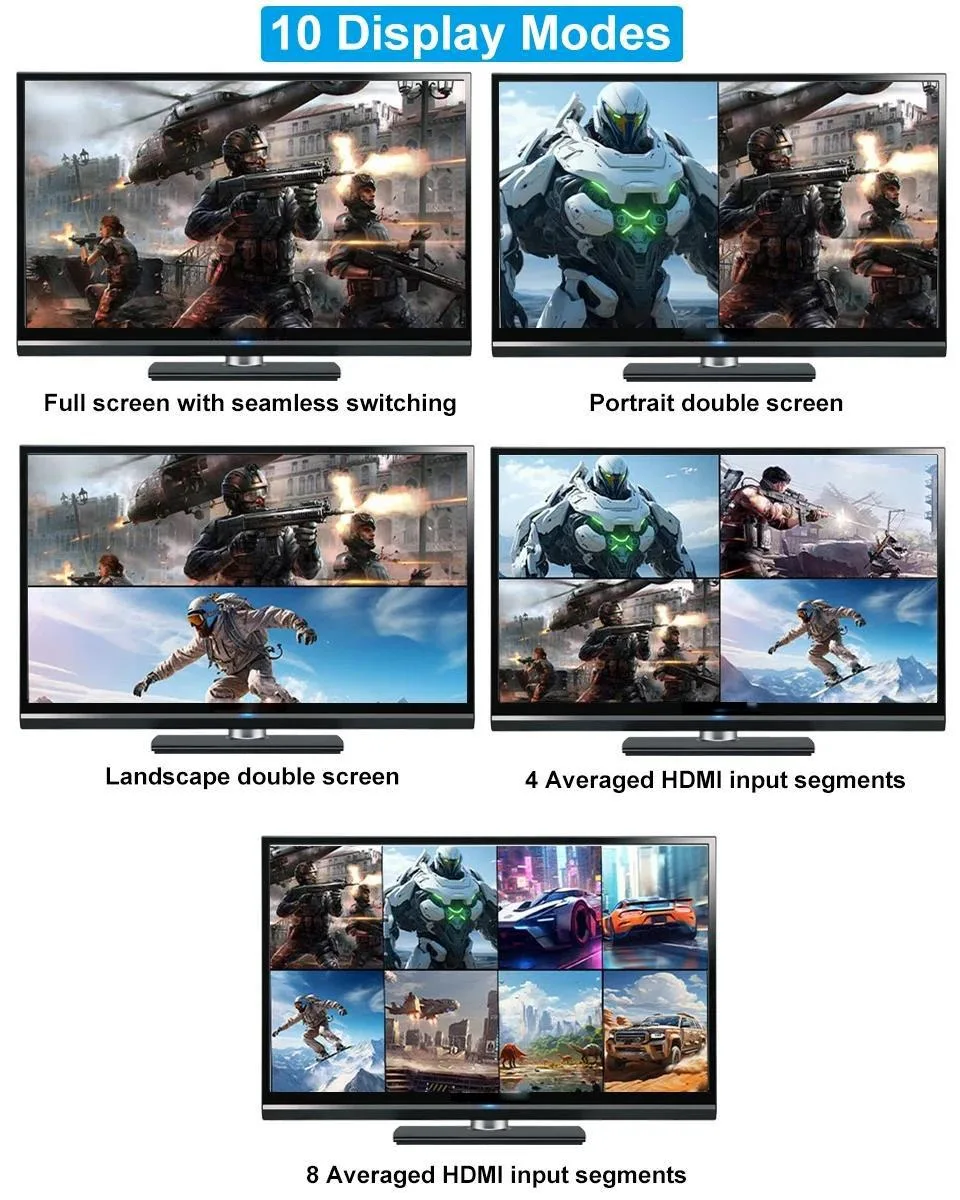

10 Ways Viewing Screen:9X1 Nine MultiView Selector support 10 viewing modes. You could see 9 HDMI input sources screen on one monitor by 10 ways, also can only see only one HDMI input source by full screen;
?
Max up to 4K 30Hz Resolution: HDMI Multiple display Switch box support 3840x2160@30Hz, 1080P@60Hz,1080i,720
Dimensions8.39 x 3.99 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

What are the exact dimensions of the 9x1 multiviewer so I can confirm it fits my rack shelf?

The unit measures 8.39 inches wide by 3.99 inches deep by 0.98 inches high and weighs 0.85 pounds, so check your shelf clearance against those figures.

How do I switch between the nine HDMI inputs, and what is the step users most often miss?

Press the front-panel button or use the included IR remote to cycle through the 10 viewing modes; the step often missed is ensuring the IR sensor on the front panel has a clear line of sight to the remote.

The DC power adapter is included — does it need any periodic replacement or maintenance?

The external DC adapter powers the switch; no scheduled maintenance is required, but replace the adapter only if the unit fails to power on or shows unstable video across all nine inputs.
