Jansicotek

Jansicotek OZQD 8K DisplayPort Bi-Directional Switch Splitter 2 Port DP 1.4 8K@30Hz 4K@144Hz

SKU CH-G37A-VP0RE

Bi-directional DisplayPort 1.4 switch connects two sources to one display or one source to two displays at up to 8K@30Hz, 4K@144Hz or 1080p@240Hz with 32.4Gbps bandwidth

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications1. 8K DP 1.4 Switch: Support 8K@30Hz,4K@120Hz,1080P@240Hz re
  • Bi-directional operation lets one source drive two displays or two sources share one display
  • 8K at 30 Hz and 4K at 120 Hz supported with 32.4 Gbps bandwidth
  • 1080p at 240 Hz available for high-refresh gaming
  • Front-panel button provides instant switching between connected devices
  • USB-C power port keeps the switch running reliably

Bi-Directional DisplayPort Switch

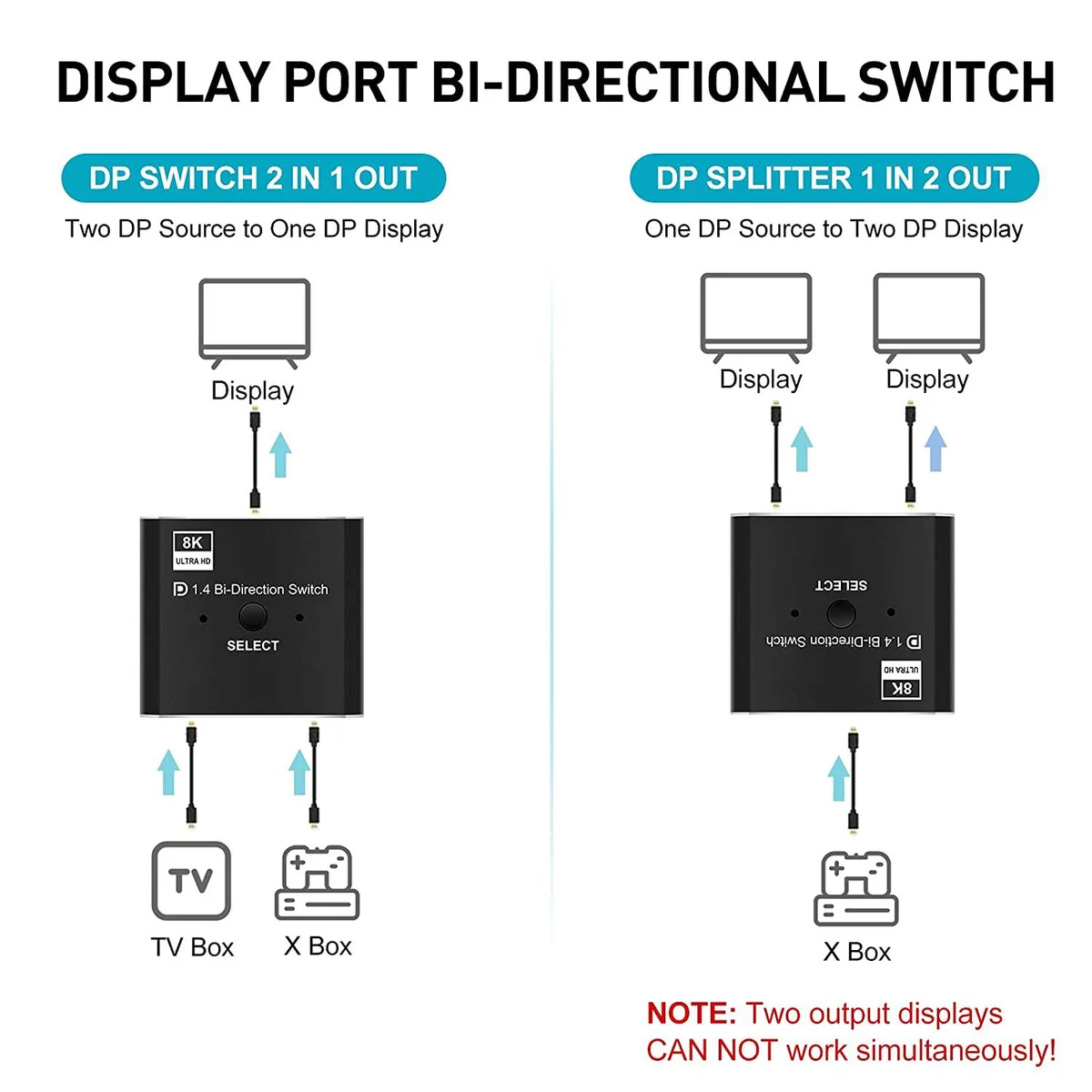

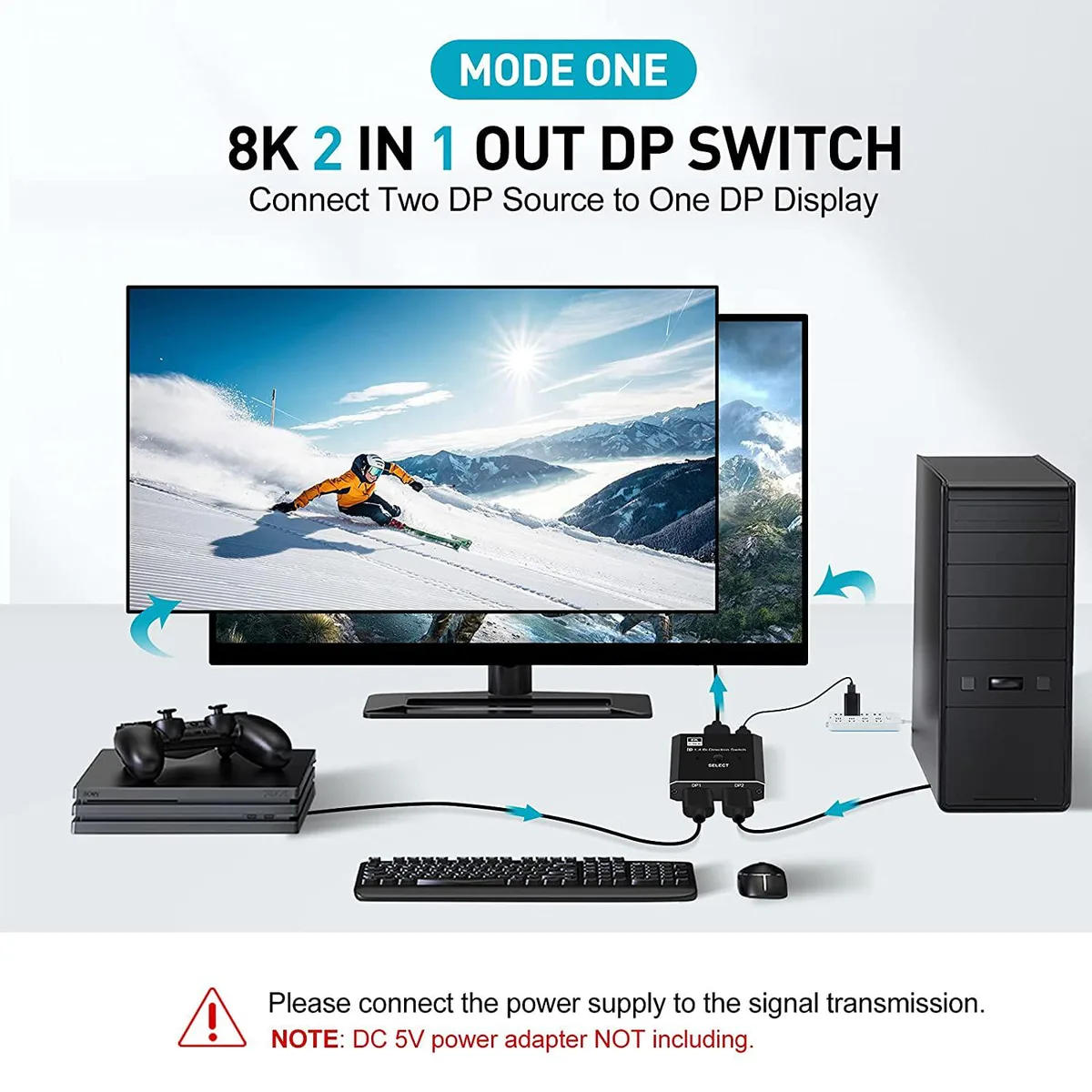

This Jansicotek OZQD unit acts as a bi-directional DisplayPort 1.4 switch, letting you connect two sources to one display or one source to two displays. Only one output is active at a time, so both screens cannot show content simultaneously. It suits users who need to toggle between a PC and a laptop on a single monitor or send a desktop signal to either a monitor or a projector.

Manual Button And USB-C Power

A single press of the front button changes the active path, and an LED shows which port is live. The aluminium-coloured black enclosure measures 5.31 x 3.11 x .87 inches and weighs 2.12 ounces, so it sits neatly on a desk without blocking adjacent ports. A USB-C power cable is included to ensure stable operation with high-bandwidth signals.

Check Cable Lengths And Source Capability

Verify that your DisplayPort cables are certified for the bandwidth you need, because the switch passes through up to 32.4 Gbps without amplification. The box notes that Valve Index VR headsets and Xbox consoles are not supported, so owners of those devices should look elsewhere. Both source devices must output a compatible DisplayPort signal for the switch to function.

Highlights

  • Bi-directional operation lets one source drive two displays or two sources share one display
  • 8K at 30 Hz and 4K at 120 Hz supported with 32.4 Gbps bandwidth
  • 1080p at 240 Hz available for high-refresh gaming
  • Front-panel button provides instant switching between connected devices
  • USB-C power port keeps the switch running reliably

Specifications

BrandJansicotek
SeriesOZQD
ModelOZQD
Part NumberOZQD
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications1. 8K DP 1.4 Switch: Support 8K@30Hz,4K@120Hz,1080P@240Hz resolution, provide you with transfer rates up to 32.4Gbps and backward compatible with all previous DP standards.
2: The DisplayPort switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays.
3. External power required, the DP selector box is easy to setup and operate. Note: While using, press "select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously.
4. This disp
Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Connector StyleFemale
Maximum Resolutions8K@30Hz, 4K@120Hz, 1080P@240Hz
Bandwidth32.4Gbps
Features1.Bi-Direction DP Switch: The DisplayPort switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays. (Two displays CANNOT display simultaneously, Press "Select" button to switch between two displays.)
2.Displayport Splitter: Support 8K@30Hz,4K@120Hz,1080P@240Hz resolution, provide you with transfer rates up to 32.4Gbps and backward compatible with all previous DP standards. (You need connect standard DP 1.4 cable to enjoy visual effects.)
3.High Speed: This DP switch provides bandwidth data transmission up to 32.4Gb
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1x Bi-Direction DP Switch, Power Charging Cable x1, User Manual x1.

Questions about this item

What resolutions does the DP 1.4 switch actually support?

The switch handles 8K at 30 Hz, 4K at 120 Hz, and 1080p at 240 Hz over its 32.4 Gbps link.

How much desk space does the OZQD unit occupy?

It measures 5.31 by 3.11 by 0.87 inches and weighs 2.12 ounces, so it fits behind most monitors.

How do I power the switch and avoid a blank screen?

Plug the included USB-C power cable into a 5 V source before connecting sources; the LED shows the active port.
