Black rectangular HDMI switch with four inputs and multiple audio outputs

Jansicotek

Jansicotek OZQ9 4K 60Hz 4x1 HDMI Switch Audio Extractor ARC

SKU CH-A1NN-MBCHH

Connects four HDMI sources to one display at 4K 60 Hz and extracts audio via ARC, optical, coaxial or 3.5 mm jack

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI

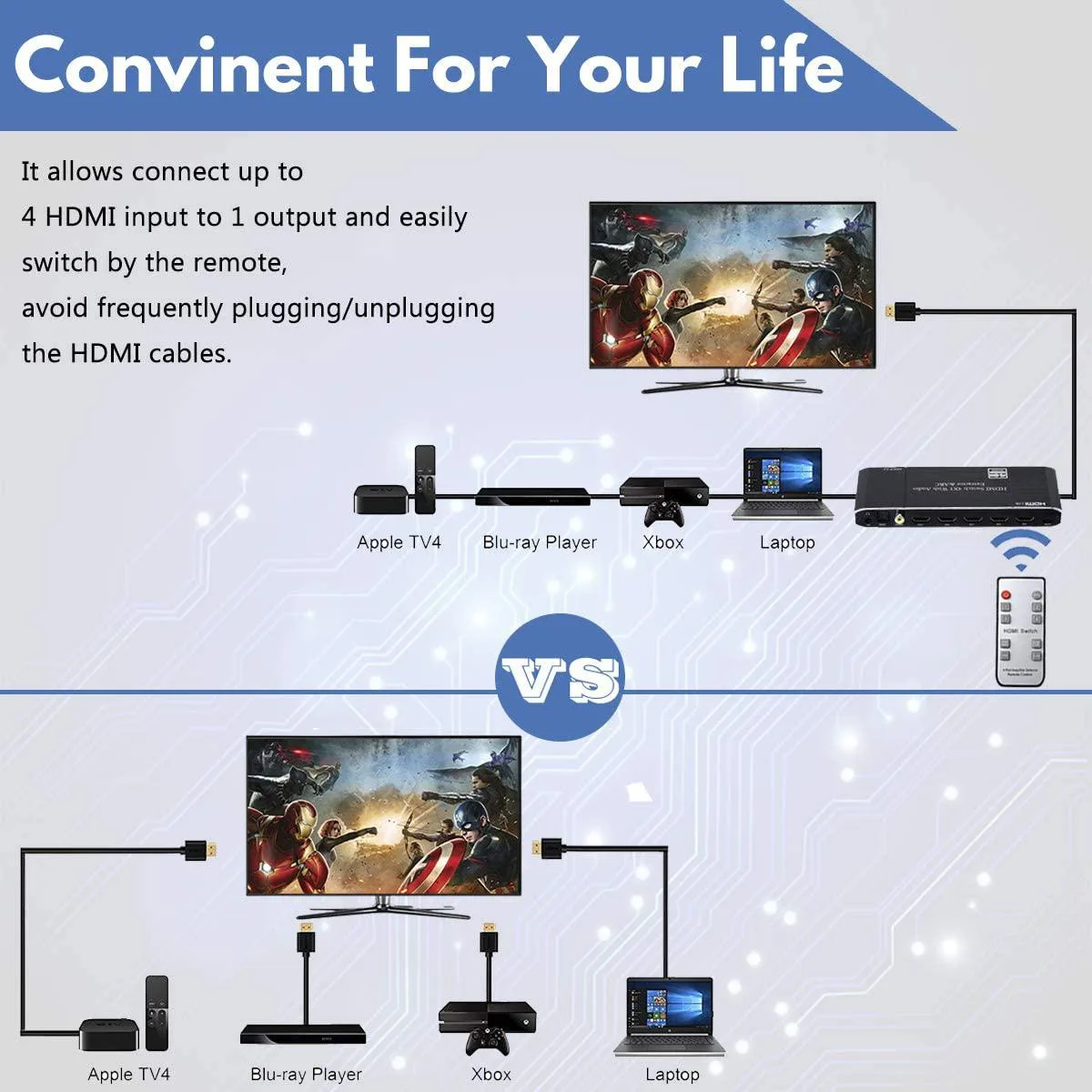

  • Connect four sources to one display with 4K 60 Hz clarity
  • Extract audio via Toslink, coaxial or 3.5 mm jack for external speakers
  • ARC support returns TV sound through the HDMI output to your receiver
  • 5 Gbps bandwidth handles HDR10 and deep-colour 4K content
  • IR remote included for convenient switching from the sofa

Four-port HDMI switch with audio extraction

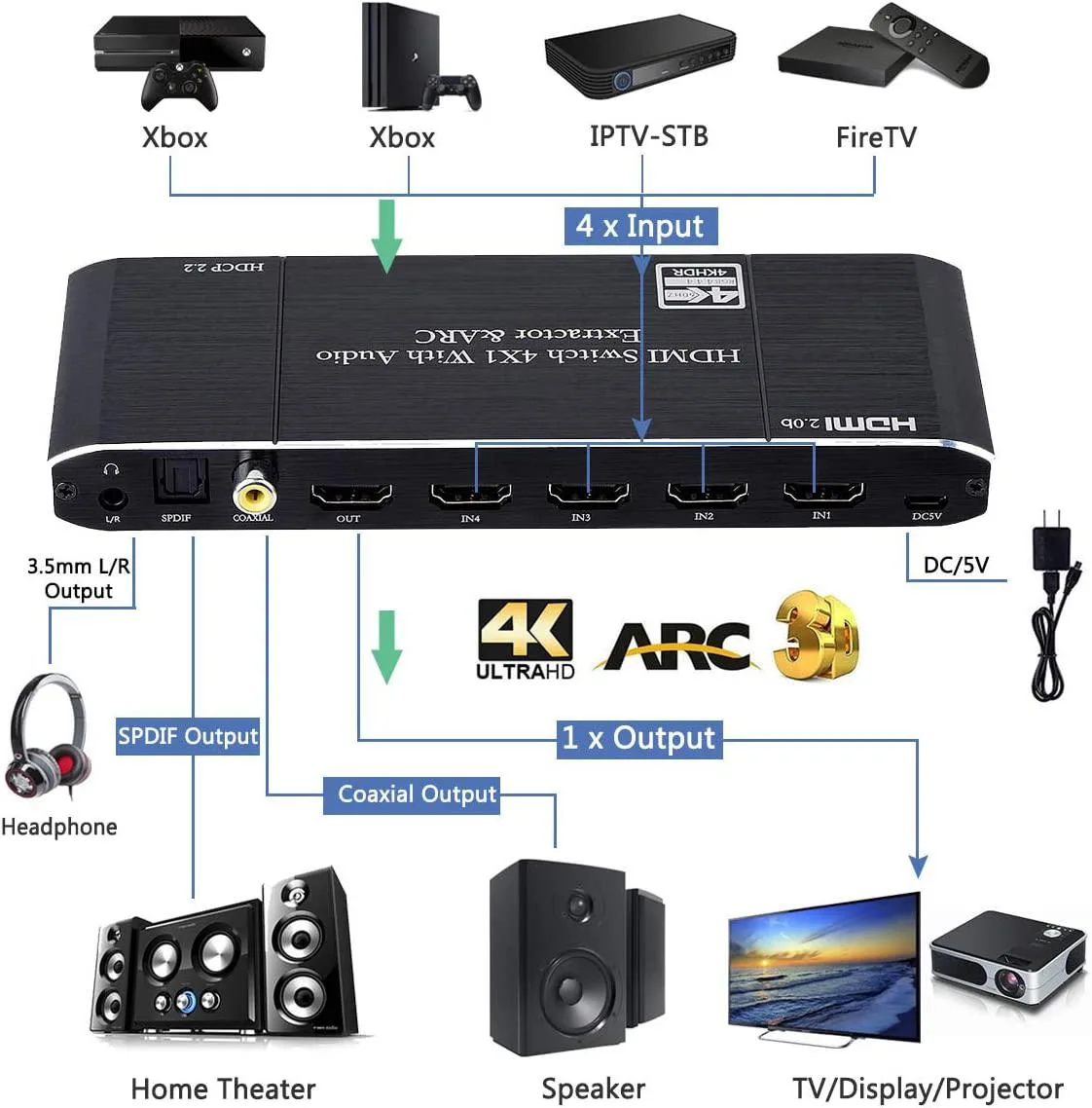

The Jansicotek OZQ9 routes four HDMI sources to one display at up to 4K@60Hz with 18.5Gbps bandwidth. It adds Toslink, coaxial, 3.5mm jack and stereo RCA outputs so sound can be sent to a soundbar or amplifier while the video continues to the TV.

Passive cooling and low power draw

The unit runs from a supplied 5V/1A adapter and has no fan, so it adds no audible noise to a living-room setup. Power consumption stays minimal during normal switching and audio extraction duties.

Replaces basic two-port switch

The jump is worthwhile when a household has more than two 4K sources — game consoles, streamers or Blu-ray players — and wants centralised audio routing without swapping cables. Buyers who need only one or two inputs will not benefit from the extra ports.

Highlights

  • Connect four sources to one display with 4K 60 Hz clarity
  • Extract audio via Toslink, coaxial or 3.5 mm jack for external speakers
  • ARC support returns TV sound through the HDMI output to your receiver
  • 5 Gbps bandwidth handles HDR10 and deep-colour 4K content
  • IR remote included for convenient switching from the sofa

Specifications

BrandJansicotek
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How do I connect the four HDMI sources and the display, and which step do people most often miss?

Connect each source to one of the four HDMI inputs, link the HDMI output to the display, and plug in the 5V/1A DC adapter; the step most often missed is powering the unit before switching sources.

What will need replacement or maintenance down the line?

The IR remote uses a button cell that is not included and will need replacing when it runs low; the switch itself has no user-serviceable parts.

What cable-length limit appears first when running 4K at 60 Hz continuously?

HDMI 2.0b cables are rated for up to 3 metres at 4K 60 Hz; longer runs require dropping to 4K 30 Hz or lower.
