Jansicotek

Jansicotek OZQ9 4K@60Hz 4x1 HDMI Audio Switch with ARC

SKU CH-VEQ5-77XKW

Connects four HDMI sources to one display at 4K 60 Hz and extracts audio via ARC-enabled Toslink, coaxial and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display with IR remote
  • Extract audio to Toslink, coaxial or 3.5 mm jack
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth
  • Support HDR and 12-bit deep colour via HDMI 2.0b
  • Return TV audio through ARC on HDMI, Toslink and coaxial

Four-Port HDMI Switch with Audio Extraction

The Jansicotek OZQ9 is a four-input, one-output HDMI switcher that supports video resolutions up to 4K at 60 Hz and bandwidth of 18.5 Gbps. It extracts audio from the HDMI stream to Toslink, coaxial and 3.5 mm jack outputs while passing video to a display. An IR remote is included for source selection.

Check HDMI Version and ARC Compatibility

Verify that each source device and the display support HDMI 2.0 and HDCP 2.2 for full 4K 60 Hz operation. The HDMI output port carries ARC; the connected display or sound system must also implement ARC for the return channel to function. The 3.5 mm jack provides extracted audio only and does not support ARC. A 5 V DC power adapter is required and included.

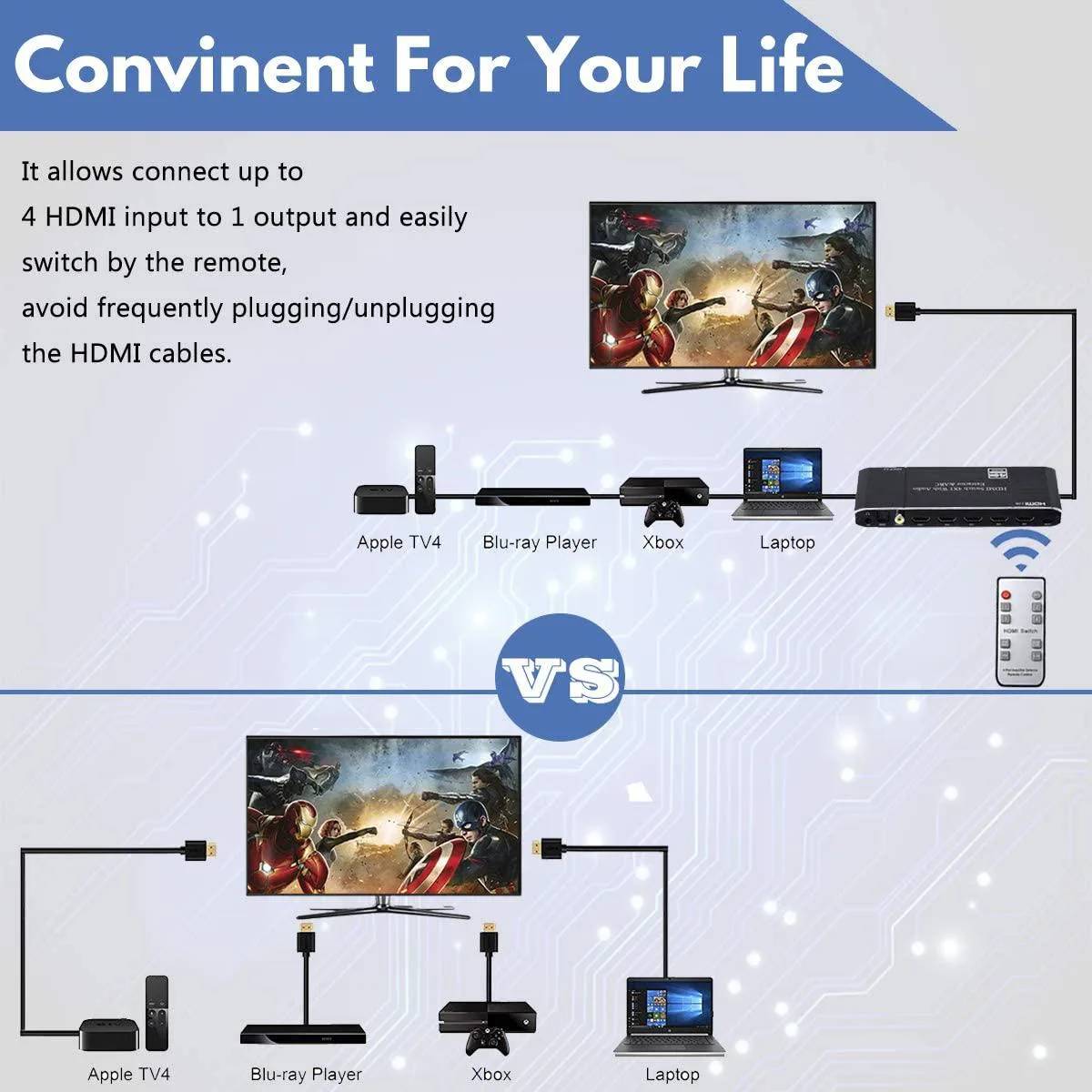

Integrates Four Sources into One Display

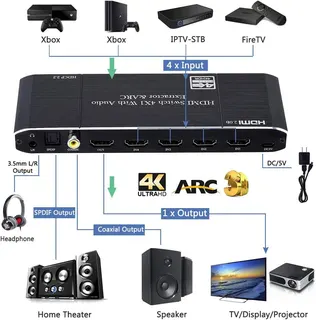

The switch consolidates up to four HDMI sources such as consoles, streaming sticks or disc players to a single HDMI input on a TV, monitor or projector. Audio can be routed simultaneously to an AV receiver or soundbar via Toslink or coaxial with ARC support, or to powered speakers through the 3.5 mm jack. The unit measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces.

Highlights

  • Switch four sources to one display with IR remote
  • Extract audio to Toslink, coaxial or 3.5 mm jack
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth
  • Support HDR and 12-bit deep colour via HDMI 2.0b
  • Return TV audio through ARC on HDMI, Toslink and coaxial

Specifications

BrandJansicotek
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What comes in the box and what must I buy separately?

The package includes the 4x1 HDMI switch, a 5V/1A DC power adapter, an IR remote and a user manual. The remote requires a battery which is not supplied. HDMI cables for the four inputs and the single output are also not included.

Which audio output should I choose for ARC versus simple extraction?

Use the HDMI output, Toslink or coaxial ports when you need ARC return-channel audio. The 3.5 mm jack and L/R connectors only extract audio and do not support ARC.

What does the 4K@60Hz rating mean for my actual setup?

The switch passes 4K at 60 Hz using YUV 4:2:0 colour sampling at up to 18.5 Gbps bandwidth. Full 4:4:4 4K@60Hz is not supported; at 4:4:4 the maximum is 4K@30Hz.
