Black rectangular HDMI switch box with four input ports on one side, single output and multiple audio connectors on the other

Jansicotek

Jansicotek OZQ9 4K@60Hz 4x1 HDMI Audio Switch

SKU CH-2WRV-4XPYN

A 4×1 HDMI switch with audio extraction routes four sources to one display at 4K@60Hz and splits sound via optical, coaxial and 3.5mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI

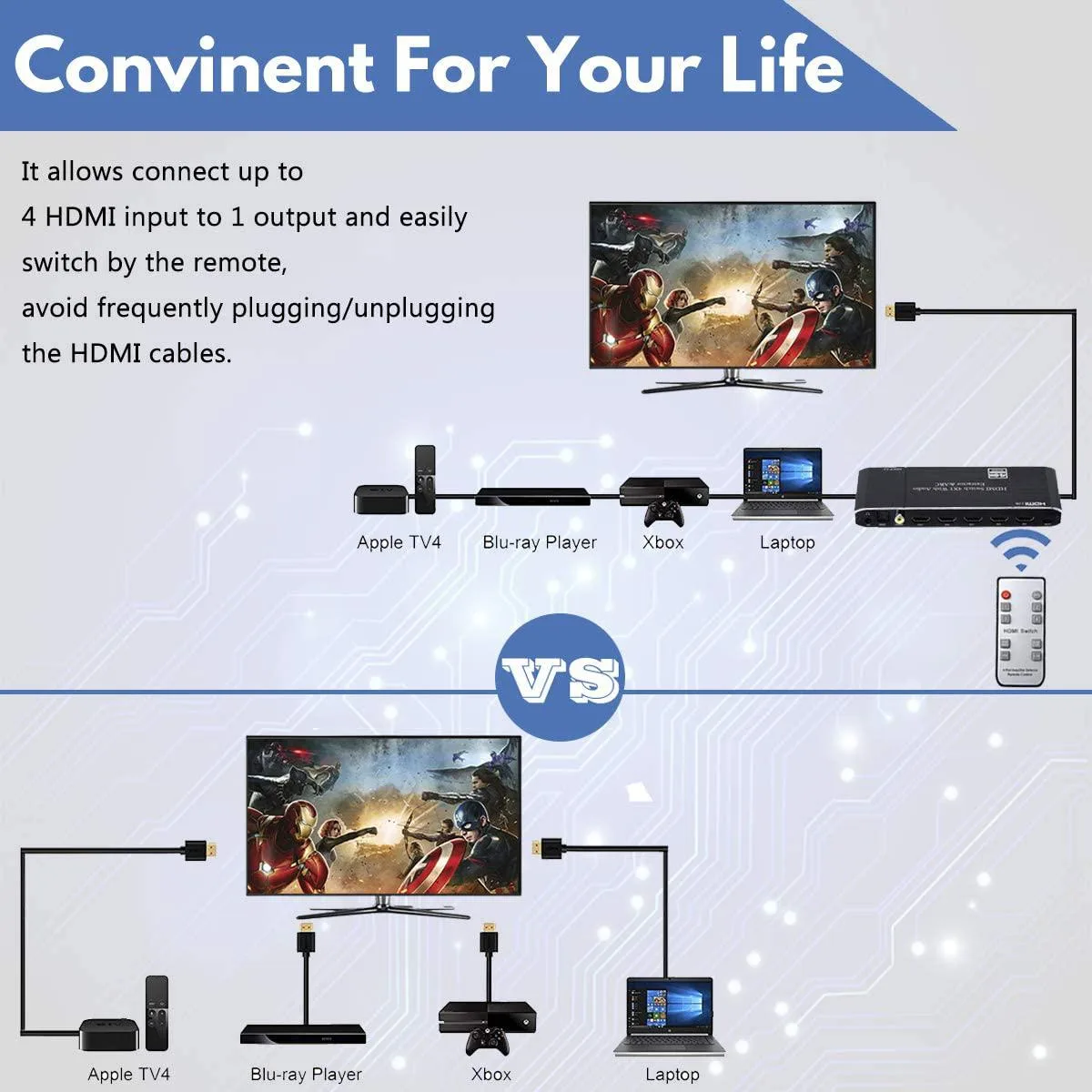

  • Connect four sources to one display
  • 5Gbps bandwidth delivers 4K@60Hz video
  • Extract audio via optical, coaxial or 3.5mm jack
  • ARC returns TV sound to your sound system
  • Control switching from the sofa with the IR remote

Four-port HDMI switch with audio extraction

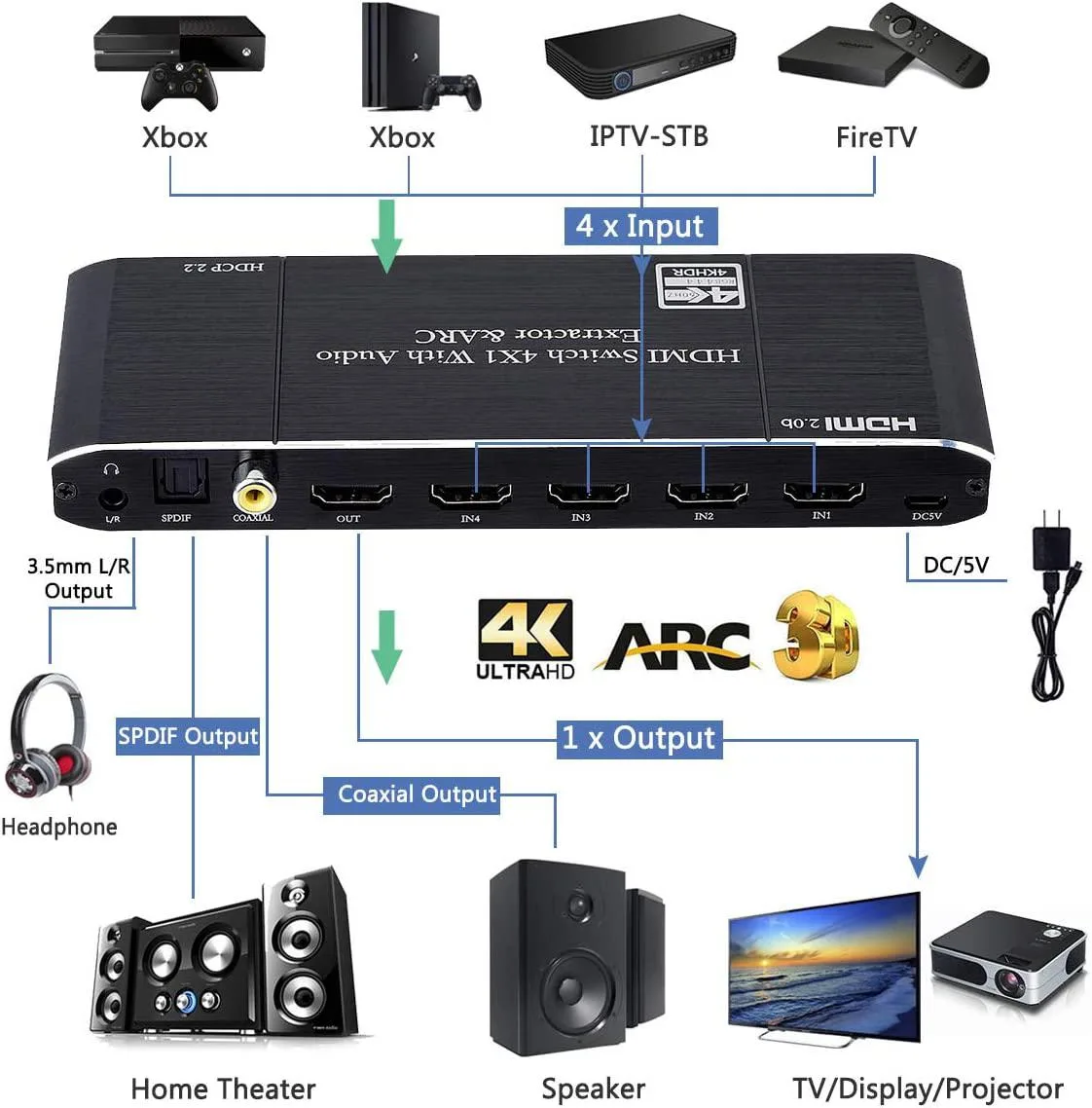

The Jansicotek OZQ9 is a 4x1 HDMI switcher that routes four source devices to one display while extracting audio through optical, coaxial, 3.5 mm and stereo RCA outputs. It targets home-theatre owners who need to connect multiple consoles, streamers or players to a single TV or projector and want separate audio paths to a soundbar or receiver.

18.5 Gbps bandwidth and HDCP 2.2 compliance

The unit passes 4K at 60 Hz with 36-bit deep colour and supports HDR10, making it suitable for current-generation gaming consoles and UHD Blu-ray players. HDCP 2.2 ensures protected 4K content plays without handshake failures, while the 600 MHz per-channel bandwidth handles high-frame-rate signals up to the stated limit.

IR remote and front-panel buttons for source

A supplied infrared remote lets users switch inputs from the sofa, and discrete buttons on the chassis provide local control. The switch requires the included 5 V DC adapter for reliable operation; unpowered use can cause signal dropouts at 4K60. Note that the 3.5 mm and RCA outputs extract audio only and do not support ARC, while the HDMI output ARC function works with compatible displays.

Highlights

  • Connect four sources to one display
  • 5Gbps bandwidth delivers 4K@60Hz video
  • Extract audio via optical, coaxial or 3.5mm jack
  • ARC returns TV sound to your sound system
  • Control switching from the sofa with the IR remote

Specifications

BrandJansicotek
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What does 4K@60Hz actually deliver when the switch is connected to my display?

The switch passes 4K at 60 Hz with 36-bit RGB or YCbCr 4:4:4 colour, so you get full-resolution HDR10 video without chroma subsampling.

How does the 18.5 Gbps bandwidth and HDMI 2.0b compliance limit what I can run?

The 18.5 Gbps ceiling supports 4K@60Hz 36-bit deep colour and HDCP 2.2, but it cannot carry higher refresh rates or 8K signals that need HDMI 2.1 bandwidth.

What space and connections do I need to mount the 5.91 x 2.36 x 0.79 inch unit?

The box fits in a 5.91 by 2.36 inch footprint, needs a nearby outlet for the 5 V 1 A DC adapter, and provides four HDMI inputs plus HDMI, Toslink, coaxial and 3.5 mm outputs.
