Black rectangular HDMI switch with four inputs, one output, optical, coaxial and 3.5 mm audio ports, plus IR remote

Jansicotek

Jansicotek OZQ9 4×1 HDMI Switch with Audio Extractor and IR Remote

SKU CH-QJ64-QY8K6

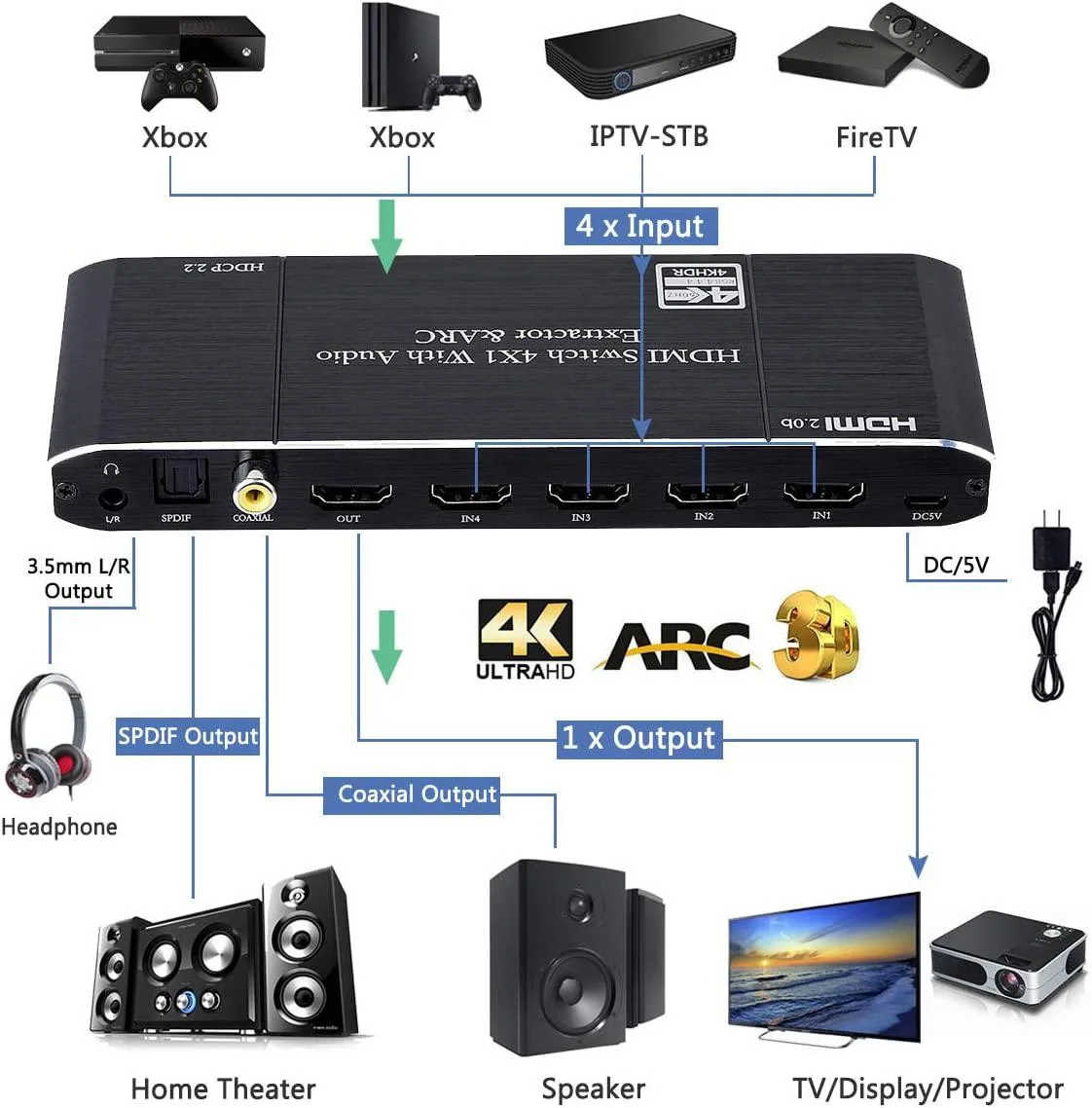

Connects four HDMI sources to one display at 4K 60 Hz and extracts audio through optical, coaxial or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display with IR remote
  • Pass 4K 60 Hz video through 18.5 Gbps bandwidth
  • Extract audio via optical, coaxial or 3.5 mm jack
  • Support ARC return channel on HDMI and digital outputs
  • Handle 1080p 120 Hz and deep colour up to 36 bit

Jansicotek OZQ9 4×1 HDMI Switch

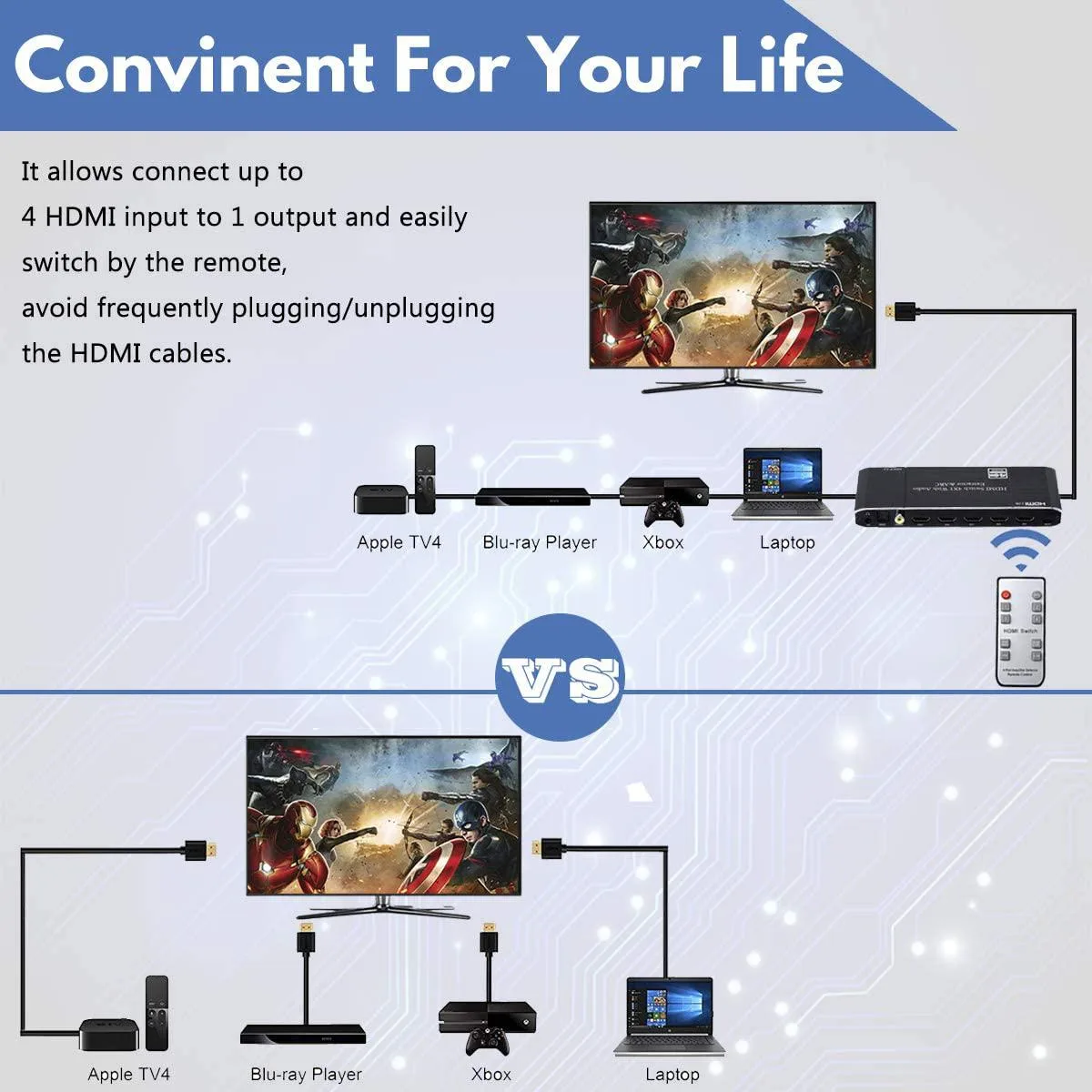

The Jansicotek OZQ9 is a 4-input, 1-output HDMI switch that adds audio extraction and ARC support. It is designed for users who need to connect several HDMI sources such as a PS4, PC, DVD player or security camera to a single display or projector. The unit handles 4K at 60 Hz and 1080p at 120 Hz with 18.5 Gbps bandwidth. An IR remote is included for source selection.

Check your sources and display

Verify that each source device can output one of the supported resolutions such as 480i, 480p, 576i, 576p, 720p at 50 or 60 Hz, 1080p at 50 or 60 Hz, or 4K at 20, 30 or 60 Hz. Confirm the display accepts HDMI 2.0 with HDCP 2.2 and can handle HDR in 4:2:0 YUV format. The switch requires the included 5 V, 1 A DC power adapter to operate. Ensure you have HDMI cables rated for 18 Gbps for 4K 60 Hz signals.

Replaces basic splitters without audio breakout

This unit replaces a simple HDMI switch that lacks audio extraction or ARC. The upgrade is worthwhile when you need to send audio to an external sound system via Toslink, coaxial or 3.5 mm jack while keeping video on the main HDMI output. It also adds support for 12-bit deep colour and HDCP 2.2 compliance. It is not for buyers who need more than four inputs or who require built-in decoding of Dolby TrueHD or DTS-HD Master Audio.

Highlights

  • Switch four sources to one display with IR remote
  • Pass 4K 60 Hz video through 18.5 Gbps bandwidth
  • Extract audio via optical, coaxial or 3.5 mm jack
  • Support ARC return channel on HDMI and digital outputs
  • Handle 1080p 120 Hz and deep colour up to 36 bit

Specifications

BrandJansicotek
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Does the switch come with a power adapter and remote, or must they be bought separately?

The package includes a 5 V / 1 A DC power adapter and an IR remote; the remote requires a battery which is not supplied.

Which audio output should I use if I want ARC support from the TV?

Use the HDMI output, the Toslink optical port or the coaxial port — all three support ARC; the 3.5 mm jack and R/L outputs do not.

What does the 18.5 Gbps bandwidth figure mean when I connect a 4K 60 Hz source?

It provides enough throughput for 4K at 60 Hz using YUV 4:2:0 colour sampling, matching the HDMI 2.0 capability of the switch.
