Jansicotek
Jansicotek OZQ9-1 4K 60Hz HDMI Switch 4x1 Audio Extractor
Connects four HDMI sources to one display and extracts 7.1 audio via HDMI, optical or 3.5 mm outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
- Input Connector4 x HDMI
- Connect four HDMI sources to one display with 4K@60Hz support
- Extract 7.1CH Atmos audio via HDMI, optical or 3.5mm outputs
- Switch sources instantly using the included remote control
- Enjoy HDR10 and HDCP 2.2 compatibility for protected 4K content
- Compact 5.91 x 2.36 x .79 inch design fits any setup

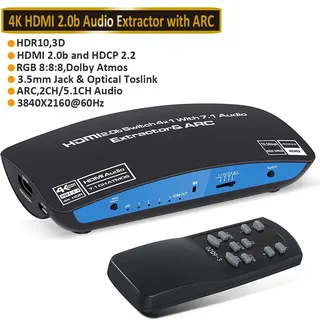

Jansicotek OZQ9-1 4K 60Hz HDMI Switch 4x1

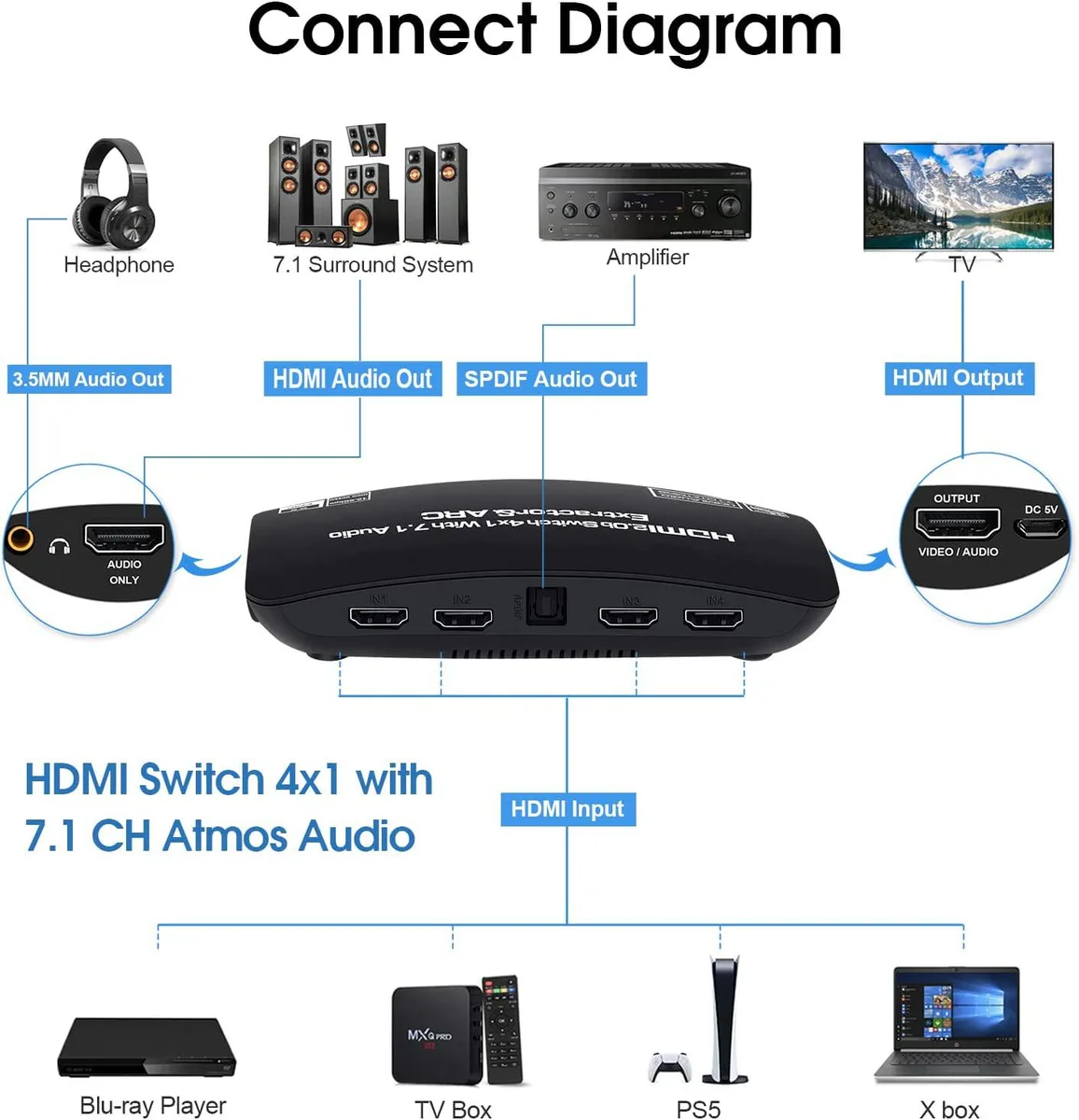

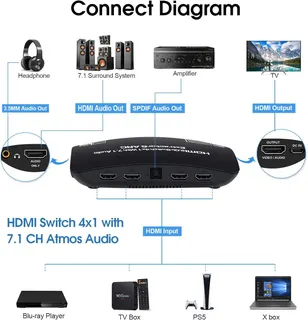

The Jansicotek OZQ9-1 routes four HDMI sources to a single display at up to 4K@60Hz with 18.5Gbps bandwidth. It is built for users who need to connect multiple consoles, players or PCs to one screen and also want to send extracted audio to external sound systems. The unit supports HDCP 2.2, HDR10 and RGB 8:8:8 colour.
Audio extraction and remote control
The switch provides three audio outputs: HDMI with 7.1CH Atmos pass-through, optical Toslink for Dolby Digital or DTS 5.1CH and a 3.5mm jack for stereo PCM 2.0. Four selectable modes — 7.1CH, 5.1CH, 2.0CH and pass-through — let you match the connected amplifier or soundbar. An included infrared remote allows input switching without reaching behind the equipment.
Installation notes and common issues
Connect the supplied 5V/2A DC adapter before linking sources; the switch will not pass video or audio without external power. Use certified Premium High Speed HDMI cables for reliable 4K@60Hz HDR transmission. The optical and 3.5mm ports output only PCM 2.0 or compressed 5.1CH formats, so they cannot carry lossless 7.1CH streams. Buyers needing more than four inputs or a 1-to-4 distribution should choose a different device.
Highlights
- Connect four HDMI sources to one display with 4K@60Hz support
- Extract 7.1CH Atmos audio via HDMI, optical or 3.5mm outputs
- Switch sources instantly using the included remote control
- Enjoy HDR10 and HDCP 2.2 compatibility for protected 4K content
- Compact 5.91 x 2.36 x .79 inch design fits any setup
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZQ9-1 |
| Model | OZQ9-1 |
| Part Number | OZQ9-1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Specifications | 4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar. Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS) HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0 HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS |
| Input Connector | 4 x HDMI |
| Output Connector | 1 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support Max resolution 4K@60Hz Support 7.1 ATMOS audio out Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10 |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x 4K 60Hz HDMI Switch 4x1 1 x 5V/2A DC Power Adapter 1 x Remote Control 1 x User Manual |
