Black rectangular HDMI switch with four input ports and audio outputs

Jansicotek

Jansicotek OZQ9-1 4K 60Hz HDMI 4x1 Audio Extractor Switch

SKU CH-NP0E-W2BSR

Four HDMI sources switch to one 4K 60Hz display while extracting 7.1 Atmos, 5.1 optical or stereo audio to external speakers

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K 60Hz clarity
  • Extract 7.1 Atmos audio via HDMI optical or 3.5mm outputs
  • Switch inputs instantly using the included IR remote control
  • Supports HDR10 HDCP2.2 and 36-bit deep colour at 18.5Gbps bandwidth
  • Compact black chassis measures 5.91 x 2.36 x 0.79 inches

4K 60Hz HDMI Switch 4x1 with Audio Extraction

The Jansicotek OZQ9-1 connects up to four HDMI sources to one display at 4K 60Hz. It extracts audio from the incoming signal and sends it to external speakers via HDMI, optical or 3.5mm outputs. A 5V power adapter and IR remote are included for immediate setup.

Who this suits and who should look elsewhere

This switch suits anyone who needs to share one screen between several consoles, streamers or players while sending multichannel sound to a soundbar or receiver. It does not suit anyone who wants one source sent to multiple screens, or who needs more than four inputs.

Deciding specification — 4K 60Hz bandwidth limit

The unit passes 4K at 60Hz with an 18.5Gbps bandwidth ceiling and supports HDCP 2.2 and HDR10. If your sources or display require higher refresh rates or greater bandwidth, this switch will not pass those signals.

Highlights

  • Connect four sources to one display with 4K 60Hz clarity
  • Extract 7.1 Atmos audio via HDMI optical or 3.5mm outputs
  • Switch inputs instantly using the included IR remote control
  • Supports HDR10 HDCP2.2 and 36-bit deep colour at 18.5Gbps bandwidth
  • Compact black chassis measures 5.91 x 2.36 x 0.79 inches

Specifications

BrandJansicotek
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor

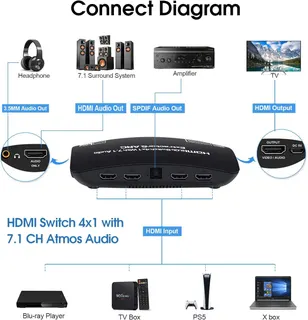

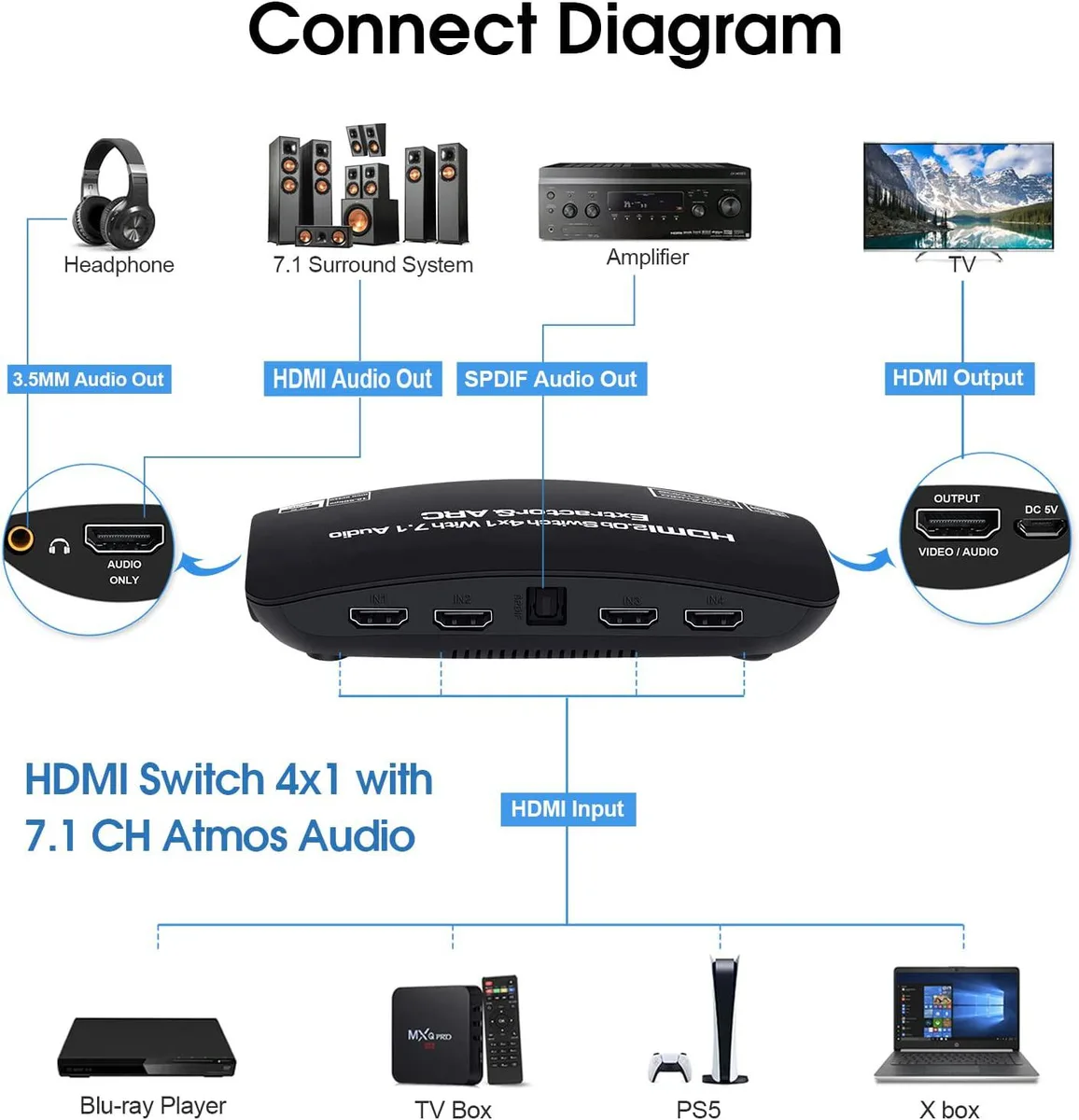

This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

What type of display must I already have to use the 4K 60Hz HDMI output?

You need a display with an HDMI input that accepts a 4K signal at 60 Hz and supports HDCP 2.2 and HDR10.

Will my older 1080p sources work through the four HDMI inputs alongside newer 4K devices?

Yes, the switch handles mixed resolutions; each of the four HDMI inputs accepts signals up to 4K 60 Hz and will pass lower-resolution sources to the single HDMI output.

How can I confirm the audio extractor is sending sound to my soundbar after setup?

Select the audio mode that matches your soundbar — 7.1 CH, 5.1 CH, 2.0 CH or pass-through — then play Dolby Atmos or DTS:X content and verify sound from the HDMI, optical or 3.5 mm output.
