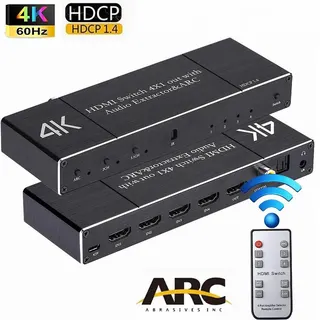

Black rectangular HDMI switch with four inputs and multiple audio outputs

Jansicotek

Jansicotek OZQ7 4x1 HDMI Switch with Audio Extractor 4K 60Hz

SKU CH-R7DT-D3DWH

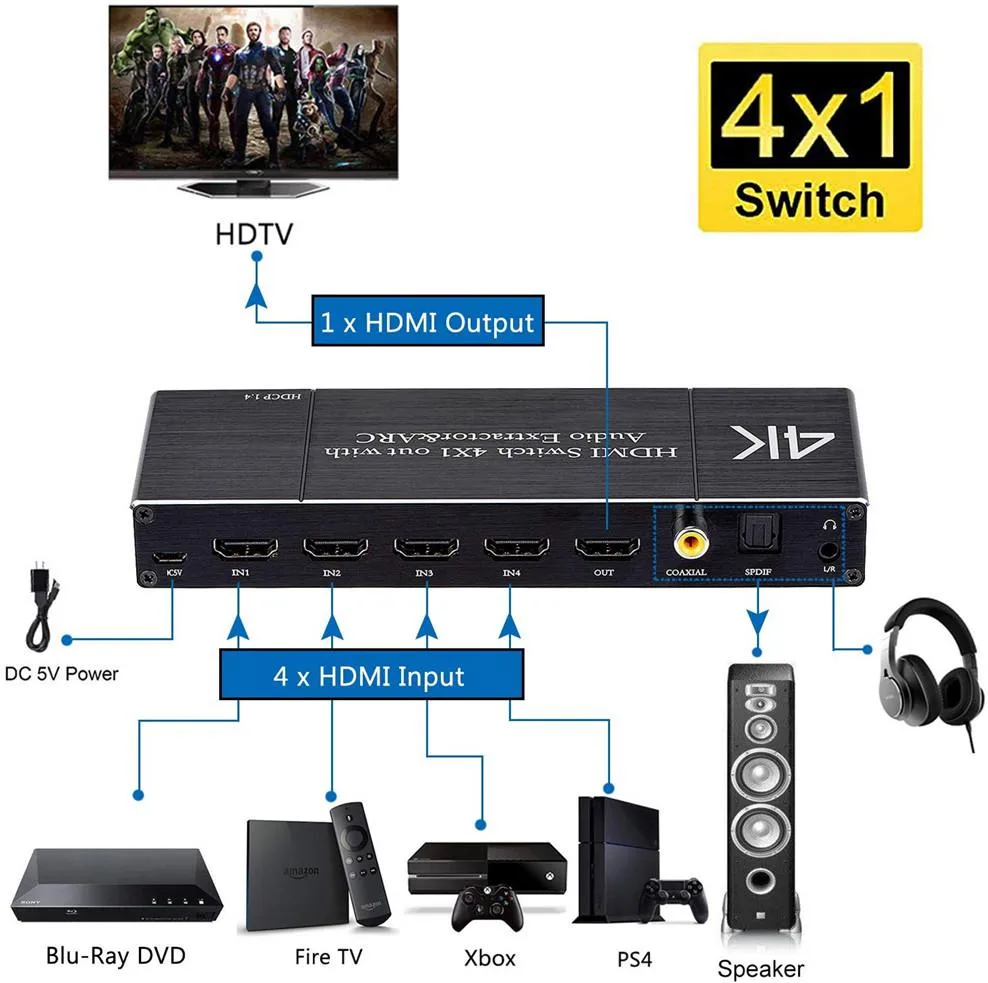

Connects four HDMI sources to one display at 4K 60 Hz and extracts audio via optical, coaxial or 3.5 mm jack

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4 HDMI inputs and 1 HDMI output
  • Extract audio to soundbars or receivers via Toslink, Coaxial, or 3.5 mm jack outputs
  • Enjoy 4K 60 Hz video with 18.5 Gbps bandwidth and 600 MHz performance
  • Supports Dolby True-HD, DTS-HD, AC3, DTS, and DSD audio pass-through formats
  • Switch sources instantly using the included IR remote control

Four-port HDMI switch with audio extraction

The Jansicotek OZQ7 routes four HDMI sources to a single display while extracting sound through Toslink, coaxial or 3.5 mm analogue outputs. It is intended for users who need to alternate between consoles, streaming sticks or media players on one screen.

HDMI 2.0 bandwidth caps 4K at 60 Hz with YUV 4:2:0

Maximum bandwidth per channel is 300 MHz and 10.2 Gbps per display, so 4K 60 Hz is limited to YUV 4:2:0 colour sampling. The switch passes Dolby True-HD, DTS-HD, AC3, DTS and DSD bitstreams but does not decode them. The 3.5 mm output does not support ARC.

Check source and display compatibility before

Verify that your sources and display work within the listed resolutions and colour formats. Ensure you can provide the required 5 V 1 A DC power. Note that HDMI-to-DVI conversion is not supported and cable runs above 3 metres at 4K 60 Hz may not be reliable.

Highlights

  • Connect four sources to one display with 4 HDMI inputs and 1 HDMI output
  • Extract audio to soundbars or receivers via Toslink, Coaxial, or 3.5 mm jack outputs
  • Enjoy 4K 60 Hz video with 18.5 Gbps bandwidth and 600 MHz performance
  • Supports Dolby True-HD, DTS-HD, AC3, DTS, and DSD audio pass-through formats
  • Switch sources instantly using the included IR remote control

Specifications

BrandJansicotek
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Should I pick the 4-input model or a version with fewer ports?

The OZQ7 has four HDMI inputs and one HDMI output with ARC, plus Toslink, coaxial and 3.5 mm outputs. Choose this unit when you need to switch four sources; a smaller switch would not cover all four.

What does the 18.5 Gbps bandwidth mean once the switch is installed?

The 18.5 Gbps rating lets the switch pass 4K at 60 Hz with 4:2:0 chroma, 4:4:4 at 30 Hz, and 1080p at 60 Hz. Per-channel bandwidth is 300 MHz with a 10.2 Gbps display rate.

Which HDMI standard caps the 4K 60 Hz signal and what cable length works?

The unit follows HDMI 2.0 limits. Use cables up to 3 metres for 4K 60 Hz or up to 5 metres for 4K 30 Hz to stay within spec.
