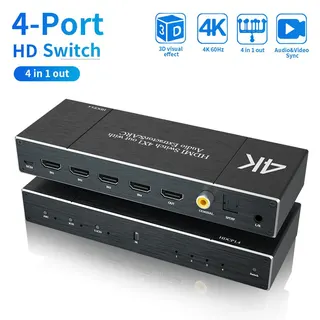

Compact black box with four HDMI inputs, one HDMI output, optical, coaxial and 3.5 mm audio ports, IR remote included

Jansicotek

Jansicotek OZQ7 4x1 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-VNVH-KSMAE

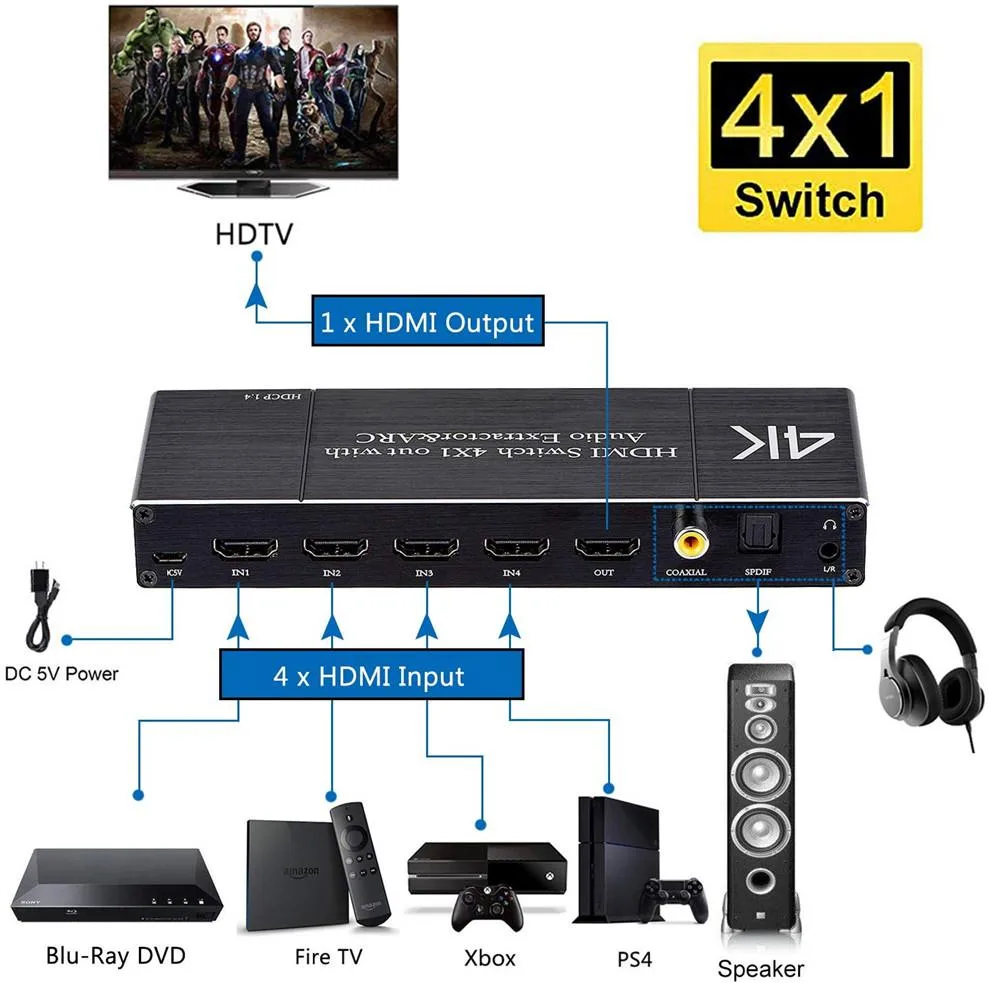

A 4-input HDMI switch routes four sources to one display at up to 4K@60Hz and extracts audio through optical, coaxial and 3.5mm outputs with ARC support on the digital ports

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four HDMI sources to one display with 4K@60Hz support
  • Extract audio via optical Toslink or coaxial with ARC return function
  • Output stereo sound through 3.5mm jack for headphones or speakers
  • Switch sources instantly using the included IR remote control
  • Pass-through Dolby True-HD and DTS-HD formats without decoding

Four-Input HDMI Switch with Audio Extraction

The Jansicotek OZQ7 routes four HDMI sources to a single display while extracting sound through optical, coaxial and analogue outputs. It is built for home-theatre owners who need to connect a console, streamer, Blu-ray player and PC without swapping cables.

18.5 Gbps Bandwidth and 4K60 Support

The switch passes 4K at 60 Hz using YUV 4:2:0 and handles 1080p at 120 Hz for high-refresh gaming. Deep-colour modes up to 36 bit per channel are supported, but the 10.2 Gbps per-channel limit means full 4K 4:4:4 at 60 Hz cannot be transmitted.

IR Remote and External Power Included

A 5 V 1 A adapter powers the unit and an infrared remote selects inputs without front-panel buttons. HDMI 2.0 cables up to 3 metres at 4K60 or 5 metres at 4K30 are supported; the 3.5 mm jack does not carry ARC audio.

Highlights

  • Connect four HDMI sources to one display with 4K@60Hz support
  • Extract audio via optical Toslink or coaxial with ARC return function
  • Output stereo sound through 3.5mm jack for headphones or speakers
  • Switch sources instantly using the included IR remote control
  • Pass-through Dolby True-HD and DTS-HD formats without decoding

Specifications

BrandJansicotek
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Will the OZQ7 pass 1080p at 120 Hz from my older console to a 4K display?

Yes, the switch supports 1080p at 120 Hz among its listed resolutions.

How can I confirm the ARC return path is active on the Toslink or Coaxial output?

Connect the TV HDMI ARC port to the switch output, enable ARC on the TV, then verify audio plays through the optical or coaxial link.

Does the package include a battery for the IR remote?

No, the IR remote is supplied without a battery; you must provide a suitable button cell separately.
