Black rectangular HDMI switch with four inputs and multiple audio outputs

Jansicotek

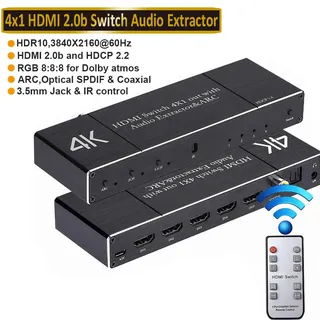

Jansicotek OZQ7 4x1 HDMI Audio Switch ARC 4K@60Hz

SKU CH-8RZJ-6YES6

Connects four HDMI sources to one display at 4K@60Hz with ARC audio extraction via Toslink and Coaxial outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Four HDMI sources on one display with 4K@60Hz bandwidth
  • Optical and coaxial outputs return TV audio via ARC
  • 5 mm jack extracts stereo sound for headphones or speakers
  • Handles 24/30/36-bit deep colour and HDR10 at 18.5 Gbps
  • IR remote switches inputs instantly from the sofa

Four-input HDMI switch with ARC

The Jansicotek OZQ7 accepts four HDMI sources and routes one signal to a display at up to 4K@60Hz with 18.5Gbps bandwidth. It extracts audio through Toslink, coaxial and 3.5mm jack outputs while the HDMI output supports audio return channel. The unit handles 480i through 1080p@60Hz and 4K@20/30/60Hz with 24, 30 or 36-bit deep colour and HDCP 1.4 compliance. An IR remote and 5V/1A power adapter are included.

Passive operation with external power

The switch draws power from the supplied 5V/1A adapter and adds no active cooling, so it runs silently in normal use. Maximum bandwidth per channel is 300MHz with a 10.2Gbps baud rate, supporting Dolby True-HD, DTS-HD, AC3, DTS and DSD pass-through without decoding. HDMI 2.0 cables up to 3 metres are supported at 4K@60Hz, extending to 5 metres at 4K@30Hz. The compact chassis measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces.

Simple integration for multi-source setups

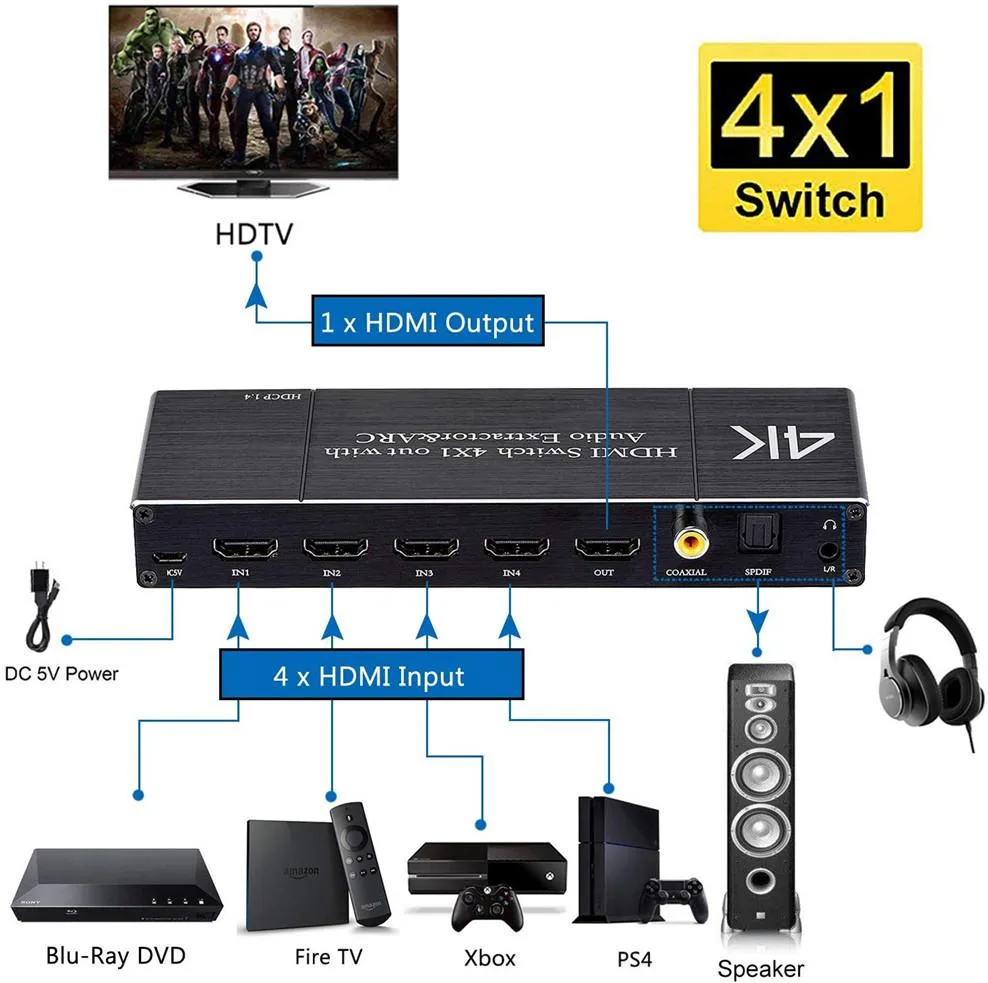

Connect up to four devices such as a PC, streaming box, Blu-ray player or console to the four HDMI inputs, then run a single HDMI cable to the display. Audio can be sent to a soundbar or receiver via Toslink or coaxial with ARC support, while the 3.5mm jack provides a separate stereo extract. The switch is not compatible with DVI signals, so HDMI-to-DVI cables should not be used. Buyers who need more than four inputs or HDMI 2.1 features will need a different solution.

Highlights

  • Four HDMI sources on one display with 4K@60Hz bandwidth
  • Optical and coaxial outputs return TV audio via ARC
  • 5 mm jack extracts stereo sound for headphones or speakers
  • Handles 24/30/36-bit deep colour and HDR10 at 18.5 Gbps
  • IR remote switches inputs instantly from the sofa

Specifications

BrandJansicotek
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

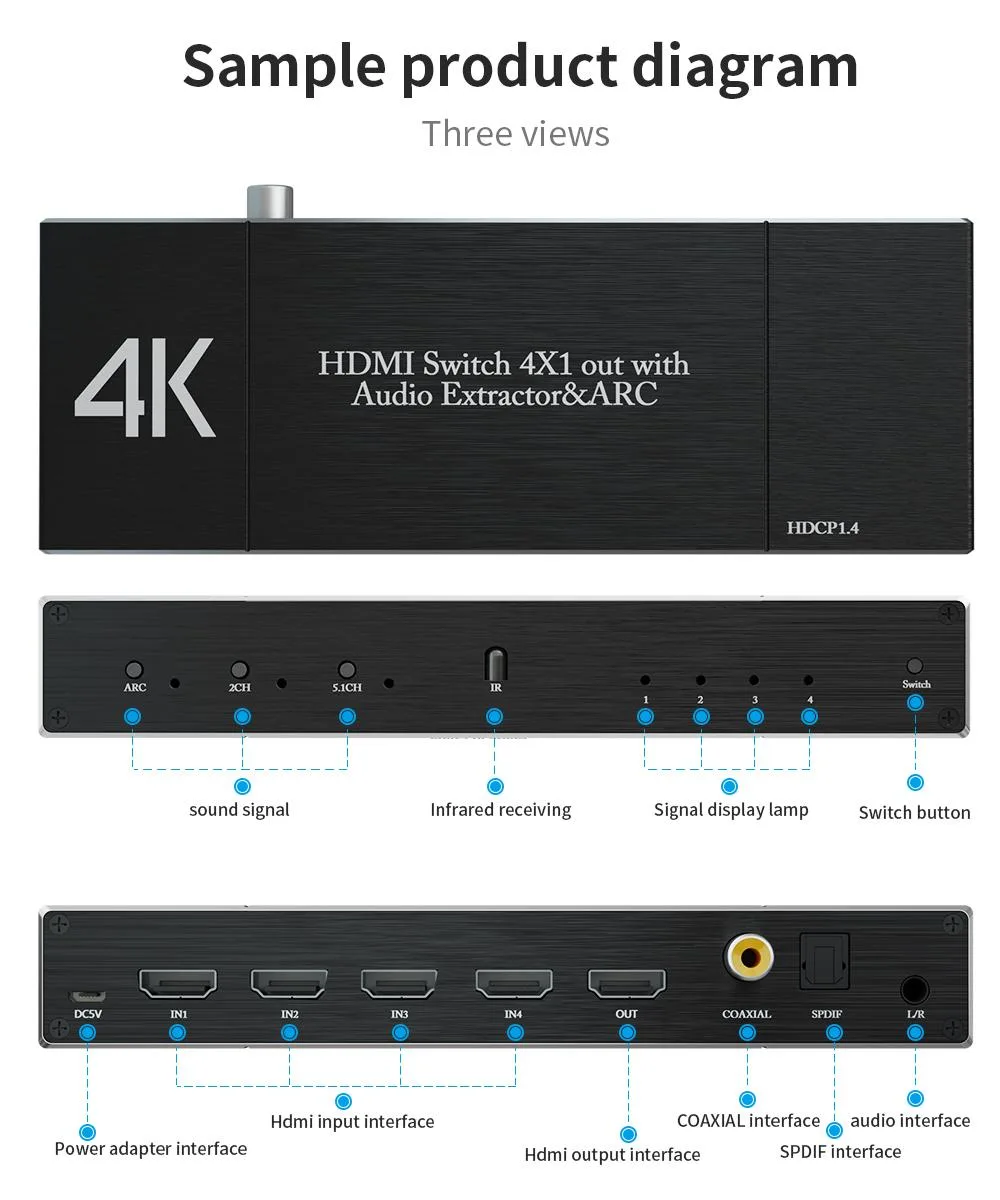

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How do I connect the 5 V DC power adapter and the four HDMI sources so the switcher passes 4K at 60 Hz?

Plug the supplied 5 V/1 A adapter into the DC jack, connect each source to one of the four HDMI inputs with cables no longer than 3 metres for 4K 60 Hz, run a single HDMI cable from the output to the display, then use the IR remote or front button to select the active input.

Which audio outputs will need attention if I later add a soundbar that only accepts optical or coaxial digital audio?

The Toslink and coaxial ports both carry the ARC return signal from a compatible TV, while the 3.5 mm jack provides stereo analogue only; choose the digital output that matches the soundbar and leave the other unused.

What cable-length limit appears first when I run 4K 60 Hz through the switcher for long sessions?

HDMI cables must stay at 3 metres or less for 4K 60 Hz; longer runs drop to 4K 30 Hz at up to 5 metres, so cable length is the first practical constraint under sustained high-resolution use.
