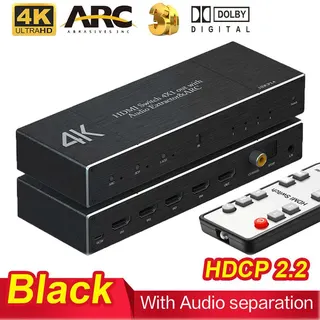

Black rectangular HDMI switch with four inputs and multiple audio outputs

Jansicotek

Jansicotek OZQ7 4K@60Hz 4x1 HDMI Audio Extractor Switch

SKU CH-QSJC-CPERJ

Routes four HDMI sources to one display at 4K 60 Hz while extracting audio via optical, coaxial or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K@60Hz clarity
  • Extract sound via optical Toslink or coaxial with ARC support
  • Separate analogue audio through 3.5 mm L/R jack for headphones or speakers
  • Switch inputs instantly using the included IR remote control
  • Pass Dolby True-HD and DTS-HD bitstreams untouched to your receiver

Four-input HDMI switch with audio extraction

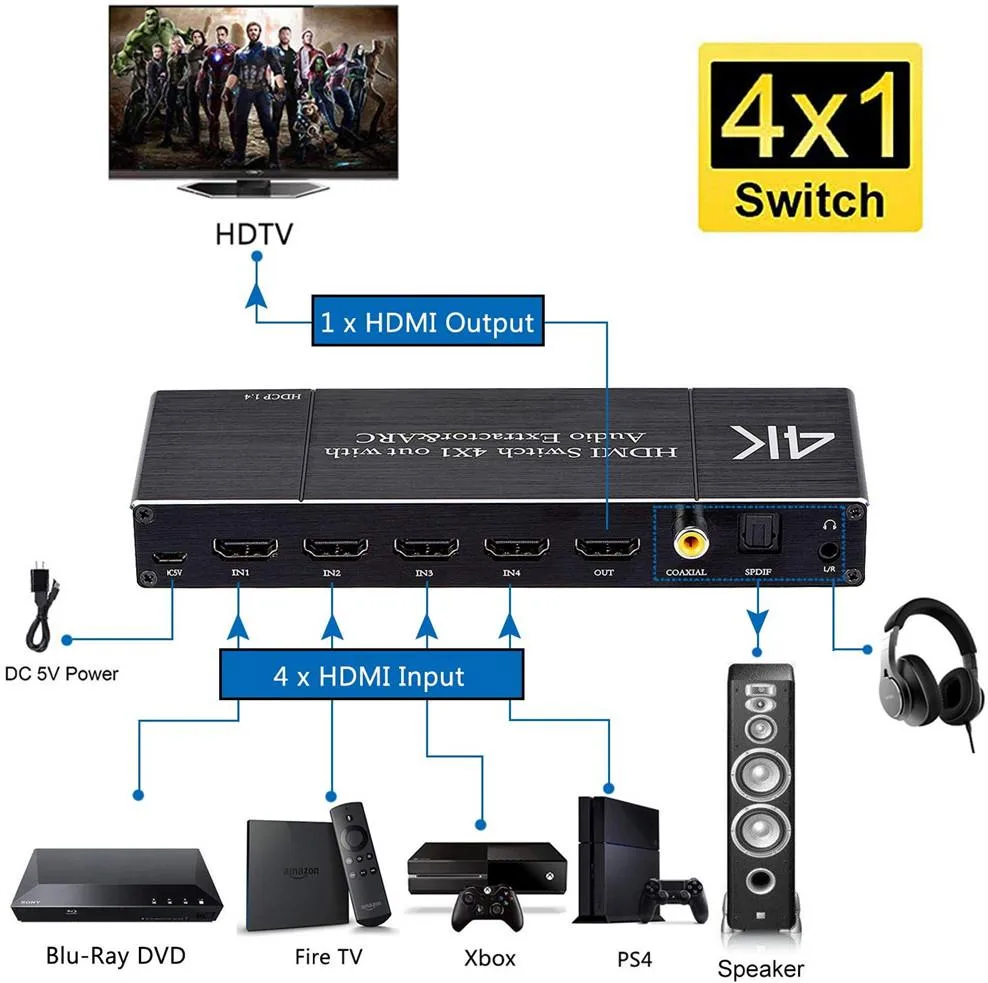

The Jansicotek OZQ7 routes four HDMI sources to a single display at up to 4K@60Hz and 18.5Gbps bandwidth. It provides an HDMI output with ARC, plus Toslink, coaxial and 3.5mm stereo outputs for separate audio routing. The unit supports 480i through 1080p and 4K formats with 24, 30 or 36-bit deep colour. A remote control and 5V power adapter are included.

Signal integrity over typical cable runs

HDMI 2.0 cables up to three metres maintain 4K@60Hz without lag, flash or resolution drop; at 4K@30Hz the reach extends to five metres. The switch passes Dolby True-HD, DTS-HD, AC3, DTS and DSD bitstreams but does not decode them. Coaxial and Toslink ports return ARC audio from a compatible display, while the 3.5mm jack extracts stereo only. Maximum per-channel bandwidth is 300MHz and 10.2Gbps.

Compatibility checks before ordering

Verify each source can output a resolution and refresh rate listed in the supported formats. Confirm your display accepts ARC on its HDMI input if you plan to use the Toslink or coaxial return path. The 3.5mm output will not carry ARC audio. The switch is not compatible with DVI signals, so HDMI-to-DVI cables should not be used. A free mains socket is required for the supplied 5V/1A adapter.

Highlights

  • Connect four sources to one display with 4K@60Hz clarity
  • Extract sound via optical Toslink or coaxial with ARC support
  • Separate analogue audio through 3.5 mm L/R jack for headphones or speakers
  • Switch inputs instantly using the included IR remote control
  • Pass Dolby True-HD and DTS-HD bitstreams untouched to your receiver

Specifications

BrandJansicotek
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

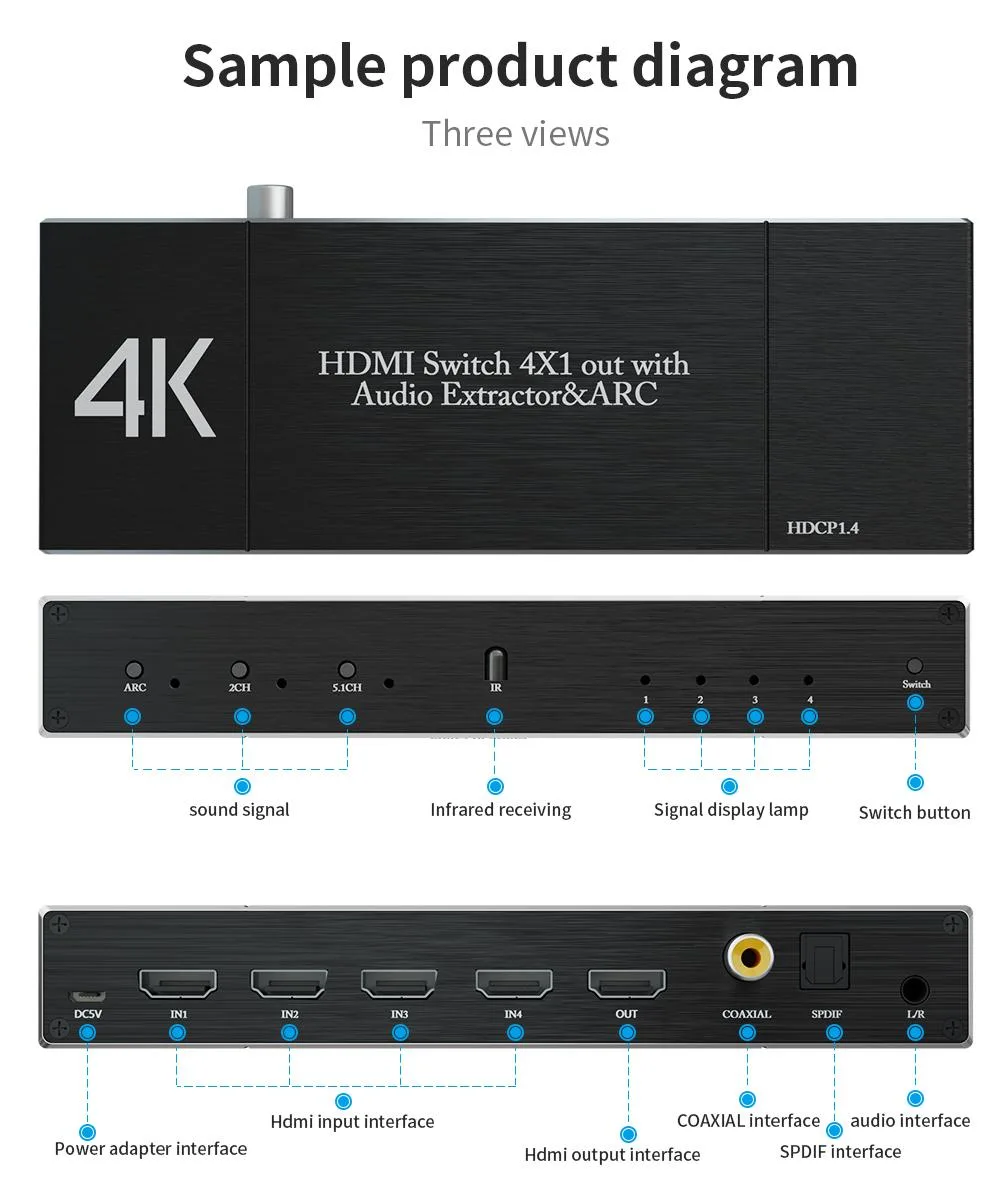

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Does the 18.5Gbps bandwidth or 300MHz clock generate noticeable heat or fan noise during all-day use?

The unit is passively cooled with no fan, so it runs silently; typical warmth is low because it only switches and extracts audio without heavy processing.

Which cables and power source must I already have to connect four sources and extract audio via Toslink or coaxial?

You need four HDMI 2.0 cables for the inputs, one HDMI 2.0 cable for the output, a Toslink or coaxial cable for your sound system, and a free mains socket for the included 5V/1A DC adapter.

Will a legacy 1080p@60Hz source switch cleanly alongside a 4K@60Hz console on the same OZQ7?

Yes — the switch accepts 480i through 4K@60Hz on any port and scales each signal independently, so older 1080p gear and newer 4K sources work together without manual reconfiguration.
