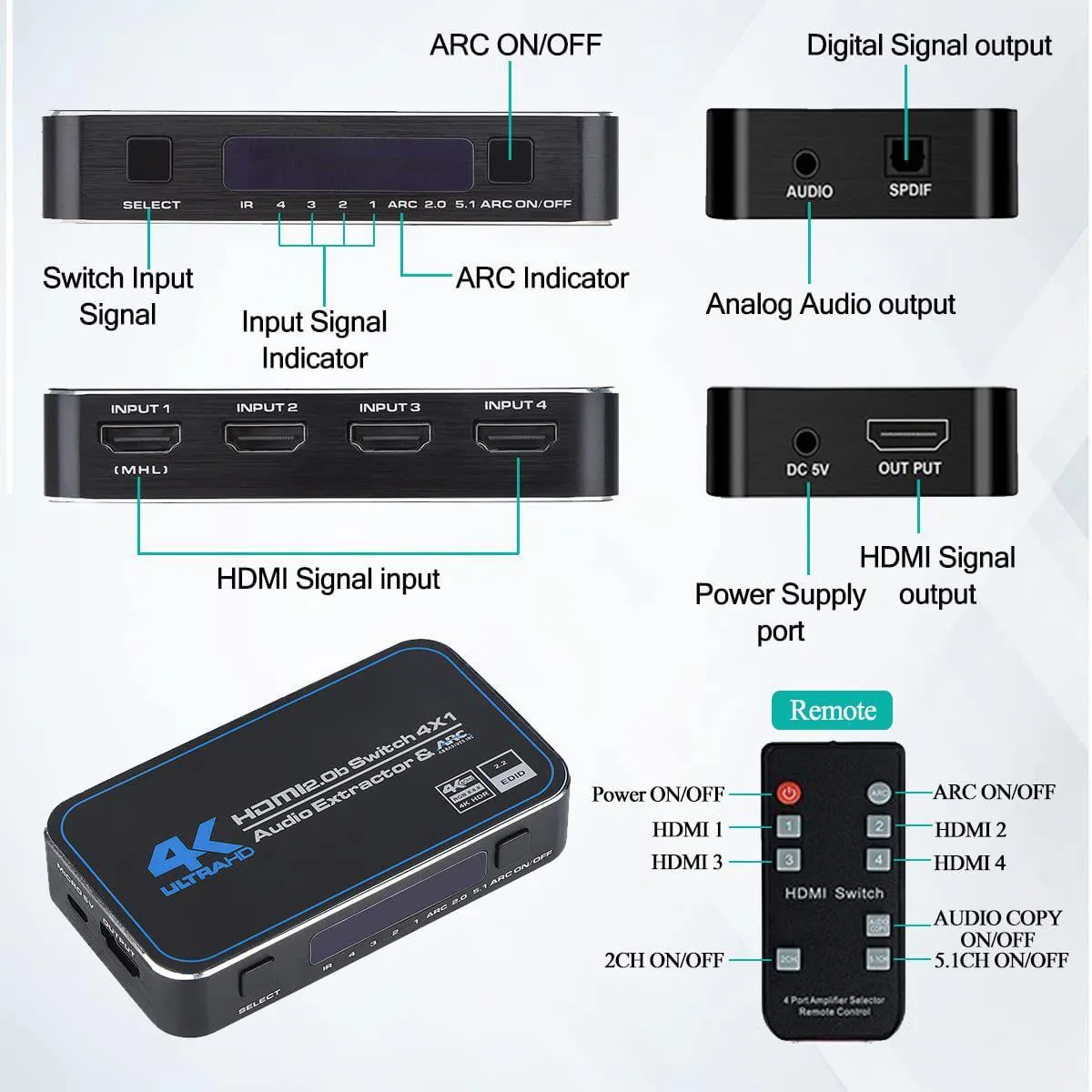

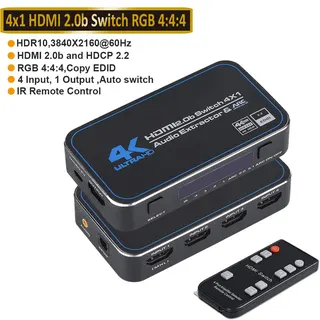

Black rectangular HDMI switch with four inputs, one output, optical and 3.5mm audio ports, IR remote included

Jansicotek

Jansicotek OZQ4 4x1 HDMI Switch 4K@60Hz ARC audio

SKU CH-CV8P-46ZC3

A 4-port HDMI 2.0 switch routes four sources to one display at 4K 60 Hz and extracts audio via optical or 3.5 mm with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4-Port UHD
  • SpecificationsInput:HDMI 2.0 ports X4 Output:HDMI 2.0 port X1, optical tos
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K@60Hz clarity
  • Extract audio separately via optical TOSLINK or 3.5 mm for soundbars
  • Switch instantly using the included IR remote or front button
  • Auto-detects active inputs and jumps to the next when one disconnects
  • Supports HDR, 3D and 12-bit deep colour over 18.5 Gbps bandwidth

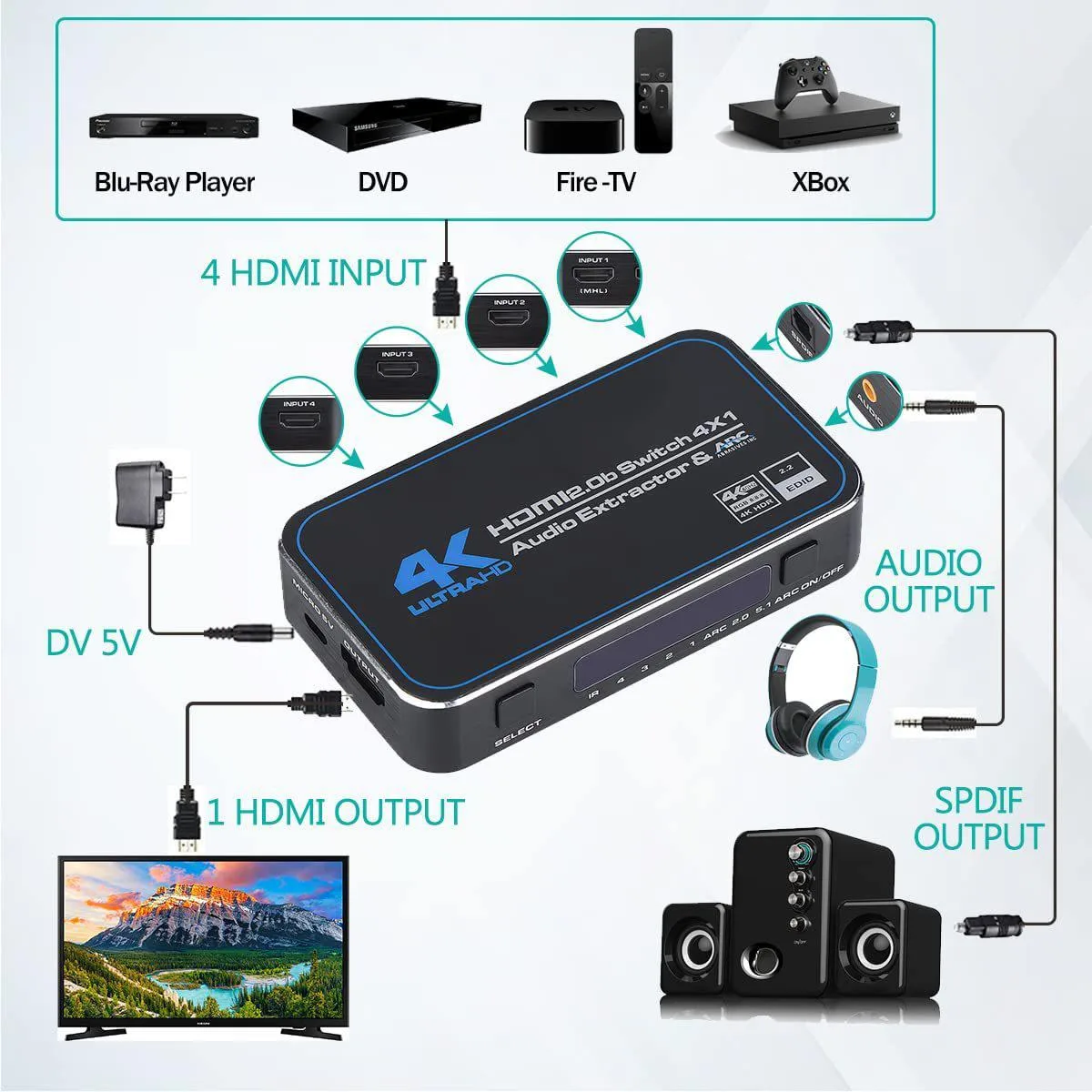

4×1 HDMI switch for four sources

The Jansicotek OZQ4 routes four HDMI 2.0 inputs to one HDMI 2.0 output at up to 4K@60Hz. It is aimed at owners of TVs, monitors or projectors with a single HDMI port who need to connect multiple consoles, streamers or players. An IR remote and a front button both select the active source. The unit also extracts audio through optical Toslink and 3.5 mm stereo jacks.

Capacity and headroom

The switch passes 4K@60Hz, 1080p 3D, 1080P, 720P, 576P and 480P signals within an 18.5 Gbps bandwidth envelope. It supports HDCP 2.2 and 12-bit deep colour in YUV 4:2:0 format. ARC works through the optical port only. Compressed formats such as DTS digital, Dolby digital, DTS-HD and Dolby are decoded. Automatic switching jumps to the next live input when the current one is disconnected.

Thermals, noise and power

The aluminium enclosure measures 5.91 × 2.36 × .79 inches and weighs 11.9 ounces. It draws power from the included USB cable without a separate adapter. No fan is fitted so operation is silent. The low power draw keeps the case only slightly warm during extended 4K@60Hz use.

Highlights

  • Connect four sources to one display with 4K@60Hz clarity
  • Extract audio separately via optical TOSLINK or 3.5 mm for soundbars
  • Switch instantly using the included IR remote or front button
  • Auto-detects active inputs and jumps to the next when one disconnects
  • Supports HDR, 3D and 12-bit deep colour over 18.5 Gbps bandwidth

Specifications

BrandJansicotek
SeriesOZQ4
ModelOZQ4
Part NumberOZQ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4-Port UHD
SpecificationsInput:HDMI 2.0 ports X4
Output:HDMI 2.0 port X1,
optical toslink audioX1
3.5mm stereo audioX1
ARC function:Yes(toslink port only)
Resolutions:4KX2K/60Hz in&out
HDCP:HDCP 2.2 compliant
HDMI version:HDMI 2.0
HDR:supports HDR up to 10 bite
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features1.Support ARC functions, Compatible with HDTV which support HDMI and HDCP
2.Support compressed audio; DTS digital, Dolby digital (DTS-HD and DOLBY)
3.Support high-resolution input: 480P/ 576P/ 720P/ 1080P/ 1080p 3D/ 4K@60Hz, HDMI V2.0, HDCP V1.4
4.Support video transmission: 18Gbps/ 600MHZ
5.Support high-definition signal with remote control
6.Support automatic identification of the signal source
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package ContentsHDMI 2.0 switcher 4X1 with audioX1
IR remote controlX1(no battery)
USB power cable(no power adpater)

Questions about this item

Will the OZQ4 pass 4K@60Hz from my older HDMI 1.4 sources to a 4K display?

Yes, the switch accepts HDMI 1.4 and 2.0 inputs and outputs up to 4K@60Hz at 18.5Gbps bandwidth.

How can I confirm the ARC audio extractor is sending sound to my soundbar?

Connect the soundbar to the optical TOSLINK or 3.5mm stereo output, select the active HDMI input, and verify audio plays from the external speakers.

Does the box include a power adapter for the USB power cable?

No, the package contains the switch, IR remote (battery not included), and a USB power cable only; a USB power adapter must be purchased separately.
