Jansicotek
Jansicotek OZQ4 4×1 HDMI Switch Audio Extractor ARC 4K60 18.5Gbps
A four-input HDMI 2.0 switch with audio extraction to optical and 3.5 mm, supporting 4K at 60 Hz, 18.5 Gbps bandwidth and ARC
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4-Port UHD
- SpecificationsInput:HDMI 2.0 ports X4 Output:HDMI 2.0 port X1, optical tos
- Input Connector4 x HDMI
- Switch four sources to one display with 18.5 Gbps bandwidth
- Extract audio to optical or 3.5 mm for external speakers
- ARC support sends TV sound back through the optical port
- Auto-detects active input and switches instantly
- Control via front button or IR remote
Switch purpose

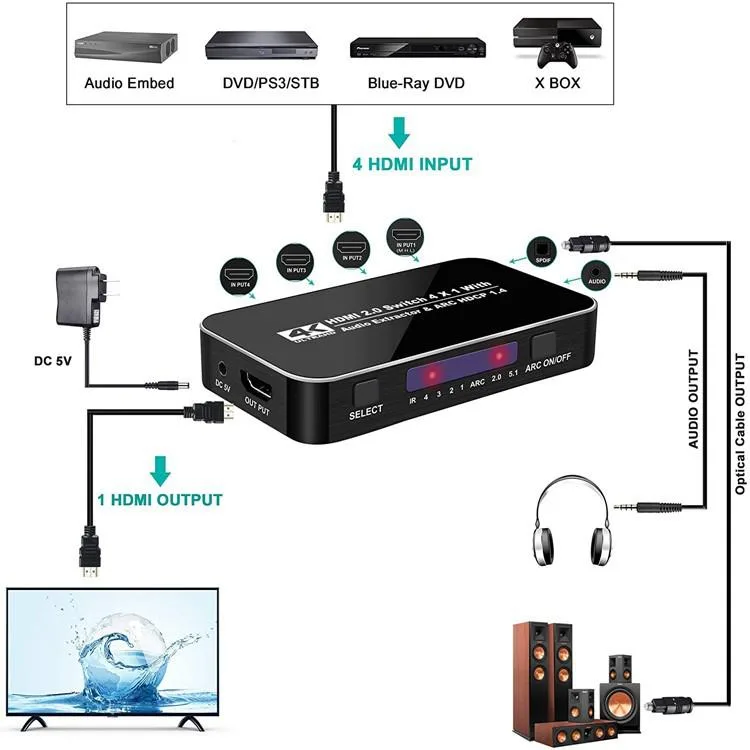

The Jansicotek OZQ4 is a 4×1 HDMI switch with an integrated audio extractor. It routes four HDMI 2.0 sources to a single display at up to 4K 60 Hz while sending sound to an external audio system through optical or 3.5 mm outputs.
Best fit and limits
Suits owners of multiple 4K 60 Hz devices such as consoles, streamers or Blu-ray players who need one HDMI input on their TV and separate audio for a soundbar or amplifier. Not suited for installations that require more than four inputs, HDMI 2.1 bandwidth, or eARC capability.
Deciding specification
The 18.5 Gbps HDMI 2.0 bandwidth caps video at 4K 60 Hz 4:2:0 with HDCP 2.2 and enables ARC only through the optical port. This single limit determines whether the switch matches your source and display requirements.
Highlights
- Switch four sources to one display with 18.5 Gbps bandwidth
- Extract audio to optical or 3.5 mm for external speakers
- ARC support sends TV sound back through the optical port
- Auto-detects active input and switches instantly
- Control via front button or IR remote
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZQ4 |
| Model | OZQ4 |
| Part Number | OZQ4 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4-Port UHD |
| Specifications | Input:HDMI 2.0 ports X4 Output:HDMI 2.0 port X1, optical toslink audioX1 3.5mm stereo audioX1 ARC function:Yes(toslink port only) Resolutions:4KX2K/60Hz in&out HDCP:HDCP 2.2 compliant HDMI version:HDMI 2.0 HDR:supports HDR up to 10 bite |
| Input Connector | 4 x HDMI |
| Output Connector | 1 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | 1.Support ARC functions, Compatible with HDTV which support HDMI and HDCP 2.Support compressed audio; DTS digital, Dolby digital (DTS-HD and DOLBY) 3.Support high-resolution input: 480P/ 576P/ 720P/ 1080P/ 1080p 3D/ 4K@60Hz, HDMI V2.0, HDCP V1.4 4.Support video transmission: 18Gbps/ 600MHZ 5.Support high-definition signal with remote control 6.Support automatic identification of the signal source |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | HDMI 2.0 switcher 4X1 with audioX1 IR remote controlX1(no battery) USB power cable(no power adpater) |
Questions about this item
Should I pick the four-input model or a two-input version?
This unit provides four HDMI 2.0 inputs and one HDMI 2.0 output, so you can connect four sources to a single display without swapping cables.
What does 18.5 Gbps bandwidth deliver on my 4K screen?
The 18.5 Gbps link carries 4K@60 Hz video with HDR in 4:2:0 12-bit colour, matching the HDMI 2.0 spec for full-motion UHD content.
Does the optical port pass ARC audio from my TV?
Yes, the TOSLINK output supports ARC, sending TV-originated audio to a soundbar or receiver while the HDMI path carries video.
