Jansicotek
Jansicotek OZQ3-5 5-port 4K 60Hz HDMI video switch
Connects five HDMI sources to one display at 4K 60 Hz with 18.5 Gbps bandwidth, HDR10, Dolby Vision and IR remote switching up to 28 ft
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports5
- Specifications1. 4K 60Hz UHD resolution - 4K@60Hz UHD signal (also backwar
- Input Connector5 x HDMI2.0
- Connect up to five sources to one display with 5-port HDMI 2.0 switching
- Enjoy 4K at 60 Hz resolution backed by 18.5 Gbps bandwidth
- Switch instantly via front button or IR remote from 28 ft away
- Hear lossless audio with Dolby TrueHD and DTS-HD pass-through support
- Compact 5.91 x 2.36 x 0.79 in design fits any setup
Five-port 4K 60 Hz HDMI switch

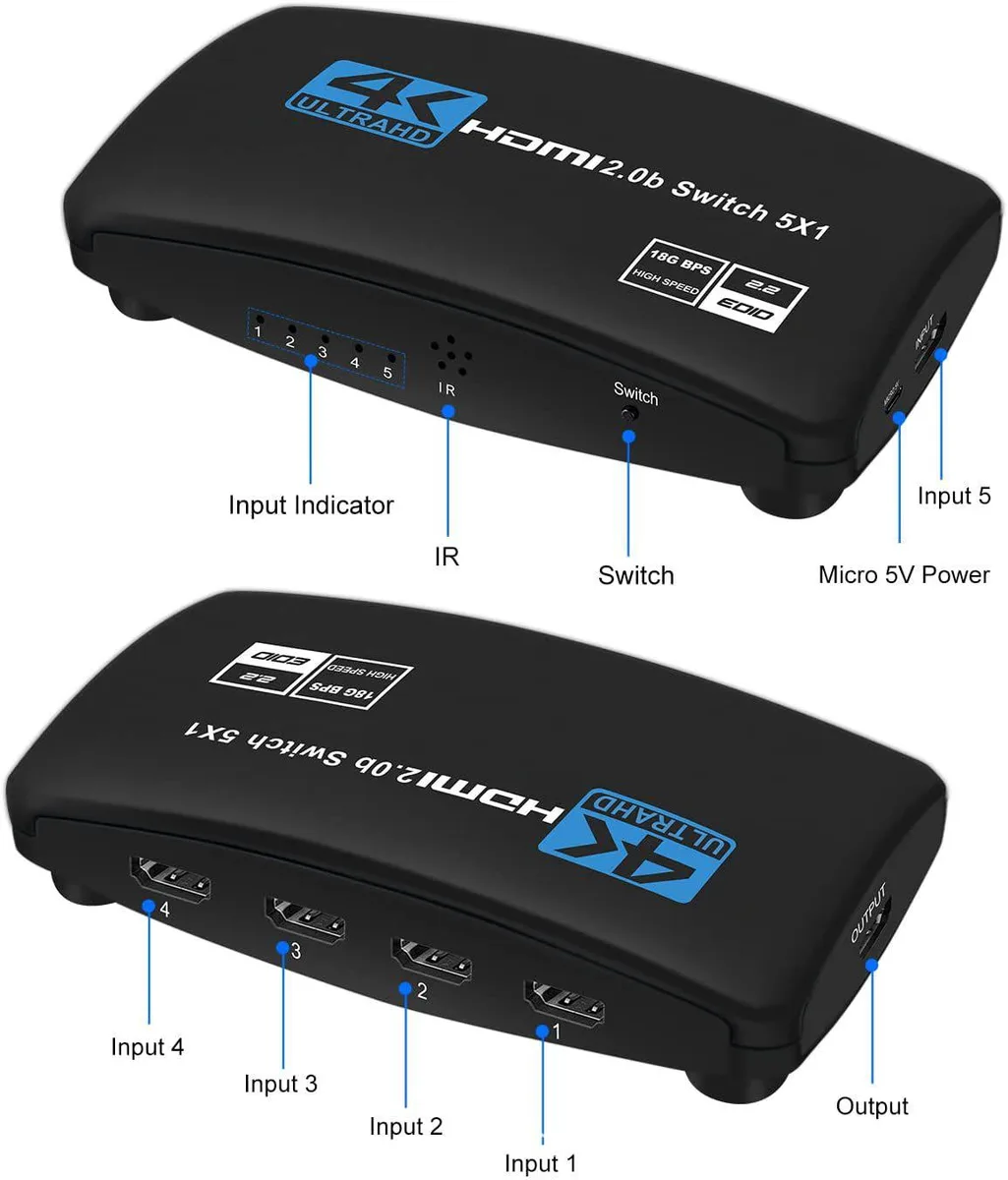

The Jansicotek OZQ3-5 connects up to five HDMI 2.0 source devices to a single display or projector. It accepts 4K@60 Hz signals and remains backward compatible with 1080P, 720P, 576P and 480P sources. Switching is handled by a front-panel button or the supplied IR remote.
Passive operation with external 5 V supply
The unit draws power from an included 5 V DC adapter and has no internal fan, so it adds no audible noise to the room. Maximum video bandwidth is 18.5 Gbps at 600 MHz, supporting HDR10, Dolby Vision and 36-bit deep colour without active cooling.
IR remote and EDID copy included
A handheld remote lets you change inputs from up to 28 ft away, while the built‑in EDID copy function helps maintain stable handshakes across all five ports. The package also supplies a user manual for first‑time setup.
Highlights
- Connect up to five sources to one display with 5-port HDMI 2.0 switching
- Enjoy 4K at 60 Hz resolution backed by 18.5 Gbps bandwidth
- Switch instantly via front button or IR remote from 28 ft away
- Hear lossless audio with Dolby TrueHD and DTS-HD pass-through support
- Compact 5.91 x 2.36 x 0.79 in design fits any setup
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZQ3-5 |
| Model | OZQ3-5 |
| Part Number | OZQ3-5 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 5 |
| Specifications | 1. 4K 60Hz UHD resolution - 4K@60Hz UHD signal (also backward compatible with 1080P/720P/576P/480P) input and output. 2. Manual switching via selection button or IR remote control. 3. Support audio formats, such as DTS-HD, Dolby TrueHD, DTS, Dolby Digital AC3. 4. Support 3D. 5. Support HDMI 2.0 and HDCP 2.2 and lower. 6. Each channel supports 36-bit deep color. 7. Support MHL function, with LED indicator. |
| Input Connector | 5 x HDMI2.0 |
| Output Connector | 1 x HDMI2.0 |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | 5 Input 1 Output Switcher: 5x1 HDMI switcher can connect up to 5 HDMI input devices to one HD monitor/TV/projector. Helps resolve your multiple HDMI device issues. Support seamless switching between games and movies without interruption. 4K@60Hz Ultra HD Resolution: HDMI switcher supports 4K@60Hz, 1080P@60Hz, 1080P@30Hz, HDR10, 3D, RGB(8:8), 36-bit deep color per channel. Enjoy a crystal-clear display with amazing fluidity and switch freely between five devices at the same time. (Note: PIP is not supported) Wide Compatibility: HDMI switcher 5 ports work perfectly with all HDMI integr |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x 5-in-1 output HDMI switcher. 1 x 5V DC Power Adapter 1 x Remote Control 1 x User Manual |
Questions about this item
How do I connect the five HDMI sources and the display to the OZQ3-5, and which step is often missed?
Plug each source into one of the five HDMI 2.0 inputs, connect the single HDMI 2.0 output to your display, then attach the included 5 V DC power adapter; the step people forget is powering the unit before expecting a signal.
What ongoing maintenance or replacement items should I plan for with this switch?
The only replaceable part is the IR remote's battery; the switch itself has no user-serviceable components or filters, so no scheduled maintenance is required beyond keeping vents clear.
What is the first limitation I will hit when running 4K 60 Hz content continuously through the OZQ3-5?
The 18.5 Gbps bandwidth ceiling caps you at 4K 60 Hz 8-bit colour; higher bit-depth or refresh-rate signals will not pass, and the switch does not support picture-in-picture.
