Jansicotek

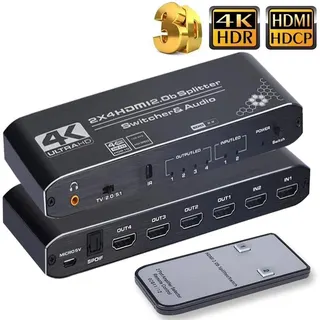

Jansicotek OZQ12 2x4 HDMI Switch Splitter with Audio Extractor
Routes two HDMI sources to four displays at 4K 60 Hz with 3.5 mm and optical audio extraction
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
- Input Connector4 x HDMI
- Routes two sources to four displays simultaneously
- 5 Gbps bandwidth carries 4K at 60 Hz RGB 4:4:4
- HDCP 2.2 and HDMI 2.0b keep protected content flowing
- Extracts audio to 3.5 mm jack and Toslink for external sound
- IR remote and front button switch inputs in about three seconds

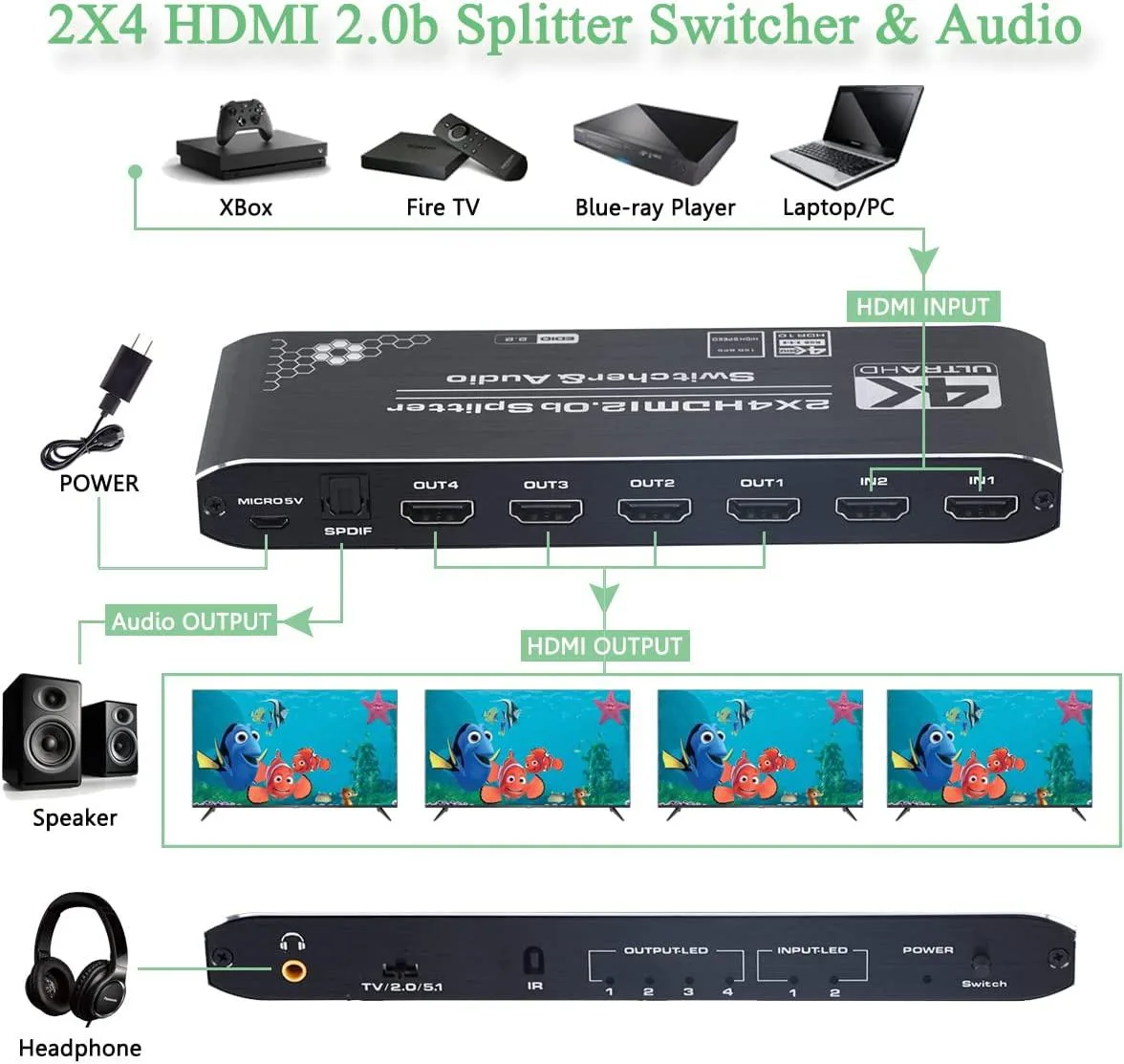

2x4 HDMI Switch Splitter with Audio Extraction
The Jansicotek OZQ12 routes two HDMI sources to four displays simultaneously. It supports 4K at 60 Hz with YUV 4:4:4 chroma subsampling and HDR pass-through. An integrated audio extractor provides stereo output via 3.5 mm jack and digital output via Toslink. HDCP 2.2 compliance protects premium content across all connected devices.
Sustained signal integrity over distance
The unit maintains 4K 60 Hz HDR signals up to 10 metres on standard HDMI 2.0b cables, while 1080p extends to 20 metres. An 18.5 Gbps bandwidth ceiling and 600 MHz TMDS clock handle deep-colour bit depths up to 48-bit without dropouts. Active equalisation compensates for cable loss during continuous operation in conference rooms or video walls.

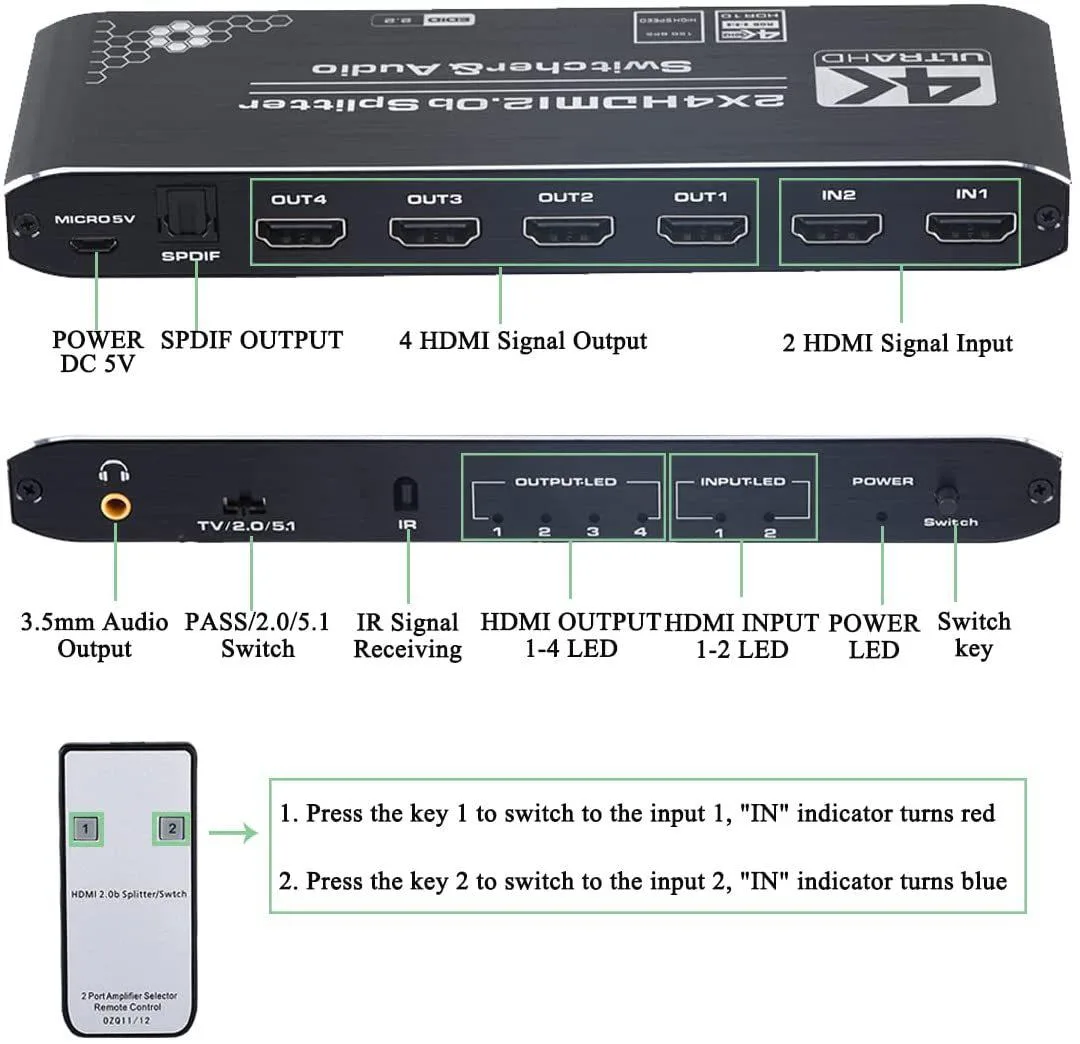

Plug-and-play installation with IR control
Power the device with the included 5 V adapter, connect sources and displays, then select inputs via the front-panel button or the supplied IR remote. Switching completes in roughly three seconds. Common issues include handshake delays when mixing displays with different EDID capabilities and audio extraction muting if the source forces multichannel output without downmix support.
Highlights
- Routes two sources to four displays simultaneously
- 5 Gbps bandwidth carries 4K at 60 Hz RGB 4:4:4
- HDCP 2.2 and HDMI 2.0b keep protected content flowing
- Extracts audio to 3.5 mm jack and Toslink for external sound
- IR remote and front button switch inputs in about three seconds
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZQ12 |
| Model | OZQ12 |
| Part Number | OZQ12 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Specifications | 2 HDMI inputs switch and split to 4 HDMI displays HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable. Downscaling output from 4K to 1080p at the same time. Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD Support HDCP 2.2 & HDMI 2.0b Support deep color 24/12/10/8 Bit. Max bandwidth& baud rate: 600MHz&18.5Gbps Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More |
| Input Connector | 4 x HDMI |
| Output Connector | 1 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 2 HDMI inputs switch and split to 4 HDMI displays Support LPCM/Dolby/DTS 5.1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Splitter Switch 2x4 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
How much power does the OZQ12 draw when it runs continuously?
The unit ships with a 5V 1A DC power adapter, so maximum draw is 5 watts.
Which cables and sources must I already have to use the 2×4 switch?
You need two HDMI source devices, up to four HDMI displays, and standard HDMI 2.0b cables for 4K 60 Hz signals.
Will the OZQ12 pass 1080p signals to older displays alongside 4K screens?
Yes, it supports 1080p up to 20 metres and 4K 60 Hz up to 10 metres on the same outputs.
