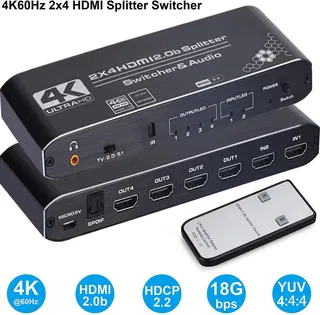

Black rectangular HDMI switch with multiple ports and remote control

Jansicotek

Jansicotek OZQ12 2x4 HDMI Switch Splitter with 3.5mm & Optical Audio Out

SKU CH-HGZG-179DC

Routes two HDMI sources to four displays at 4K 60 Hz with 3.5 mm and optical audio extraction, HDMI 2.0b and remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Switch two sources across four displays simultaneously
  • Extract audio via 3.5 mm and optical outputs
  • Supports 4K at 60 Hz with 4:4:4 chroma
  • 5 Gbps bandwidth handles HDR and deep colour

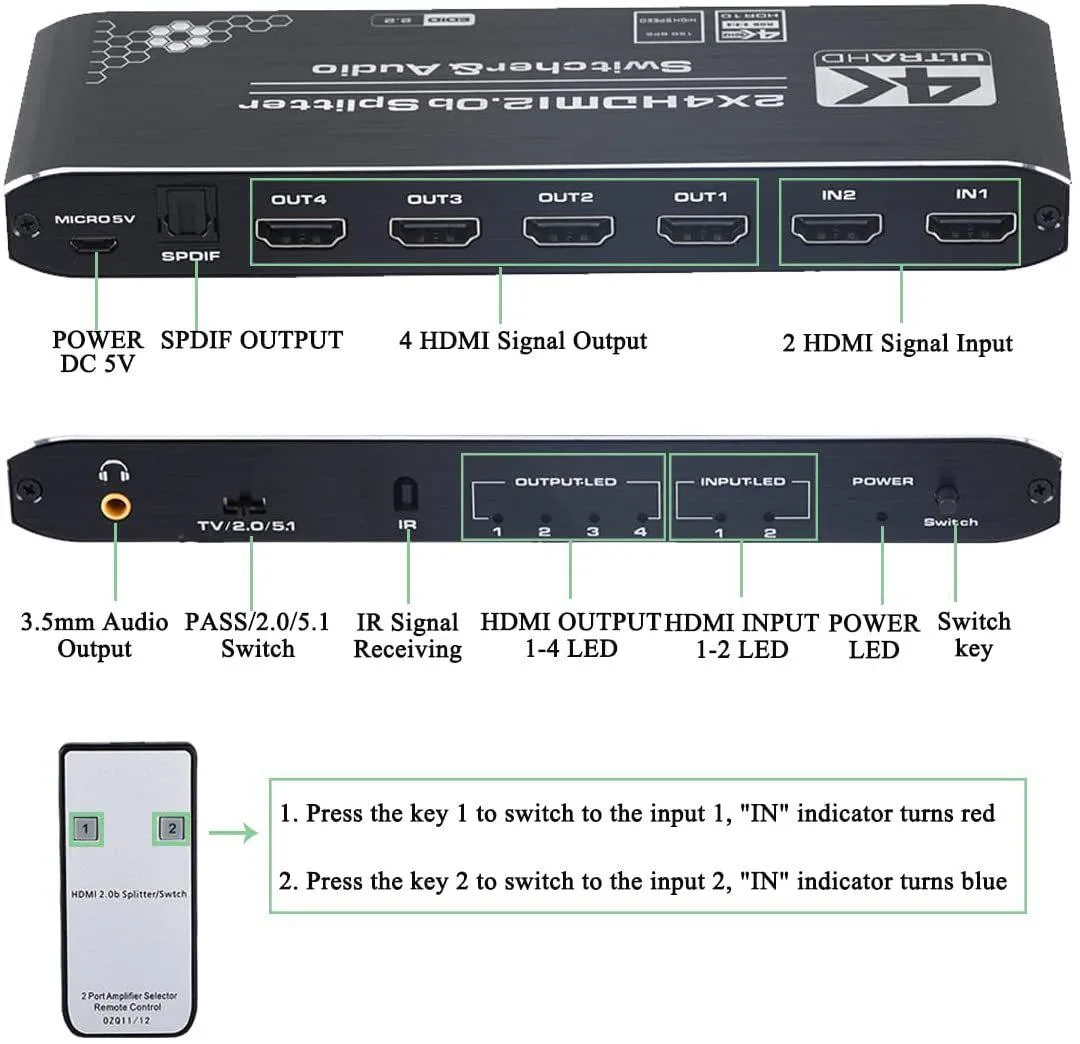

  • IR remote and front button give instant input selection

Product Identity

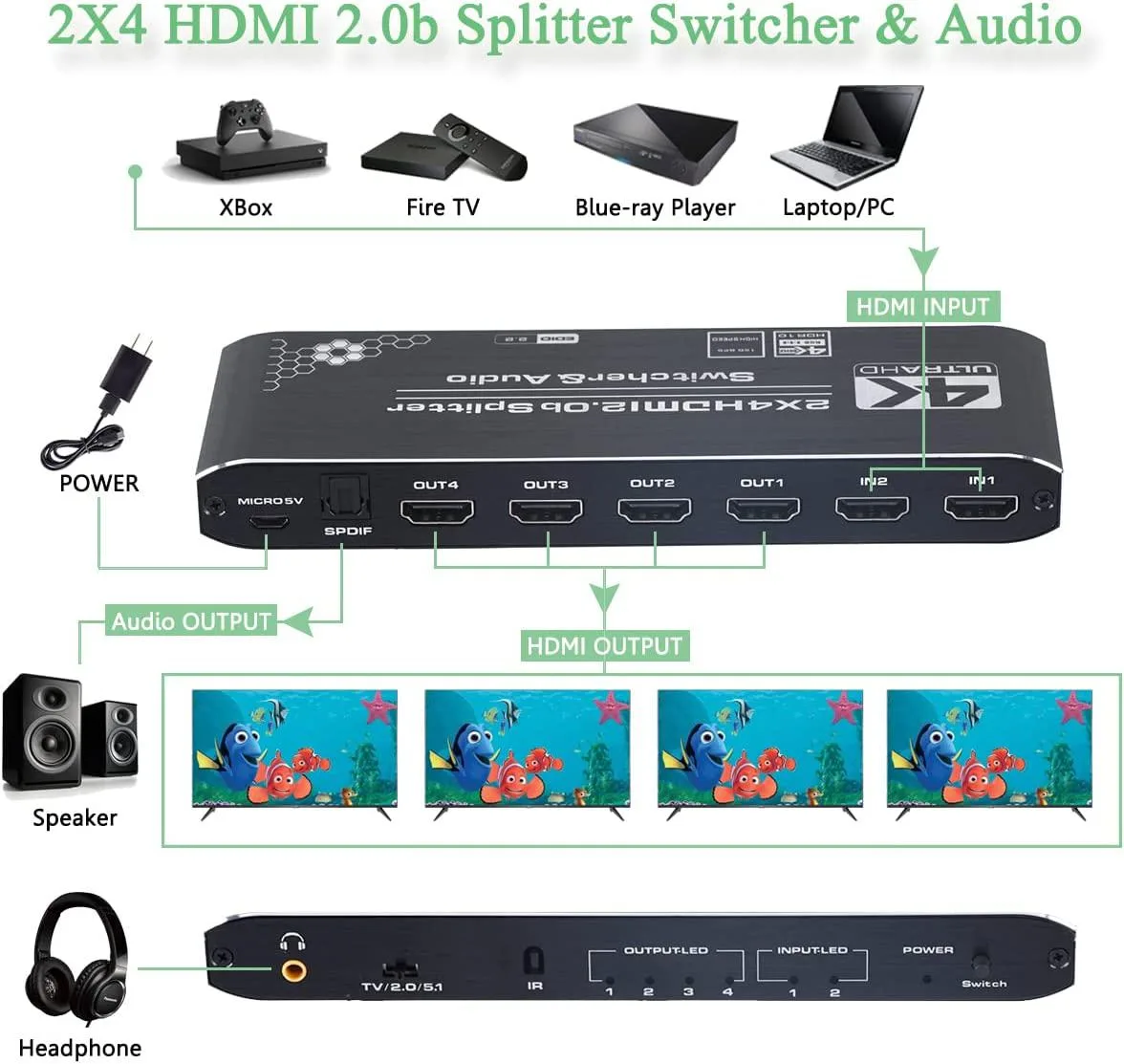

The Jansicotek OZQ12 is a 2x4 HDMI switch splitter that routes two HDMI sources to four displays simultaneously. It supports 4K@60Hz resolution with 18.5Gbps bandwidth and HDCP 2.2 compliance for protected content. The unit extracts audio through 3.5mm and optical outputs for external sound systems. Designed for installations requiring multiple displays from few sources.

Setup Verification

Confirm your source devices and displays use HDMI connectors compatible with the 2.0b specification. Standard HDMI 2.0b cables are required for 4K@60Hz signal integrity over distance. The switch requires the included 5V power adapter for operation. Input and output cable runs up to 10m for 4K and 20m for 1080p are supported per the specifications.

Bundled Extras

The included IR remote control enables input switching from a distance without pressing the front panel button. A 5V power adapter supplies the necessary power for active signal distribution across four outputs. The user manual provides installation guidance for the 2x4 configuration. These accessories complete a functional audio-video distribution system out of the box.

Highlights

  • Switch two sources across four displays simultaneously
  • Extract audio via 3.5 mm and optical outputs
  • Supports 4K at 60 Hz with 4:4:4 chroma
  • 5 Gbps bandwidth handles HDR and deep colour
  • IR remote and front button give instant input selection

Specifications

BrandJansicotek
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the box include cables or only the switch, power adapter, remote and manual?

The package contains the 2x4 HDMI switch splitter, a 5V power adapter, an IR remote control and a user manual. HDMI cables are not included and must be purchased separately.

Should I choose the 2x4 model or is there a different port count in the OZQ12 series?

The OZQ12 is offered only as a 2-input, 4-output switch splitter. There are no other port configurations for this model.

What does the 18.5 Gbps bandwidth mean when I connect 4K 60 Hz sources to all four displays?

The 18.5 Gbps bandwidth supports full 4K 60 Hz 4:4:4 video on each output simultaneously, provided standard HDMI 2.0 cables are used within the 10 metre 4K distance limit.
