Black rectangular HDMI switch with multiple ports and IR remote

Jansicotek

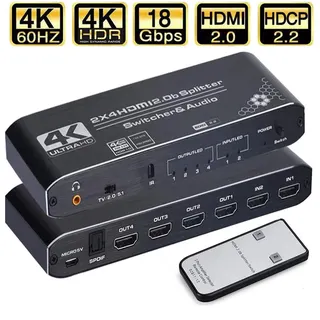

Jansicotek OZQ12 2x4 HDMI Switch Audio Extractor

SKU CH-1JZ6-5BC9X

Routes two HDMI sources to four 4K 60 Hz displays and extracts audio via optical and 3.5 mm AUX outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • 2 HDMI sources drive 4 displays simultaneously via 2×4 matrix
  • 4K 60 Hz HDR video with 18.5 Gbps bandwidth and RGB 4:4:4
  • Optical SPDIF and 3.5 mm audio extraction from HDMI stream

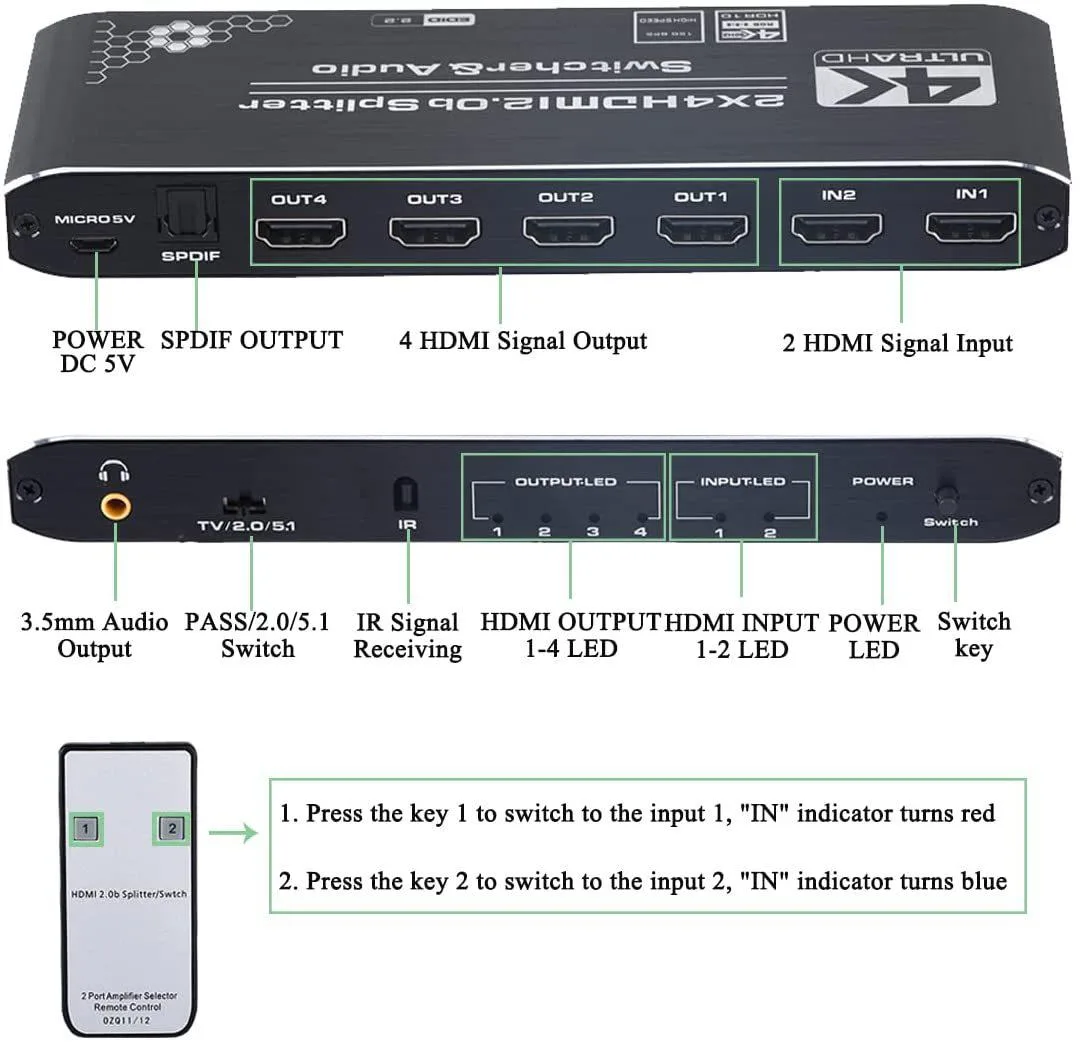

  • IR remote and front button give instant input switching
  • HDMI 2.0b and HDCP 2.2 protect 4K 60 Hz content

2x4 HDMI Switch & Audio Extractor

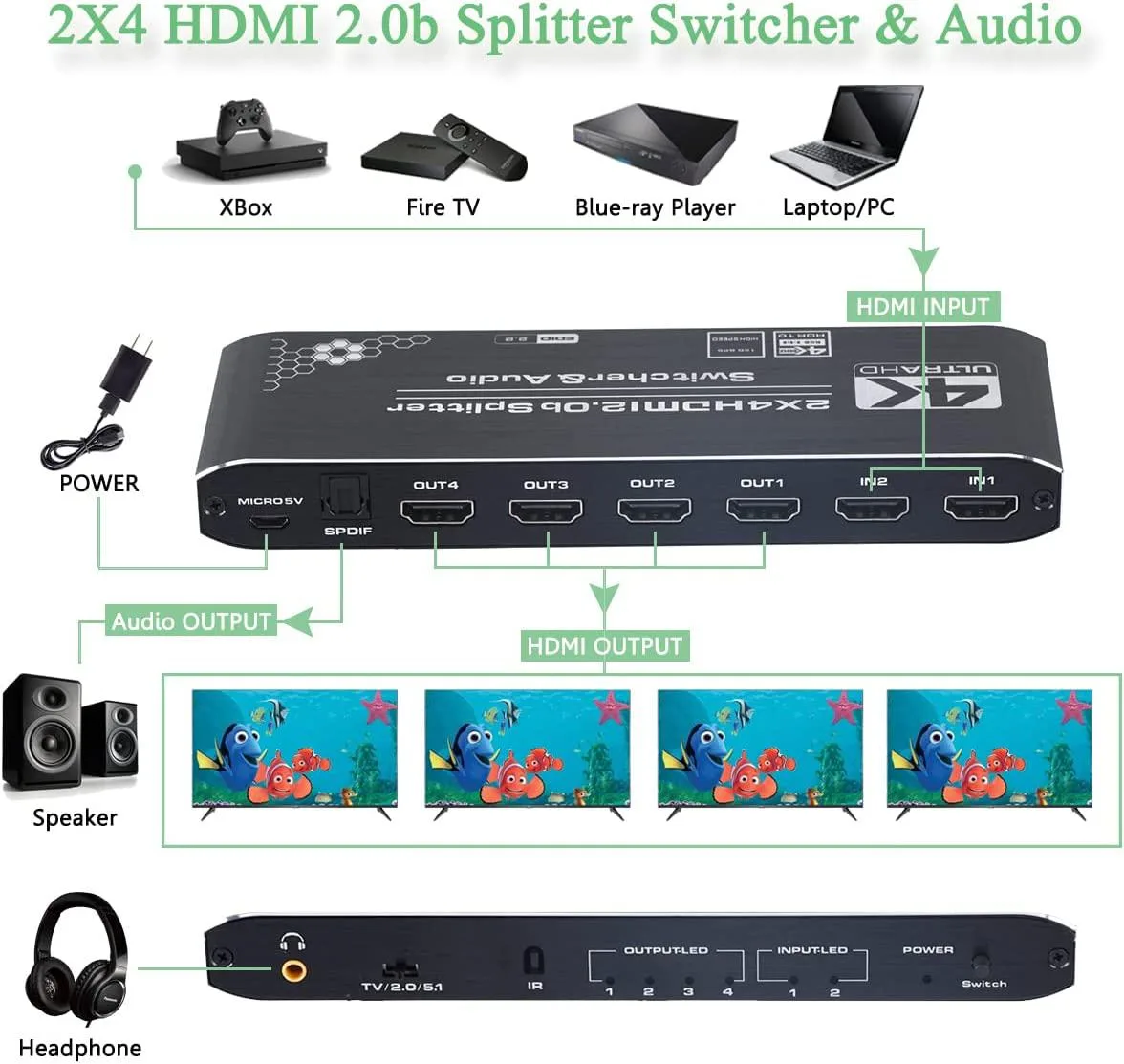

This Jansicotek OZQ12 unit routes two HDMI sources to four displays simultaneously. It suits home-theatre owners, conference-room installers and digital-signage operators who need to share a pair of players, consoles or PCs across multiple screens without constant cable swapping. The integrated audio extractor adds 3.5 mm and optical outputs for external sound systems.

Resolution headroom and bandwidth

The switch handles 4K at 60 Hz with YUV 4:4:4 chroma and HDR, backed by 18.5 Gbps bandwidth and a 600 MHz TMDS clock. Deep-colour modes up to 48 bit are supported, so high-fidelity video passes through cleanly. Cable runs up to 10 metres at 4K and 20 metres at 1080p are feasible with standard HDMI 2.0b leads. The HDCP 2.2 engine protects premium content but adds no user-configurable options.

Bundled remote and power supply

An IR remote lets you change the active input from across the room, while a front-panel button provides local switching. The included 5 V power adapter ensures stable operation for all four outputs, and the manual covers basic setup. No additional software, drivers or mounting hardware are supplied, so integration relies on the physical connections alone.

Highlights

  • 2 HDMI sources drive 4 displays simultaneously via 2×4 matrix
  • 4K 60 Hz HDR video with 18.5 Gbps bandwidth and RGB 4:4:4
  • Optical SPDIF and 3.5 mm audio extraction from HDMI stream
  • IR remote and front button give instant input switching
  • HDMI 2.0b and HDCP 2.2 protect 4K 60 Hz content

Specifications

BrandJansicotek
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the 18.5Gbps bandwidth handle 4K@60Hz from my older Blu-ray player and game console simultaneously?

Yes, the switch supports 4K@60Hz YUV 4:4:4 and 1080p@120Hz on both inputs, so legacy 4K sources at 60Hz pass through without bandwidth limits.

How do I confirm the optical SPDIF and 3.5mm outputs are extracting audio correctly after connecting?

Play multichannel content; the front-panel LEDs show the active input, and you should hear sound from both the optical and 3.5mm ports if the source carries audio.

Does the package include the 5V power adapter and IR remote, or must I buy them separately?

The box contains the 2×4 HDMI switch, a 5V/1A DC power adapter, an IR remote control, and a user manual — no extra purchases required.
