Black rectangular HDMI switch splitter with multiple ports and IR remote

Jansicotek

Jansicotek OZQ12 2x4 HDMI 2.0 Switch Splitter Audio Extractor

SKU CH-CGH6-RB414

Routes two HDMI sources to four displays at 4K 60 Hz with 18.5 Gbps bandwidth and optical or 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Switch 2 sources to 4 displays with IR remote
  • Extract audio via 3.5 mm and SPDIF outputs
  • Deliver 4K at 60 Hz with HDR support
  • Transmit 4K HDR up to 10 m over HDMI
  • Handle 18.5 Gbps bandwidth for deep colour

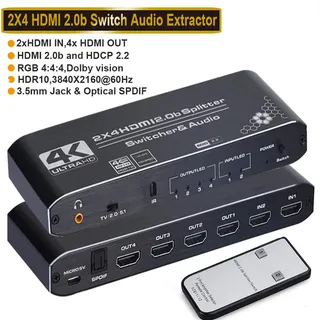

2×4 HDMI Switch with Audio Extraction

The Jansicotek OZQ12 routes two HDMI sources to four displays at once. It handles 4K at 60 Hz with YUV 4:4:4 colour and HDR, plus 3D formats and deep colour up to 48-bit. IR remote and front-panel button give instant input switching. Ideal for installers who need one box to distribute and extract audio.

Black Metal Chassis with SPDIF and 3.5 mm Outputs

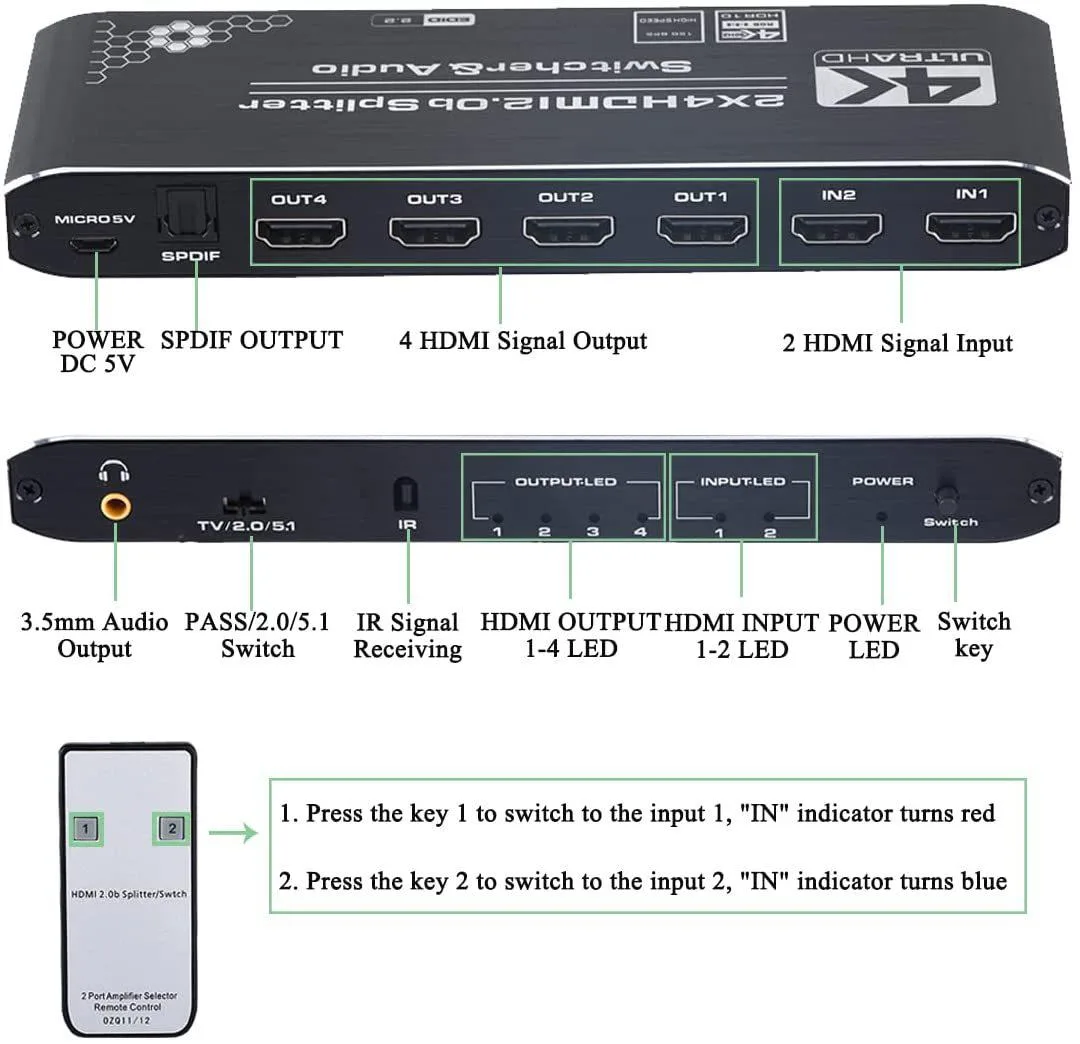

The unit measures 5.91 × 2.36 × .79 inches and weighs 11.9 ounces. Two HDMI inputs and four HDMI outputs sit alongside a TOSLINK port and a 3.5 mm jack for analogue extraction. HDCP 2.2 compliance protects premium content. 18.5 Gbps bandwidth supports 10 m cable runs at 4K HDR or 20 m at 1080p.

5 V Power Adapter, IR Remote and Manual Included

A 5 V supply powers the switcher without drawing from source devices. The bundled remote lets users change inputs from across the room. The manual covers EDID handling and audio-format selection. No software or drivers are required, keeping setup simple for home-theatre, conference-room or video-wall deployments.

Highlights

  • Switch 2 sources to 4 displays with IR remote
  • Extract audio via 3.5 mm and SPDIF outputs
  • Deliver 4K at 60 Hz with HDR support
  • Transmit 4K HDR up to 10 m over HDMI
  • Handle 18.5 Gbps bandwidth for deep colour

Specifications

BrandJansicotek
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the HDMI 2.0b interface with 18.5Gbps bandwidth cap 4K@60Hz RGB 4:4:4 output?

Yes, the HDMI 2.0b interface provides 18.5Gbps bandwidth and supports 4K@60Hz with YUV 4:4:4 colour sampling.

What are the physical dimensions and mounting requirements for the 5.91 x 2.36 x 0.79 inch unit?

The unit measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces; it sits on a flat surface and requires a nearby outlet for the 5V power adapter.

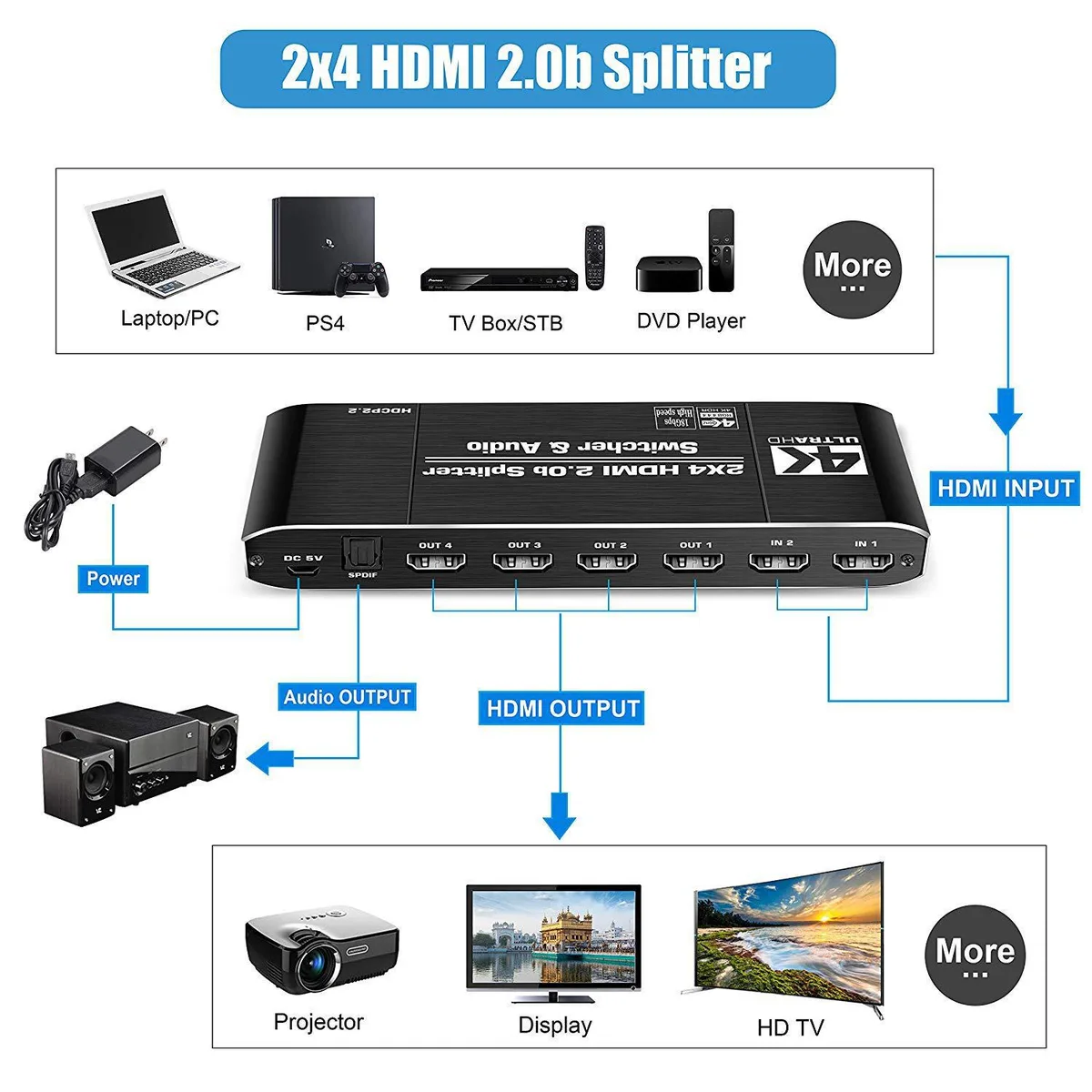

How do I connect the 2 inputs and 4 outputs, and which step is often missed?

Connect up to two HDMI sources to the input ports, four displays to the output ports, attach the 5V power adapter, then use the IR remote or front button to select the active input; the step often missed is powering the unit before switching signals.
