Jansicotek
Jansicotek OZQ11 2x2 HDMI Switch 4K 60Hz Audio Extractor
A 2×2 HDMI switch routes two sources to two displays at 4K 60 Hz while extracting audio to optical and 3.5 mm outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- Input Connector2 x HDMI
- Output Connector2 x HDMI
- Connect two sources to two displays simultaneously
- 4K 60 Hz video with 18.5 Gbps bandwidth
- Downscale 4K to 1080p on one output automatically
- Extract audio via optical or 3.5 mm jack

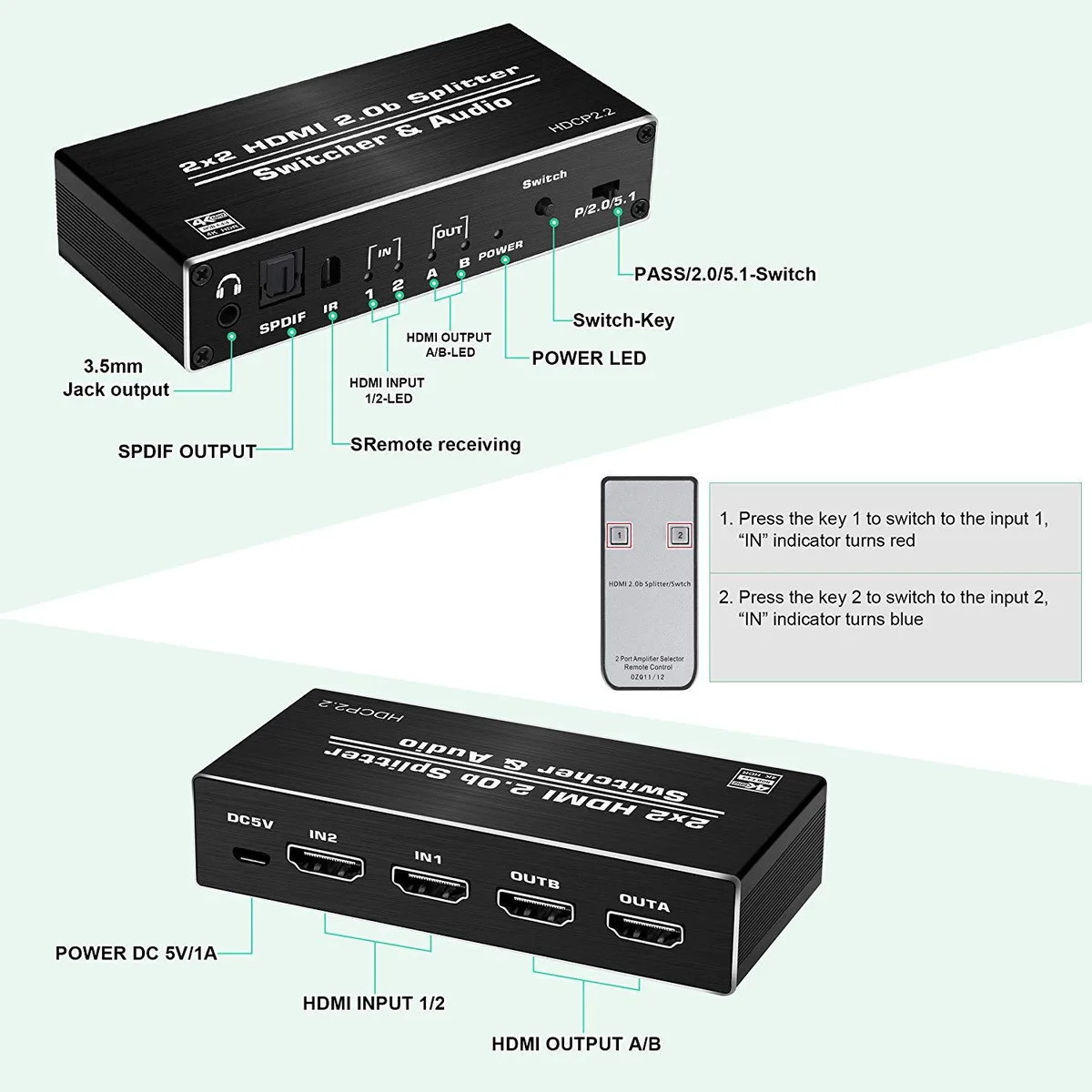

- Switch sources by front button or IR remote
Two-port 4K HDMI matrix
The Jansicotek OZQ11 is a 2x2 HDMI 2.0 switch that routes two sources to two displays at up to 4K 60 Hz. It also extracts audio through optical Toslink and 3.5 mm jacks for connection to an amplifier or headphones.
Sustained 18.5 Gbps bandwidth handling
The unit maintains an 18.5 Gbps data rate with a TMDS clock of 600 MHz, supporting 8, 10 and 12 bit deep colour without lag or signal drop. Downscaling allows simultaneous 4K and 1080p output from a single 4K source, though 4K 60 Hz 4:2:2 cannot be downscaled to 1080p.
Plug-and-play with IR remote

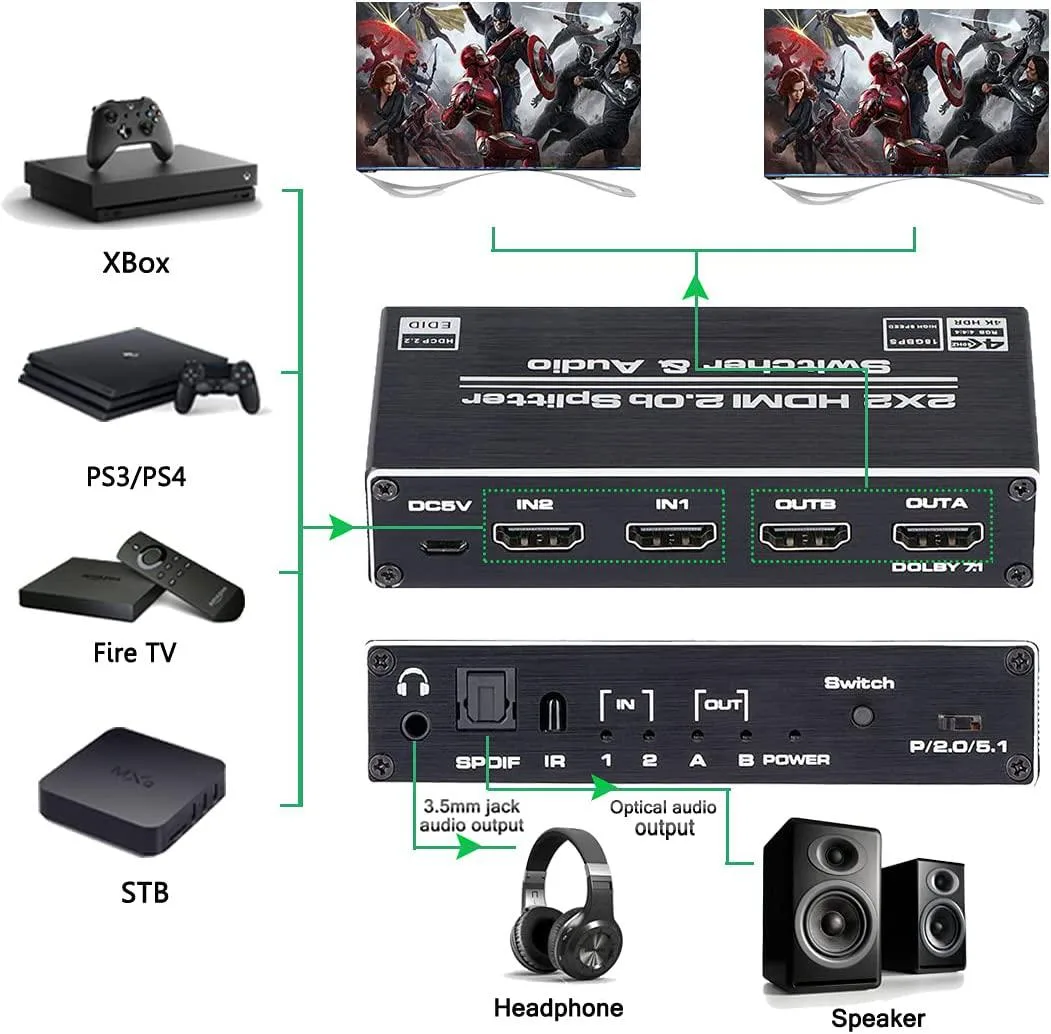

Connect the included 5 V 1 A power adapter, link sources and displays with HDMI cables, then switch inputs by front button or IR remote. Ensure 4K displays use output A for proper downscaling; the switch does not convert 4K 60 Hz 4:2:2 to 1080p, so that combination will not work.
Highlights
- Connect two sources to two displays simultaneously
- 4K 60 Hz video with 18.5 Gbps bandwidth
- Downscale 4K to 1080p on one output automatically
- Extract audio via optical or 3.5 mm jack
- Switch sources by front button or IR remote
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZQ11 |
| Model | OZQ11 |
| Part Number | OZQ11 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Downscaling ( can output 4K and 1080p at the same time ) Support HDMI 2.0 / HDCP 2.2 Support 3D video format Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4 Support 3.5mm earphone jack and optical audio output Support 18Gbps data rate and Tmds clock up to 600MHz Support video format: 8 / 10 / 12 bit deep color Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x HDMI Switch Splitter 2 in 2 out 1 x IR Remote Control 1 x 5V / 1A Power adapter 1 x User Manual |
Questions about this item
How much power does the Jansicotek OZQ11 draw when running 24/7?
The unit ships with a 5V 1A external adapter, so maximum draw is 5 watts and it runs without a fan.
Which cables and displays must I already own to use the 2×2 switch?
You need two HDMI source devices, two HDMI displays, and HDMI cables for every connection; optical or 3.5 mm cables are optional for extracted audio.
Will a 1080p monitor work alongside a 4K 60 Hz screen on the two outputs?
Yes — the downscaler lets one 4K source feed a 4K display on output A and a 1080p display on output B simultaneously.
