Black rectangular HDMI switch with two inputs, two outputs, optical and 3.5mm audio ports, IR remote included

Jansicotek

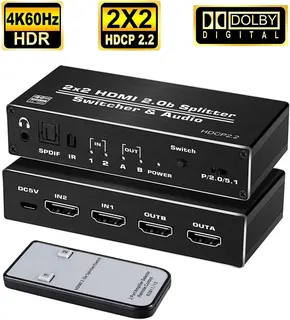

Jansicotek OZQ11 2×2 HDMI Switch Audio Extractor Remote Toslink 3.5mm 4K@60Hz

SKU CH-5Y44-QT8ND

A 2×2 HDMI 2.0 switch routes two sources to two 4K 60 Hz displays while extracting audio to optical Toslink and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI
  • Switch two sources to two displays with IR remote or front button
  • Extract audio via optical Toslink and 3.5 mm jack simultaneously
  • Downscale 4K to 1080p on one output while keeping 4K on the other
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2
  • Compact 5.91 x 2.36 x .79 inch unit includes 5 V 1 A power supply

2×2 HDMI Switch with Audio Extraction

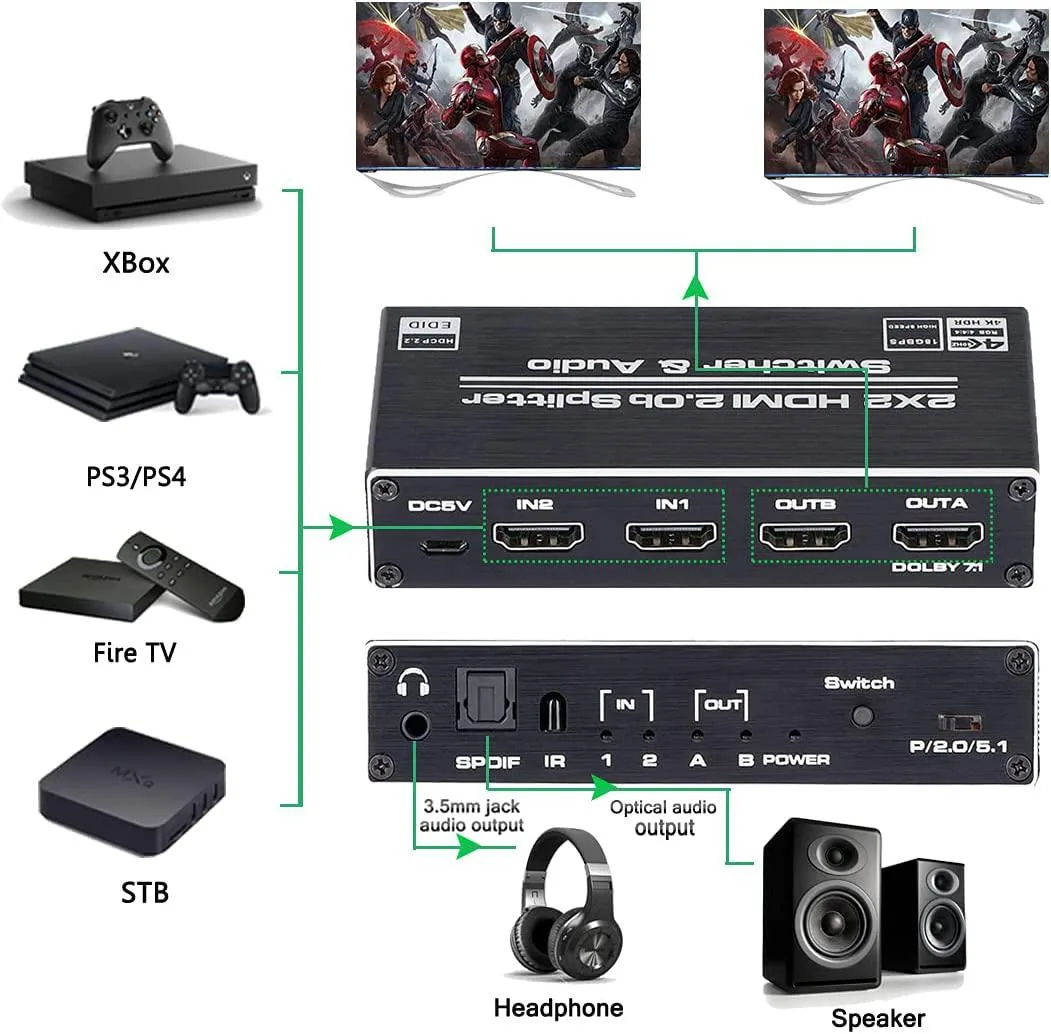

The Jansicotek OZQ11 routes video and audio from two HDMI sources to two HDMI displays at once. It supports 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. Audio can be pulled out through both a 3.5 mm jack and an optical Toslink port simultaneously. The unit is aimed at installers and home users who need to share two sources across two screens without signal loss.

HDMI 2.0b bandwidth and downscaling limits

The switch passes 4K 60 Hz 4:4:4 up to 18.5 Gbps and handles 8, 10 and 12 bit deep colour. Downscaling lets one 4K source feed a 4K display and a 1080p display together, but it cannot downscale a 4K 60 Hz 4:2:2 signal to 1080p. HDCP 2.2 is supported, so protected content plays, yet any source or sink that exceeds the 600 MHz TMDS clock will not work. The 3.5 mm output is limited to two-channel audio, while the optical port can carry 5.1 or two-channel formats.

Simple IR or button control with power adapter

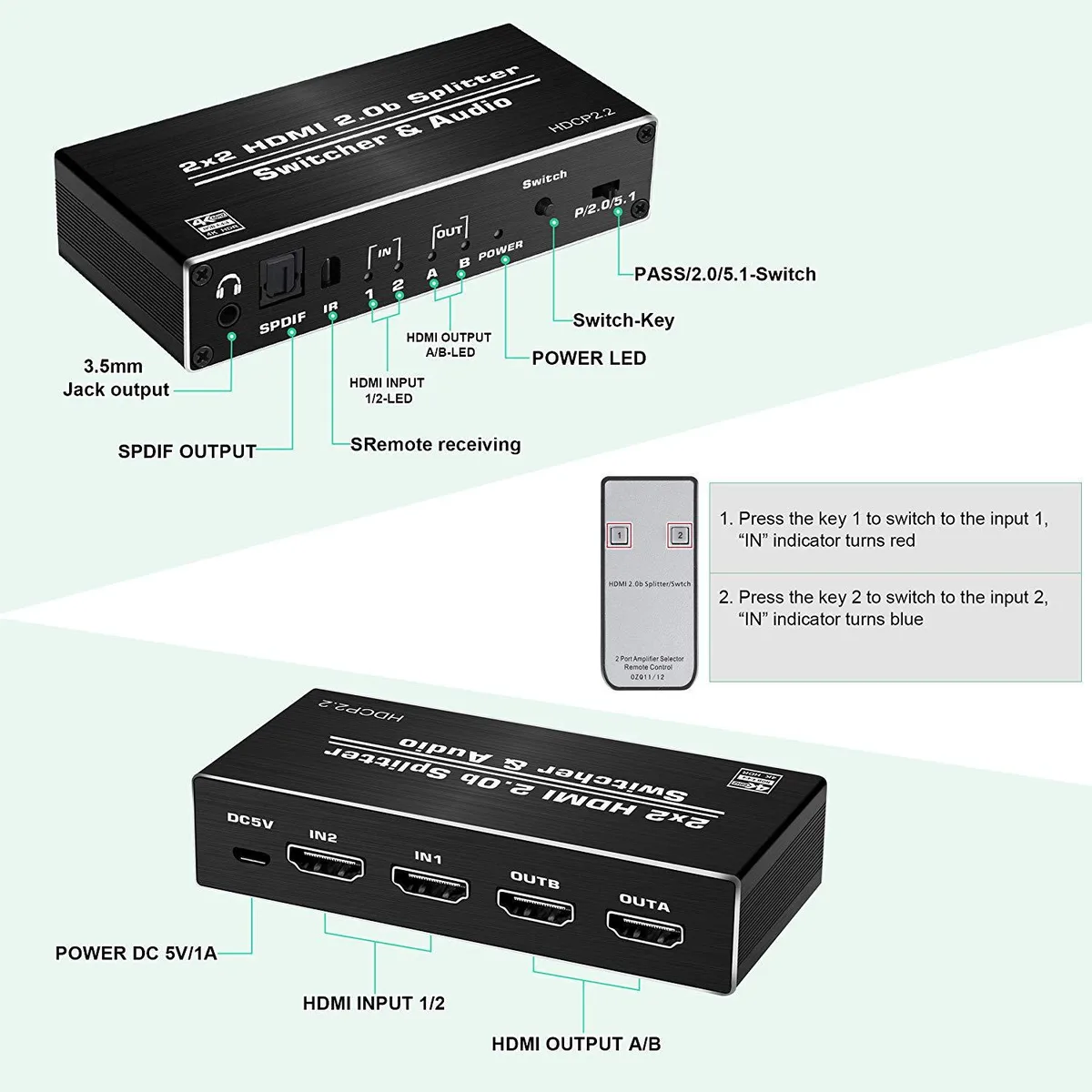

Switching between inputs is done by a front button or the supplied IR remote, and the box includes a 5 V 1 A power adapter for stable operation. A common issue is forgetting to power the unit, which causes no signal or flickering on both outputs. Another is connecting a 4K 60 Hz 4:2:2 source while expecting automatic 1080p downscaling, which the hardware does not support. Ensure the output A port is used for the primary 4K display when mixing resolutions.

Highlights

  • Switch two sources to two displays with IR remote or front button
  • Extract audio via optical Toslink and 3.5 mm jack simultaneously
  • Downscale 4K to 1080p on one output while keeping 4K on the other
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2
  • Compact 5.91 x 2.36 x .79 inch unit includes 5 V 1 A power supply

Specifications

BrandJansicotek
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

Should I pick the 2×2 version or a simpler 1×1 switch for two sources and two displays?

The OZQ11 is a 2×2 matrix: both HDMI inputs can be routed to either or both outputs at once, so you do not need a separate splitter or multiple switches.

What does the 4K@60Hz rating mean when I connect a 4K monitor and a 1080p TV to the two outputs?

The switch downscales automatically — one source can feed 4K@60Hz to output A and 1080p to output B simultaneously, except 4K@60Hz 4:2:2 cannot be downscaled to 1080p.

Does the HDMI 2.0b / HDCP 2.2 interface limit HDR or high-bitrate audio on a 4K@60Hz signal?

The 18.5 Gbps bandwidth and HDMI 2.0b spec carry 4K@60Hz 4:4:4 8‑12 bit colour and HDR, while the optical and 3.5 mm jacks pass 5.1‑channel LPCM, DTS‑HD, Dolby TrueHD and DSD.
