Black rectangular HDMI switch with two inputs, two outputs, optical and 3.5mm audio ports, IR remote

Jansicotek

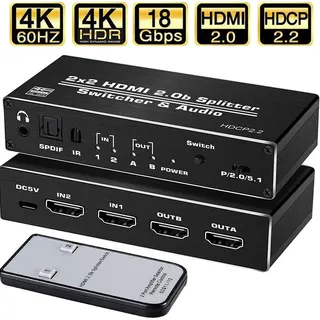

Jansicotek OZQ11 2×2 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-E2TX-BWXC4

A 2×2 HDMI 2.0 switch routes two sources to two displays at 4K@60Hz with 18.5Gbps bandwidth and extracts audio via optical and 3.5mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI

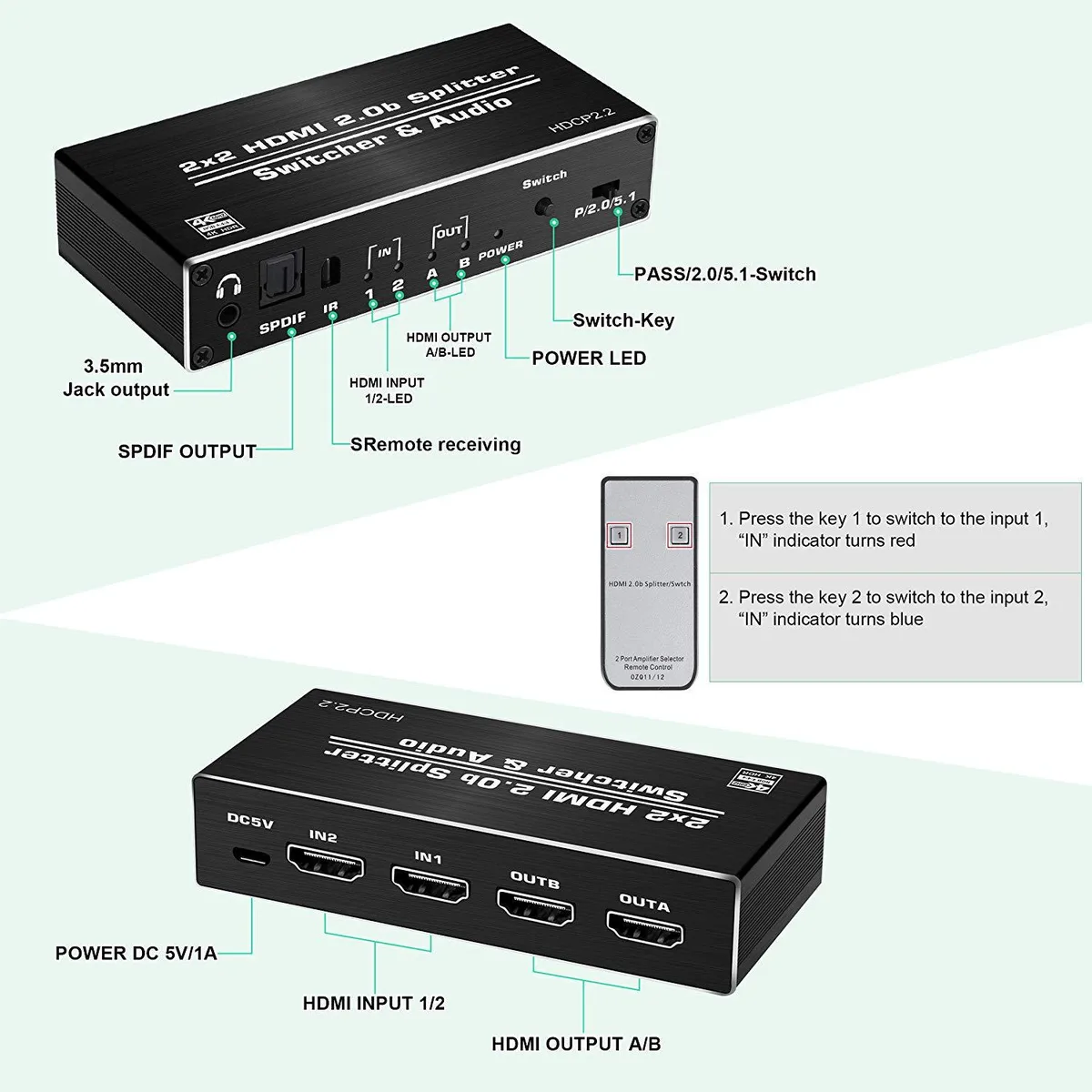

  • Switch two sources to two displays with IR remote or button control
  • Extract audio separately via optical or 3.5 mm jack supporting 5.1-channel sound
  • Downscale 4K to 1080p on one output while keeping 4K on the other
  • Pass 4K@60Hz 4:4:4 HDR video at 18.5 Gbps bandwidth with HDCP 2.2
  • Compact 5.91 × 2.36 × 0.79 in unit includes power adapter and remote

Two-port 4K switch with audio extraction

The Jansicotek OZQ11 routes two HDMI sources to two displays at 4K 60 Hz while splitting audio to optical and 3.5 mm outputs. It supports HDMI 2.0 and HDCP 2.2 for protected content. The unit handles 18.5 Gbps bandwidth and 600 MHz TMDS clock. Downscaling lets one 4K source feed a 4K screen and a 1080p screen simultaneously.

Passive cooling with external power

The aluminium enclosure dissipates heat without fans, so operation is silent. A supplied 5 V 1 A adapter powers the switch, drawing minimal current from the mains. No internal power supply means no coil whine or transformer hum. Typical power draw stays well within the adapter rating during normal switching.

Remote and manual control included

An IR remote lets users change inputs from across the room, while a front-panel button provides local switching. The package also contains a user manual for setup guidance. Both audio outputs can operate together or independently, enabling connection to an amplifier without a display attached.

Highlights

  • Switch two sources to two displays with IR remote or button control
  • Extract audio separately via optical or 3.5 mm jack supporting 5.1-channel sound
  • Downscale 4K to 1080p on one output while keeping 4K on the other
  • Pass 4K@60Hz 4:4:4 HDR video at 18.5 Gbps bandwidth with HDCP 2.2
  • Compact 5.91 × 2.36 × 0.79 in unit includes power adapter and remote

Specifications

BrandJansicotek
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

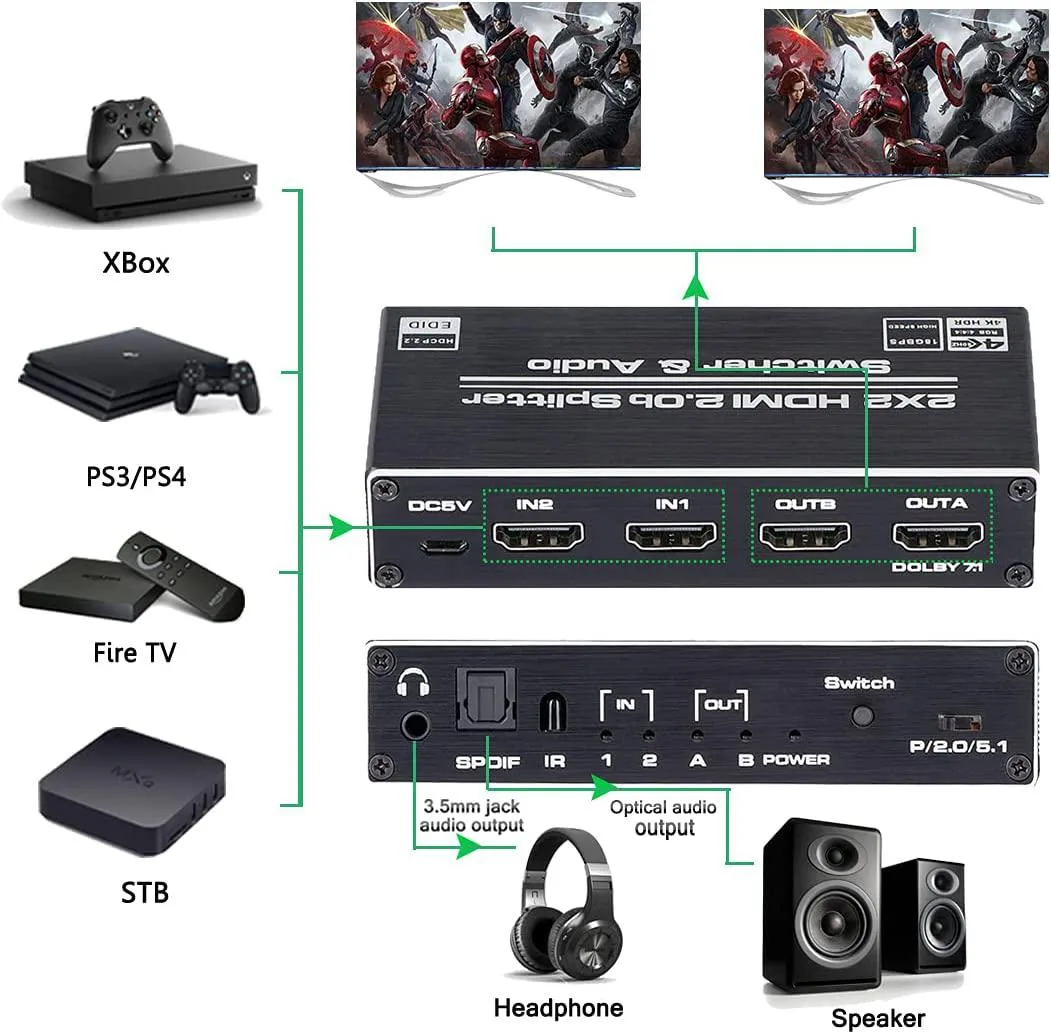

How do I connect the Jansicotek OZQ11 2×2 HDMI switch so both displays work at once?

Connect the 5V/1A power adapter first, then plug two HDMI sources into the inputs and two displays into the outputs. Press the front button or use the IR remote to enable both outputs simultaneously; the unit will downscale 4K to 1080p on the second display automatically.

Will the optical or 3.5mm audio outputs need a firmware update or replacement over time?

No firmware updates are required. The optical Toslink and 3.5mm jack are passive analogue/digital outputs; they will continue working as long as the switch receives power and the HDMI handshake remains valid.

At what bandwidth limit does the Jansicotek OZQ11 show signal degradation during long 4K@60Hz sessions?

The switch is rated for 18.5Gbps bandwidth with a 600MHz TMDS clock. Sustained 4K@60Hz 4:4:4 signals at this rate are within spec; degradation typically appears only if cable length or source output exceeds the 18.5Gbps limit.
