Black rectangular HDMI switch with two inputs two outputs 3.5mm and optical audio ports IR remote included

Jansicotek

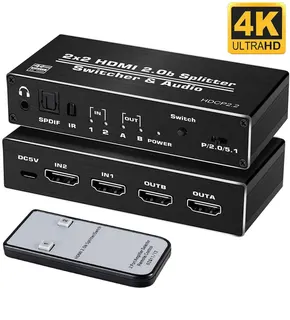

Jansicotek OZQ11 2×2 4K@60Hz HDMI Audio Switch

SKU CH-J71Z-2N26V

A 2×2 HDMI 2.0 matrix routes 4K@60 Hz video from two sources to two displays with independent 3.5 mm and optical audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI
  • Connect two sources to two displays simultaneously
  • Extract audio via optical or 3.5 mm jack independently
  • Downscale 4K to 1080p on one output while keeping 4K on the other
  • Pass 4K 60 Hz HDR video with 18 Gbps bandwidth

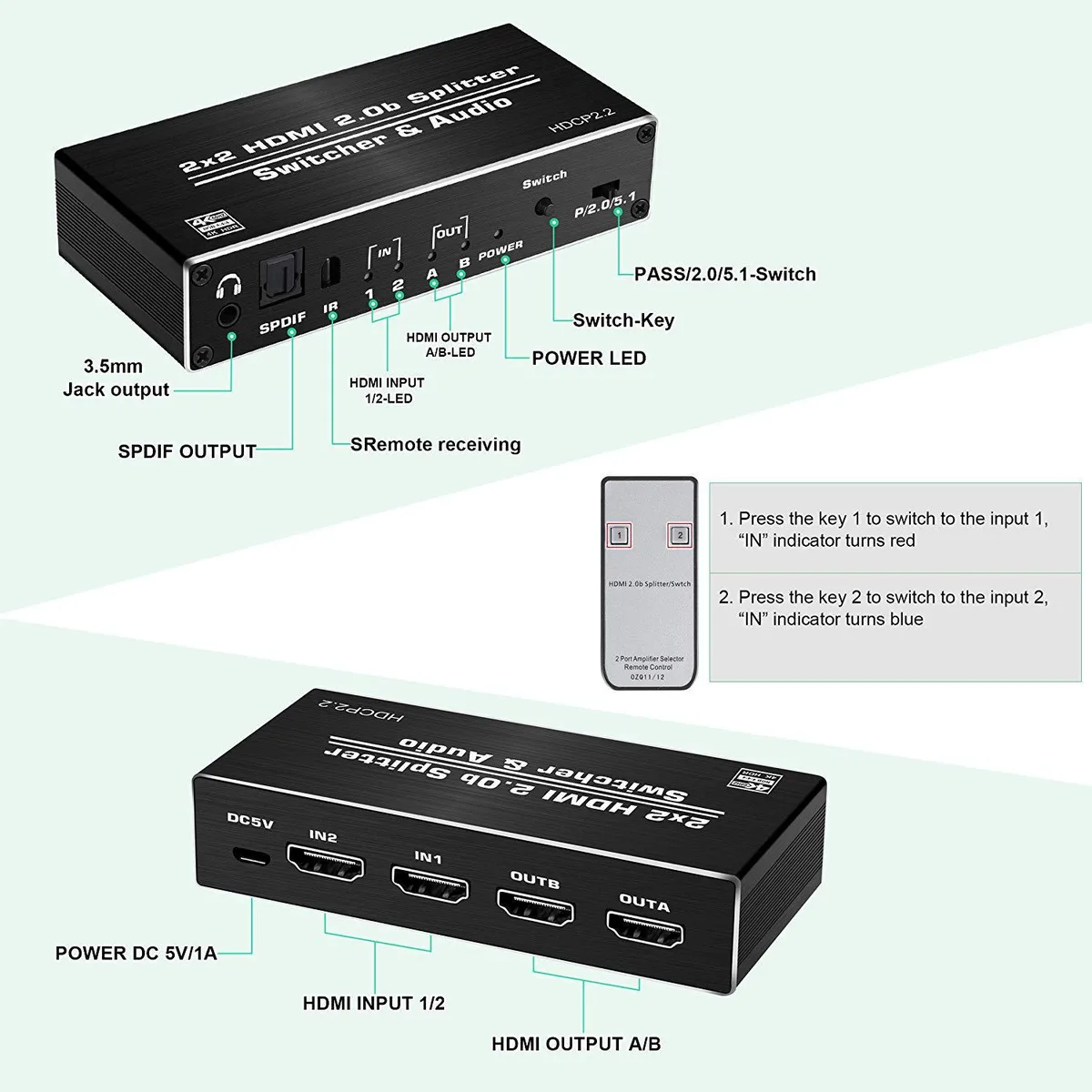

  • Control switching by front button or IR remote

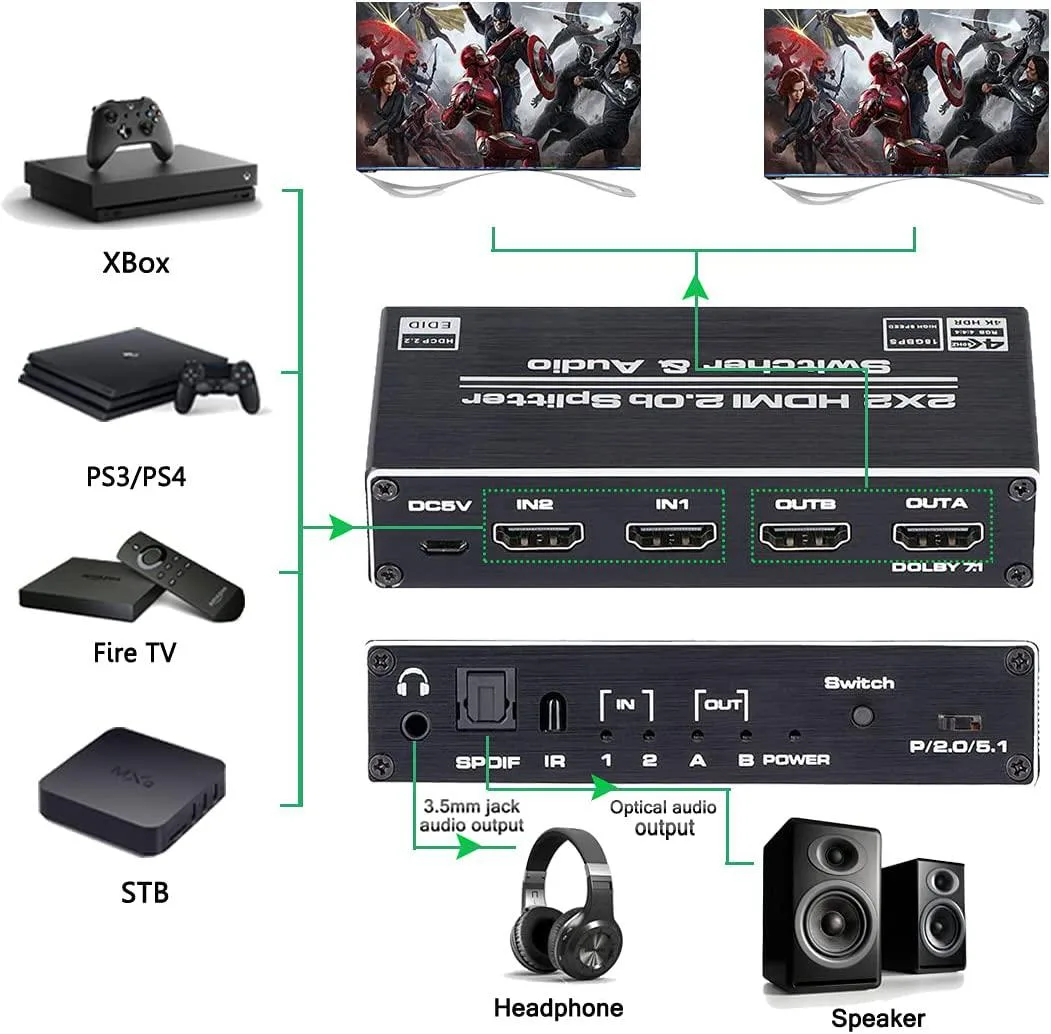

2×2 HDMI matrix for dual displays

The Jansicotek OZQ11 routes video and audio from two HDMI sources to two HDMI displays at the same time. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. Switching is done by front button or the included IR remote. The unit is powered by a 5 V 1 A adapter and measures 5.91 x 2.36 x 0.79 inches.

4K@60 Hz throughput with downscaling limit

Both outputs support 3840 x 2160 at 60 Hz YUV 4:4:4, 10, 11 or 12 bit deep colour and 3D formats. The downscaler can send 4K to one display and 1080p to the other simultaneously, but it cannot downscale a 4K 60 Hz 4:2:2 signal to 1080p. Audio formats up to 5.1 channel LPCM, DTS-HD, Dolby TrueHD and DSD pass through the HDMI path.

Optical and 3.5 mm audio extraction

A Toslink port and a 3.5 mm jack pull audio out separately from the HDMI stream. Optical output delivers 5.1 or 2 channel audio; the 3.5 mm jack is limited to 2 channel. Both can be active at once or used independently, letting you feed an amplifier without a display attached. The box includes the switch, remote, power supply and manual.

Highlights

  • Connect two sources to two displays simultaneously
  • Extract audio via optical or 3.5 mm jack independently
  • Downscale 4K to 1080p on one output while keeping 4K on the other
  • Pass 4K 60 Hz HDR video with 18 Gbps bandwidth
  • Control switching by front button or IR remote

Specifications

BrandJansicotek
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

Will the OZQ11 work with my older 1080p monitor while I keep a 4K display on the second output?

Yes, the downscaling feature lets one 4K source drive a 4K screen on output A and a 1080p screen on output B at the same time, though 4K@60Hz 4:2:2 cannot be downscaled to 1080p.

How can I verify the OZQ11 is passing 4K@60Hz HDR and HDCP 2.2 correctly after I connect everything?

Check that both displays show 3840×2160 at 60 Hz with HDR enabled, that protected content from a PS4, Xbox or Apple TV plays without a black screen, and that the front-panel LEDs indicate active HDCP 2.2 links on the selected input.

Does the box include the HDMI cables I need for my two sources and two displays, or must I buy them separately?

The package contains the switch, an IR remote, a 5 V/1 A power adapter and a user manual; HDMI cables for the two inputs and two outputs are not included and must be purchased separately.
