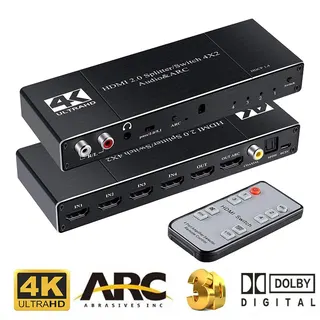

Black rectangular HDMI switch with four inputs, two outputs, audio ports, IR remote, 5.91 x 2.36 x .79 inches

Jansicotek

Jansicotek OZQ10 4x2 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-ZCX1-V03DX

Routes four HDMI sources to two displays at 4K@60Hz with ARC and multiple audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four sources to two displays with 4×2 HDMI switching
  • Enjoy 4K@60Hz video up to 3840×2160 with HDR support
  • Extract audio via optical, coaxial, 3.5 mm jack and L/R outputs
  • Control switching instantly with the included IR remote
  • Power reliably from 100–240 V AC with the supplied 5 V adapter

Jansicotek OZQ10 4x2 HDMI Switch

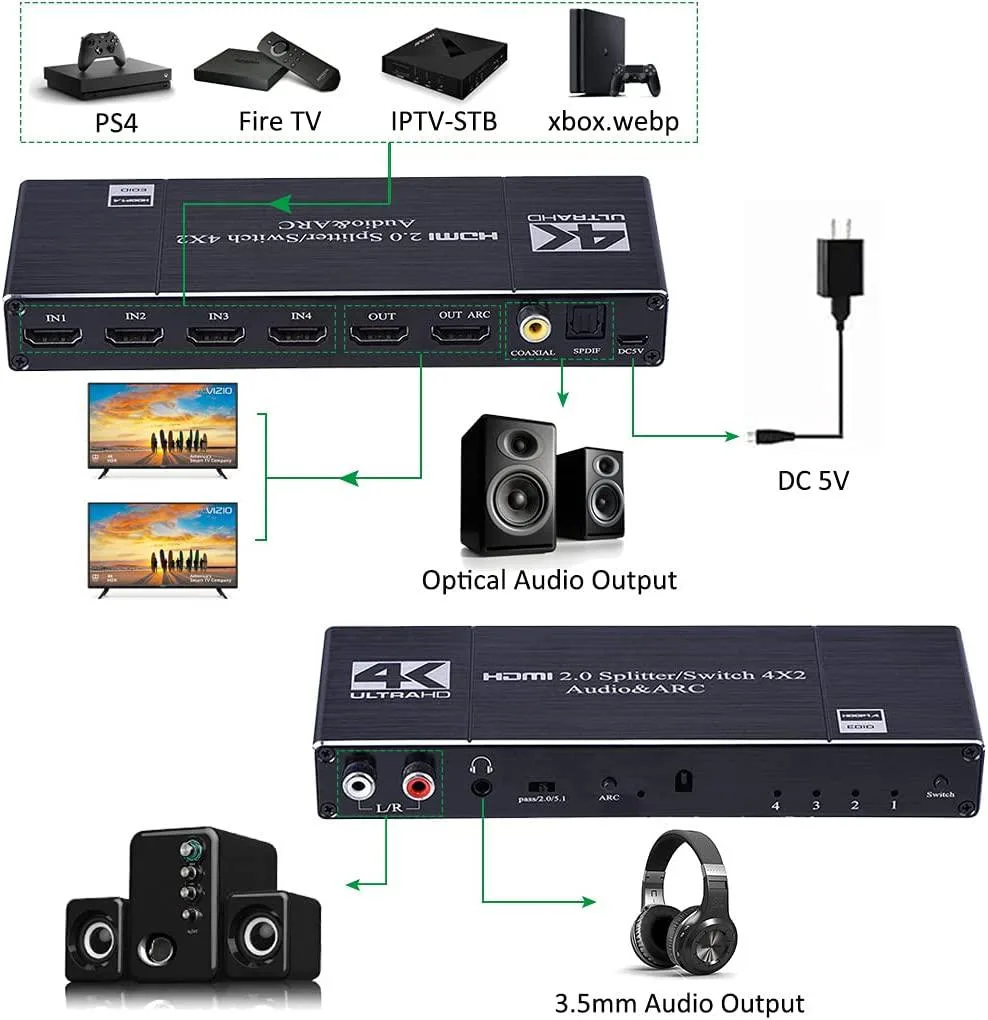

The Jansicotek OZQ10 is a 4x2 HDMI 2.0 switch and audio extractor designed for users who need to route four source devices to two displays. It supports 4K@60Hz resolution with HDR for 2K and deep colour up to 12-bit per channel. The unit includes an IR remote for convenient switching in home theatre, office or classroom installations.

Installation notes and common issues

Connect the included 5V/2A power adapter before linking sources and displays; the switch requires external power for reliable 6Gbps bandwidth operation. Both HDMI outputs mirror the same signal, so independent content on each screen is not possible. Some users find the IR remote requires direct line of sight and the 3.5mm jack only carries stereo audio.

What to verify before ordering

Confirm your sources and displays use HDMI 2.0 and HDCP 1.4 to match the switch specifications. Check that your audio system accepts optical Toslink, coaxial, 3.5mm stereo or analogue L/R inputs for extracted sound. Ensure you have space for the 5.91 x 2.36 x .79 inch chassis and a nearby mains outlet for the 100V-240V power supply.

Highlights

  • Connect four sources to two displays with 4×2 HDMI switching
  • Enjoy 4K@60Hz video up to 3840×2160 with HDR support
  • Extract audio via optical, coaxial, 3.5 mm jack and L/R outputs
  • Control switching instantly with the included IR remote
  • Power reliably from 100–240 V AC with the supplied 5 V adapter

Specifications

BrandJansicotek
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ

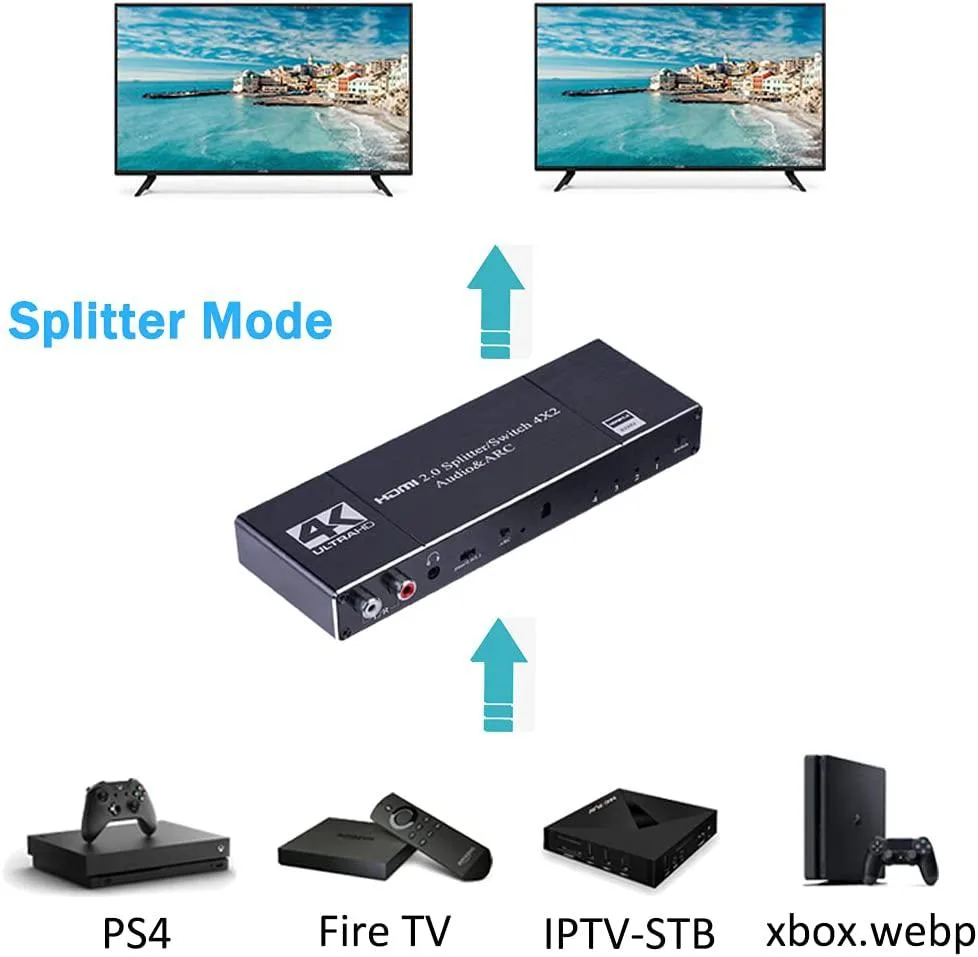

FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

How can I verify the OZQ10 is passing a 4K@60Hz signal correctly after connecting my sources and displays?

Check that both HDMI outputs show the same 3840x2160@60Hz image on your monitors or projectors, confirm HDR for 2K appears if your content supports it, and listen for audio through the 3.5mm jack, coaxial, or Toslink ports to confirm extraction is active.

What comes in the box with the OZQ10 and which items must I provide separately?

The package includes the 4x2 HDMI switch splitter, an IR remote control (battery not included), a 5V/2A power adapter (100-240V AC input), and a user manual; you must supply four HDMI source cables, two HDMI display cables, and a battery for the remote.

Which audio output on the OZQ10 should I choose for 5.1-channel surround sound from my Blu-ray player?

Use the Toslink optical or coaxial port, both of which support 5.1-channel audio; the 3.5mm jack and L/R outputs are limited to 2.0-channel stereo.
