Black rectangular HDMI switch with four inputs and two outputs, plus audio ports and IR remote

Jansicotek

Jansicotek OZQ10 4x2 HDMI Audio Switch 4K@60Hz

SKU CH-W78V-2NSMA

Connects four HDMI sources to two displays at 4K@60Hz and extracts audio via optical, coaxial, 3.5mm and L/R outputs with IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four HDMI sources to two displays
  • Supports 4K resolution at 60Hz refresh rate
  • Extracts audio via optical, coaxial, 3.5mm and L/R outputs
  • Includes IR remote for convenient source switching
  • HDMI 2.0 and HDCP 1.4 compliant for protected content

Four-input dual-output switch

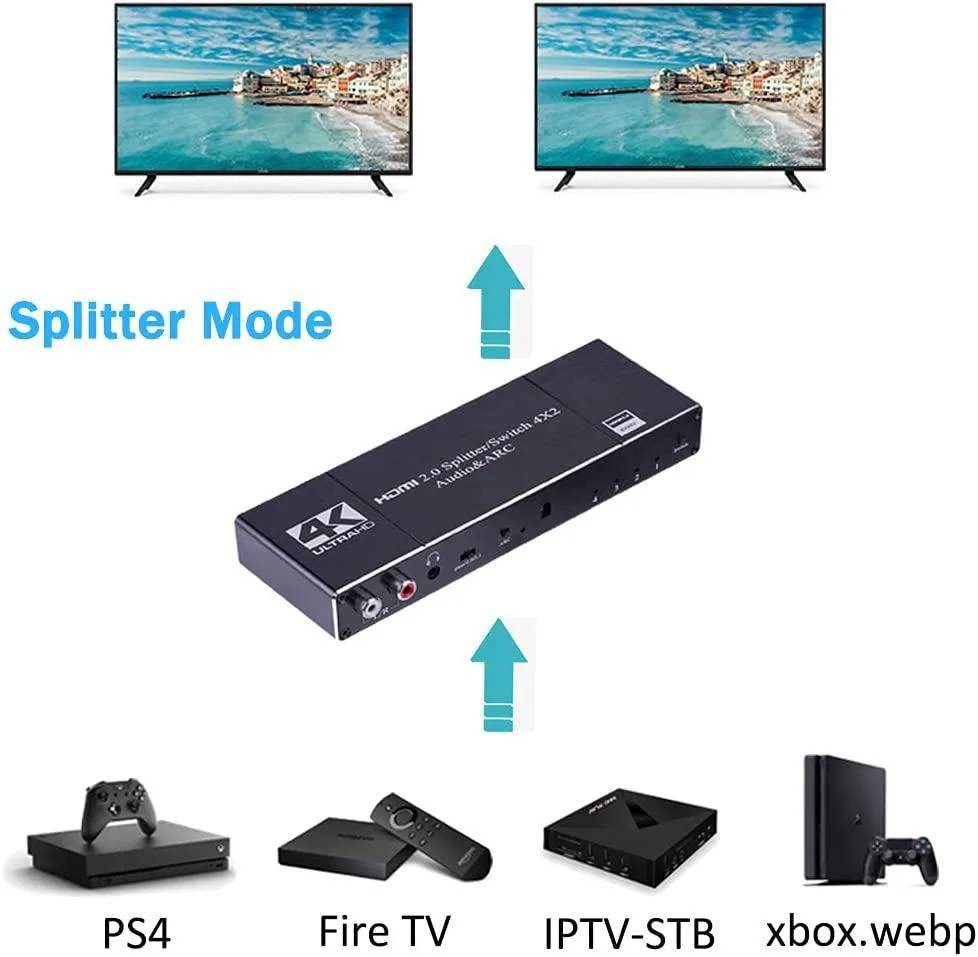

The Jansicotek OZQ10 connects four HDMI sources to two displays, routing the same signal to both outputs. It handles resolutions up to 4K@60Hz with 6Gbps bandwidth and supports HDMI 2.0 and HDCP 1.4. A supplied IR remote and front-panel buttons provide source selection.

Home theatre and multi-room installs

Installers who need to mirror a single source across two screens will find the duplicated output useful. Users requiring independent content on each display should look at a matrix switcher instead. The unit also extracts audio, so separate AV receivers or soundbars can be fed without extra converters.

HDMI 2.0 with 4K@60Hz bandwidth

The 6Gbps bandwidth and HDMI 2.0 compliance determine whether 4K@60Hz sources pass through without chroma subsampling beyond 4:2:0. If the installation demands full 4:4:4 at 60Hz or higher refresh rates, this switch will not meet that requirement.

Highlights

  • Connect four HDMI sources to two displays
  • Supports 4K resolution at 60Hz refresh rate
  • Extracts audio via optical, coaxial, 3.5mm and L/R outputs
  • Includes IR remote for convenient source switching
  • HDMI 2.0 and HDCP 1.4 compliant for protected content

Specifications

BrandJansicotek
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.

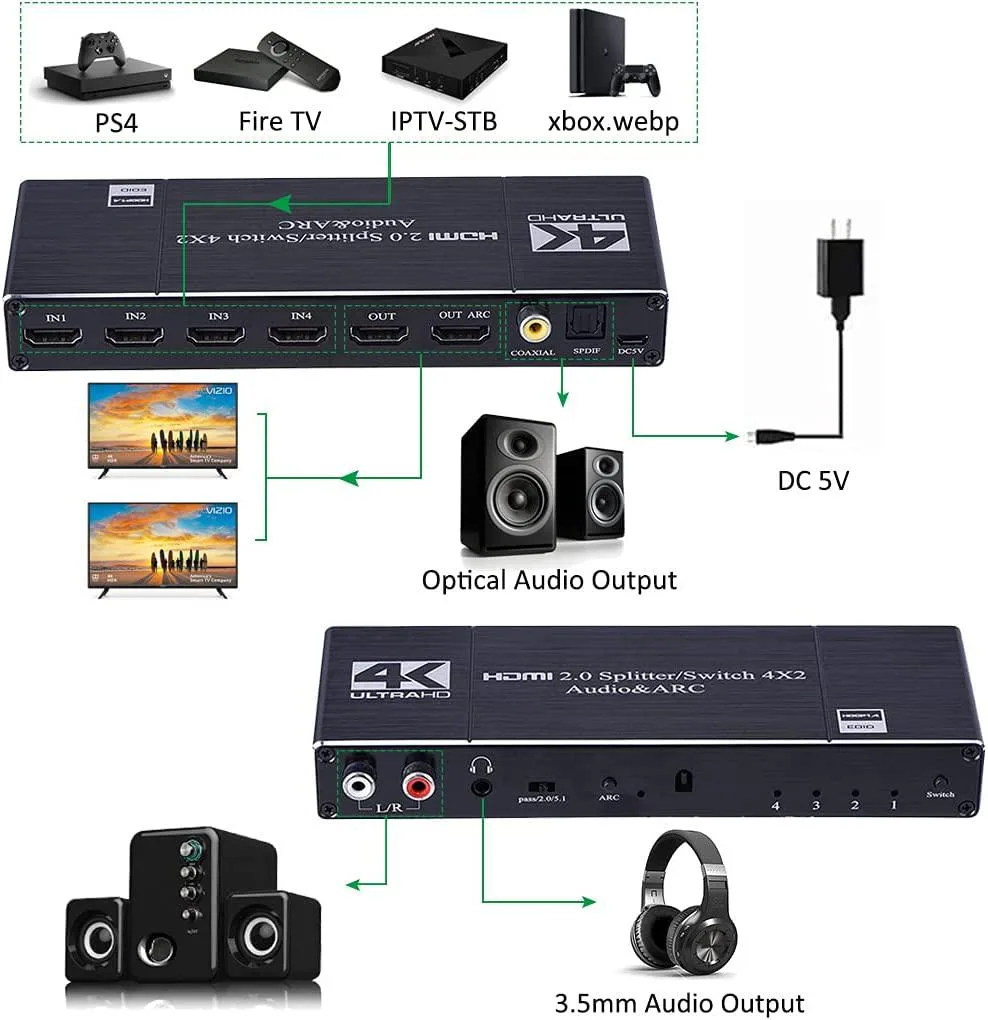

Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Will the 5 V / 2 A power adapter need replacement after extended use?

The unit ships with a 100–240 V AC to 5 V DC 2 A adapter; it has no user-serviceable parts, so the adapter would only need replacement if it fails.

What bandwidth ceiling limits 4K 60 Hz signals through the switch?

The switch is rated at 6 Gbps and 340 MHz, which is the maximum throughput for 4K 60 Hz 4:2:0 content.

Does the box generate noticeable heat or fan noise when left on all day?

The device has no fan and draws only 5 V 2 A, so it runs silently with minimal warmth during continuous operation.
