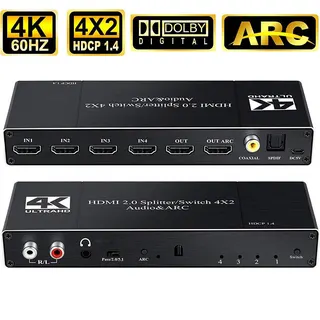

Black rectangular HDMI switch with four inputs and two outputs plus audio ports and IR remote

Jansicotek

Jansicotek OZQ10 4K 60Hz HDMI 4x2 Switch Audio Extractor

SKU CH-3N44-M5WPM

Routes four HDMI sources to two displays at 4K 60 Hz and extracts audio via ARC, optical, coaxial, 3.5 mm jack and L/R outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four sources to two displays with 4K 60 Hz switching
  • Extract audio via ARC, 3.5 mm, coaxial, optical or L/R outputs
  • Control switching from the sofa using the included IR remote
  • Supports 8, 10 and 12 bit deep colour for richer gradients
  • HDMI 2.0 and HDCP 1.4 keep protected content flowing

4x2 HDMI Switch for Multi-Source Setups

The Jansicotek OZQ10 connects four HDMI sources to two displays simultaneously. Both outputs show an identical signal, making it suitable for duplicated viewing in home theatres, offices or classrooms. It handles 4K at 60 Hz with 12-bit deep colour and 3D content. HDCP 1.4 and HDMI 2.0 compliance ensure compatibility with consoles, streamers and disc players.

Sustained Signal Stability at 6 Gbps

Rated bandwidth of 6 Gbps at 340 MHz supports continuous 4K 60 Hz transmission without handshake drops. The 5 V 2 A power adapter maintains stable voltage during long sessions, preventing the signal loss that bus-powered switches exhibit under load. EDID management keeps resolution and audio negotiation consistent across source changes. HDR is supported at 2K resolutions.

IR Remote and Multi-Format Audio Breakout

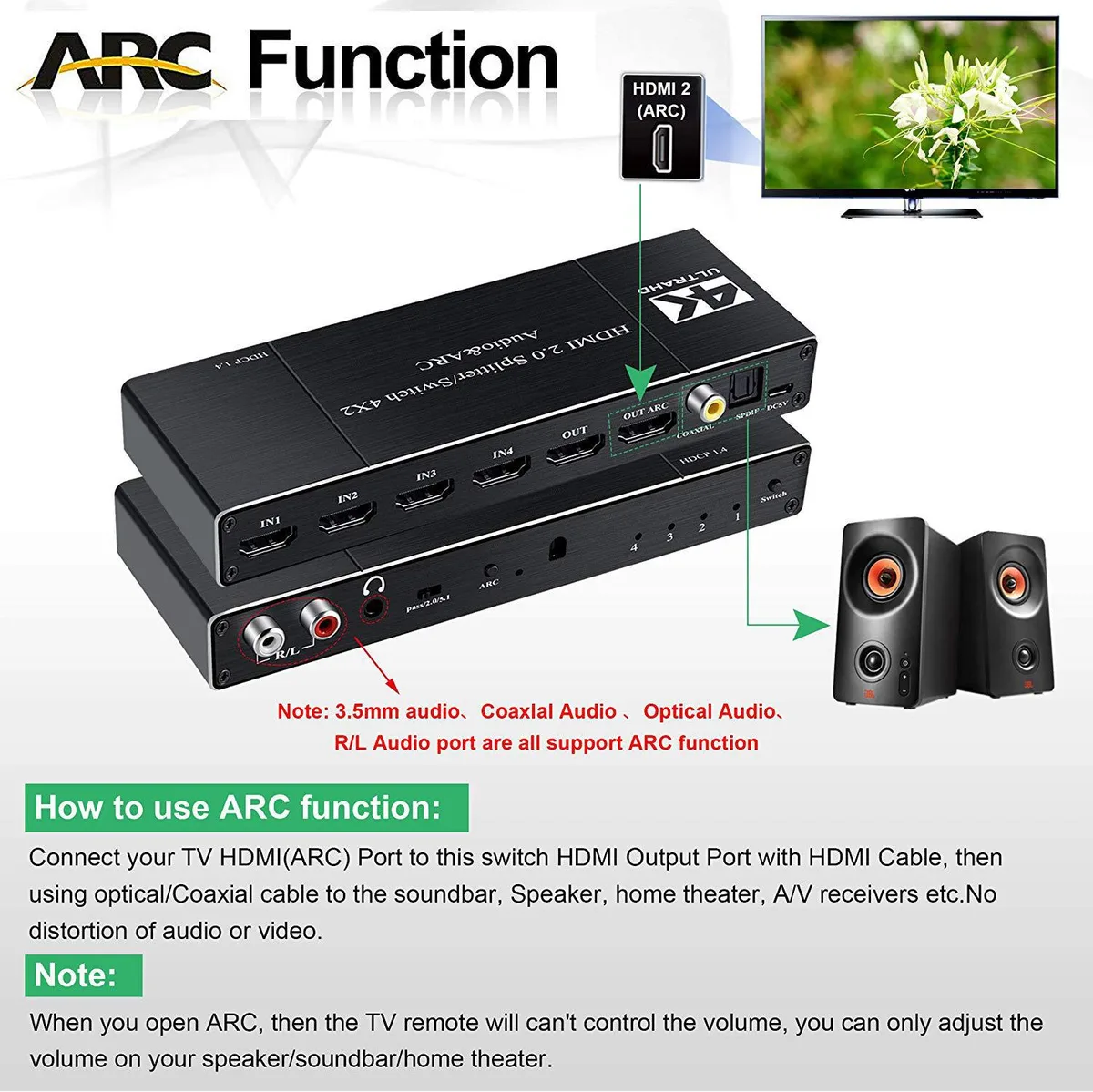

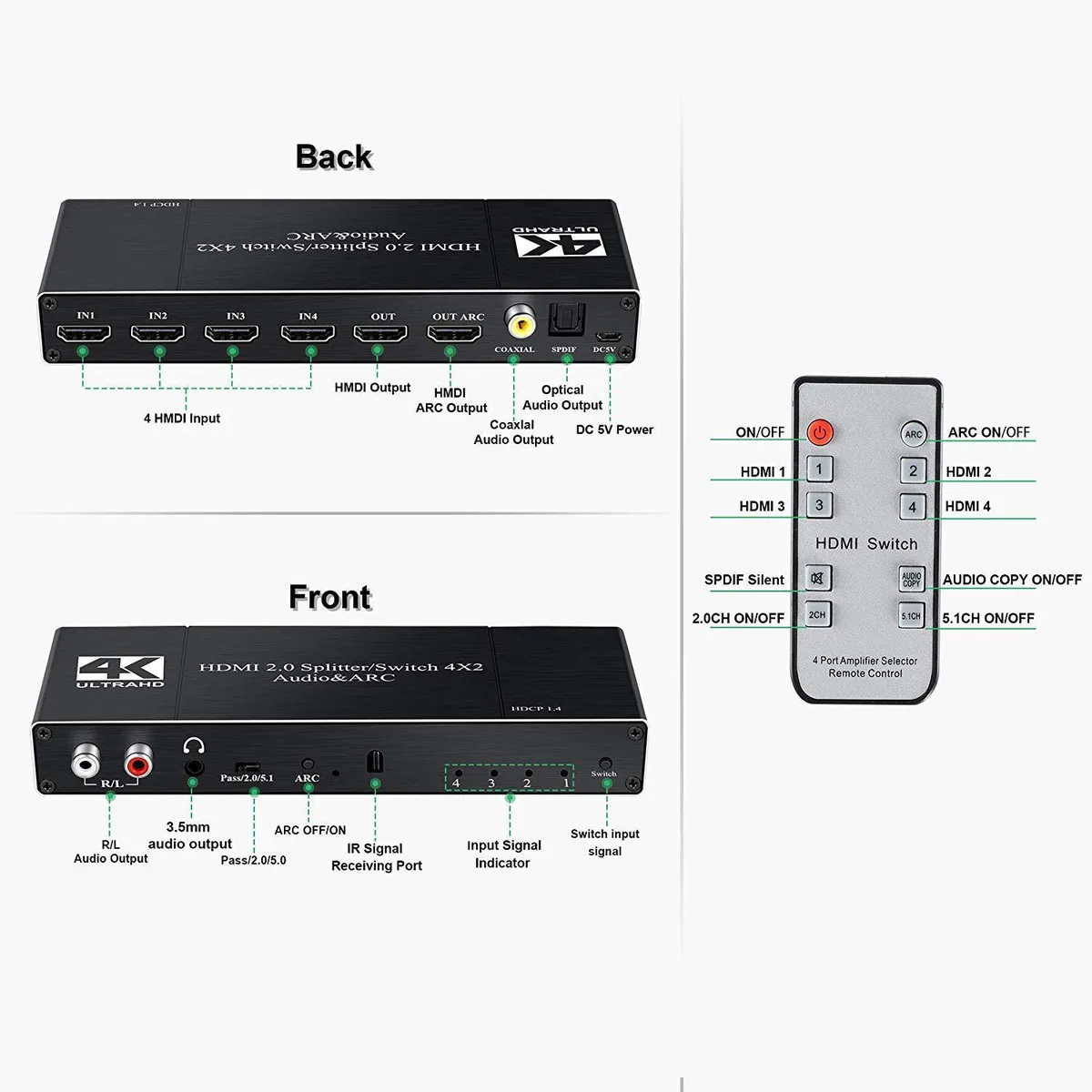

Front-panel buttons and the included IR remote switch inputs without moving cables. Audio is extracted to 3.5 mm stereo, coaxial, Toslink SPDIF (2.0 or 5.1 channel) and analogue L/R simultaneously. ARC support simplifies soundbar integration. The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. Battery for the remote is not supplied.

Highlights

  • Connect four sources to two displays with 4K 60 Hz switching
  • Extract audio via ARC, 3.5 mm, coaxial, optical or L/R outputs
  • Control switching from the sofa using the included IR remote
  • Supports 8, 10 and 12 bit deep colour for richer gradients
  • HDMI 2.0 and HDCP 1.4 keep protected content flowing

Specifications

BrandJansicotek
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Does the OZQ10 run hot or draw much power when left on 24/7?

The unit ships with a 5V/2A external adapter and has no fan, so it stays cool and silent during continuous use.

Which cables and power items must I already have to connect four sources and two displays?

You need four HDMI source cables, up to two HDMI display cables, and a mains socket for the included 5V/2A adapter.

Will my 1080p Blu-ray player and 4K@60Hz Apple TV share the two outputs without handshake issues?

Yes — the switch handles HDCP 1.4 and 4K@60Hz on every port, so mixed-resolution sources display correctly on both outputs.
