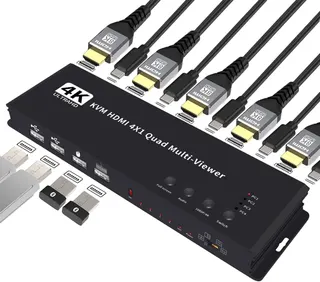

Black rectangular HDMI switch with four inputs and one output, compact form factor

Jansicotek

Jansicotek OZK6 HDMI 4x1 Quad Multi-Viewer Video Switch 4K@30Hz

SKU CH-EG3D-GHVQW

Connects four HDMI sources to one display with quad-screen viewing, seamless switching and IR remote control at up to 4K 30 Hz

  • TypeHDMI KVM Multiviewer Switch 4x1
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsSupport 4HDMI input, 1 HDMI output Support HDMI 1.4b and HDC
  • Input Connector4 x HDMI 1.4
  • View four sources simultaneously on one screen with five display modes
  • Switch instantly between inputs using IR remote, front buttons or KVM hotkeys
  • Deliver 4K at 30 Hz and 1080p at 60 Hz over HDMI 1.4b with HDCP 1.4
  • Connect four HDMI devices to a single display via one compact 4x1 switch
  • Power the unit from any USB port using the included adapter and cables

Product purpose

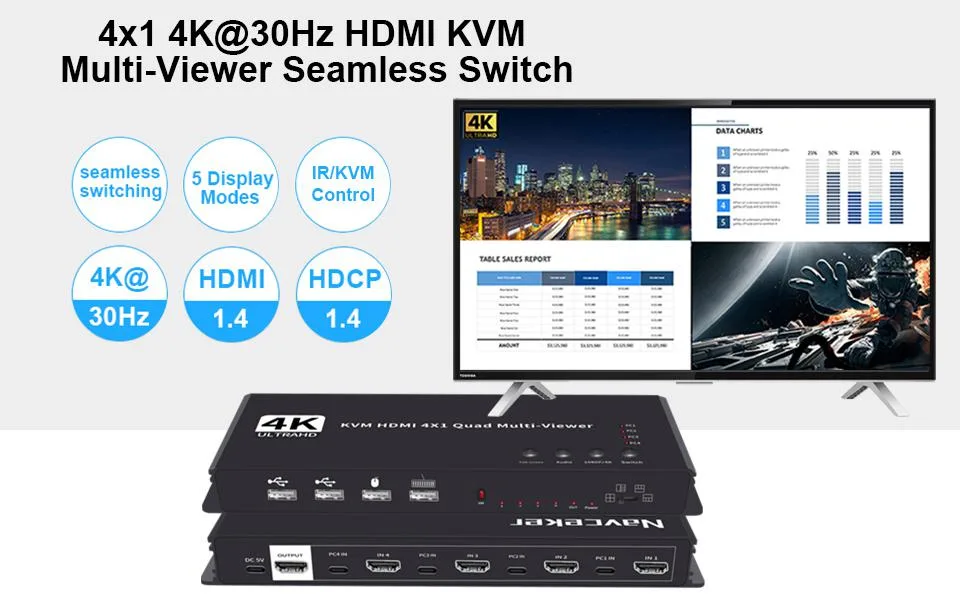

The Jansicotek OZK6 is a 4x1 HDMI multiviewer that combines four HDMI 1.4 sources onto a single display with five selectable layout modes. It supports resolutions up to 3840 x 2160 at 30 Hz and 1080p at 60 Hz, plus HDCP 1.4 compliance for protected content. The unit is aimed at installers and operators who need simultaneous monitoring of multiple video feeds in control rooms, meeting halls or digital-signage setups.

Setup check

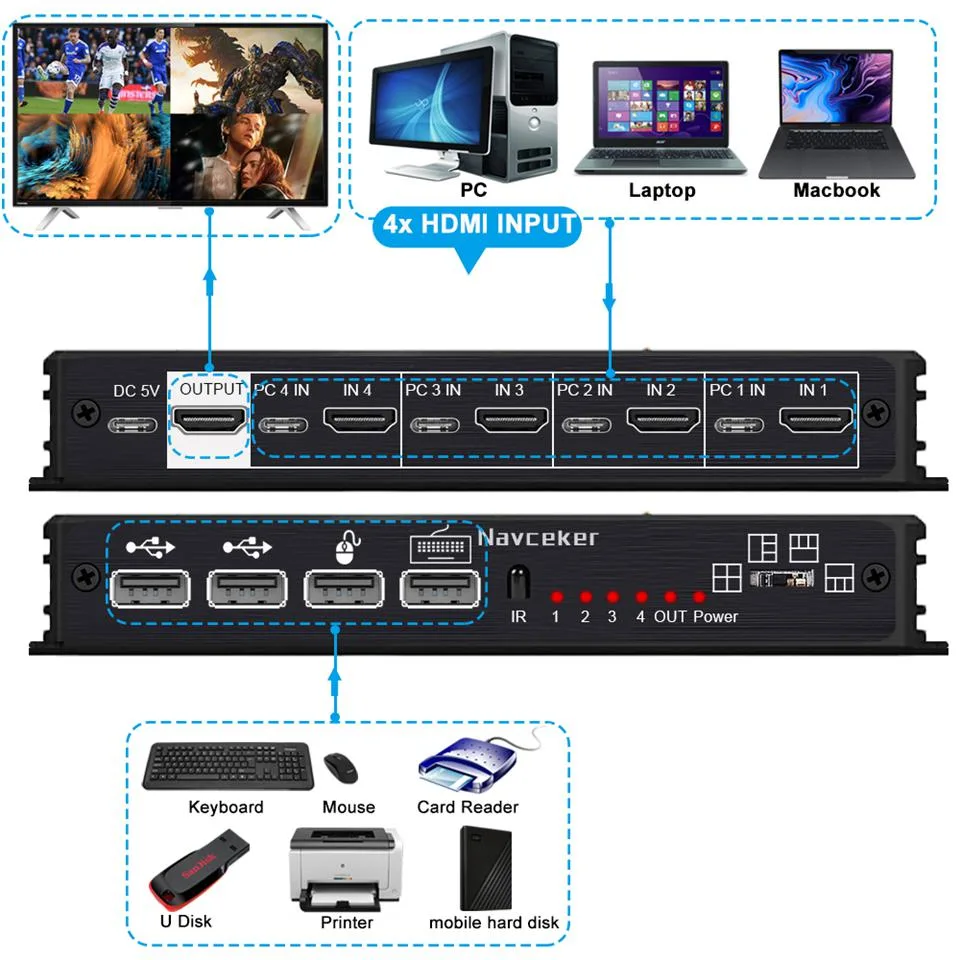

Verify that each source device can output HDMI 1.4 signals and that your display accepts 4K at 30 Hz or 1080p at 60 Hz over HDMI 1.4. Confirm you have four HDMI cables for the inputs and one for the output, plus a free USB port or the supplied USB power adapter to power the switch. The included IR remote requires direct line of sight to the front panel sensor for reliable switching.

Build integration

The compact black chassis measures 8.39 by 3.94 by 0.98 inches and weighs .85 pounds, so it fits on a desk or in a shallow rack shelf without blocking adjacent equipment. Four USB data cables are provided for KVM hotkey control when the switch is connected to a host PC, freeing the operator from reaching for the front-panel buttons. No external video scaler or additional matrix hardware is required for the supported resolutions and viewing modes.

Highlights

  • View four sources simultaneously on one screen with five display modes
  • Switch instantly between inputs using IR remote, front buttons or KVM hotkeys
  • Deliver 4K at 30 Hz and 1080p at 60 Hz over HDMI 1.4b with HDCP 1.4
  • Connect four HDMI devices to a single display via one compact 4x1 switch
  • Power the unit from any USB port using the included adapter and cables

Specifications

BrandJansicotek
SeriesOZK6
ModelOZK6
Part NumberOZK6
TypeHDMI KVM Multiviewer Switch 4x1
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsSupport 4HDMI input, 1 HDMI output
Support HDMI 1.4b and HDCP 1.4
Support 4 channels HDMI signal screen segmentation
Support 4 channels HDMI signal seamless switching
Support resolution up to 4K@30Hz/1080@60Hz
Support 4 USB 2.0 port and KVM control
Support IR control
Input support resolution:4K,1080P,720P,1080i,1024X768,1360X768 etc
Support audio output format:PCM2
Input cable distance: <15M AWG26 HDMI1.4b standard cable
Output cable distance: <24M AWG26 HDMI1.4b standard cable
Max bandwidth:330MHz
Max baud rate:10.2Gbps
Maximum working current:0.6 A
Power adapter :5V/2A
Dimension(Lx
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions3840 x 2160
Features5 Ways Viewing Screen:The 4X1 Quad MultiView Selector support 5 viewing modes. You could see 4 HDMI input sources screen on one monitor by 4 ways, also can only see only one HDMI input source by full screen;
HDMI Switch 4 in 1 out: 4 HDMI Input ports, 1 HDMI output port. Support Connect 4 HDMI input device and one HDMI Display device on Switch box, avoid frequently plugging and unplugging on HDMI Display device;
KVM Control:support hotkey switch,Ctrl + Ctrl to next PC,Ctrl + Shift + 1/2/3/4 to PC1/2/3/4,use Ctrl + Shift + K to enable/ disable hotkey function,the USB 2.0 port could co
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package Contents1xHDMI 4x1 quad KVM multi-viewer
1x USB Power adapter
4x USB Data cable
1xRemote control
1xUser manual

Questions about this item

What cables come in the box with the Jansicotek OZK6?

The package includes the switch, a USB power adapter, four USB data cables, an IR remote control and a user manual.

How do I choose between the 4K@30Hz and 1080p@60Hz modes on the OZK6?

The switch supports both resolutions simultaneously; it will output 4K at 30 Hz or 1080p at 60 Hz depending on the source and display capabilities.

What does the 10.2 Gbps bandwidth mean for my 4K@30Hz setup?

The 10.2 Gbps link carries 4K 30 Hz video with 24, 30 or 36-bit colour depth and HDCP 1.4 protection across the four inputs.
