Black rectangular box with four HDMI inputs and one output on the back, front panel buttons and IR window

Jansicotek

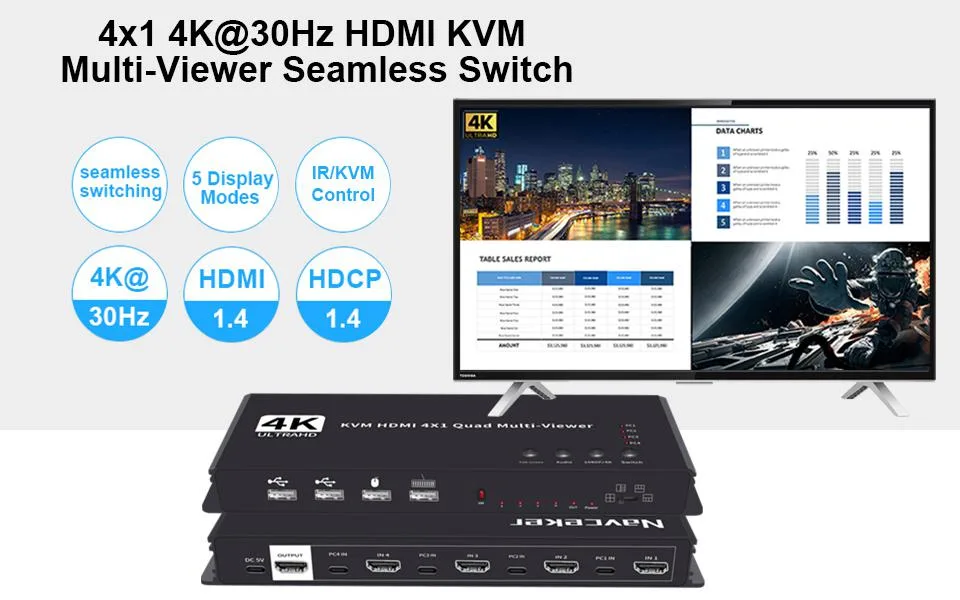

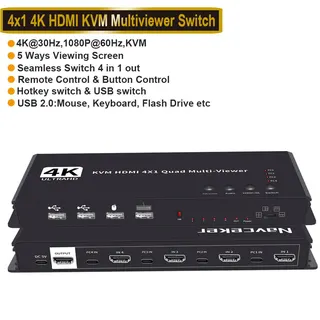

Jansicotek OZK6 HDMI 4x1 KVM Multiviewer Switch 4K30Hz

SKU CH-N6XD-N2C41

Connects four HDMI sources to one display with five multiview layouts, seamless switching and 4K at 30 Hz

  • TypeHDMI KVM Multiviewer Switch 4x1
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsSupport 4HDMI input, 1 HDMI output Support HDMI 1.4b and HDC
  • Input Connector4 x HDMI 1.4
  • View four sources simultaneously on one screen with five selectable layout modes
  • Switch instantly between inputs with zero-frame delay via HDMI 1.4b seamless switching
  • Control the unit by front button, IR remote or USB keyboard hotkeys for flexible operation
  • Connect up to four 4K30Hz or 1080p60Hz devices through four HDMI 1.4 inputs and one HDMI 1.4 output
  • Compact black chassis measuring 8.39 x 3.94 x 0.98 inches and weighing 0.85 pounds

Four-input HDMI KVM multiviewer

The Jansicotek OZK6 is a 4x1 HDMI 1.4b switch that shows four sources on one screen or cycles them full-screen. It targets operators who monitor multiple cameras, consoles or laptops from a single display without adding extra monitors.

Replaces separate switch and splitter boxes

When a workflow needs simultaneous quad view plus instant seamless switching the OZK6 consolidates both functions. The jump is worth it if 4K at 30 Hz or 1080p at 60 Hz meets the source resolution and no higher refresh rate is required.

Fits on a desk or rack shelf with USB power

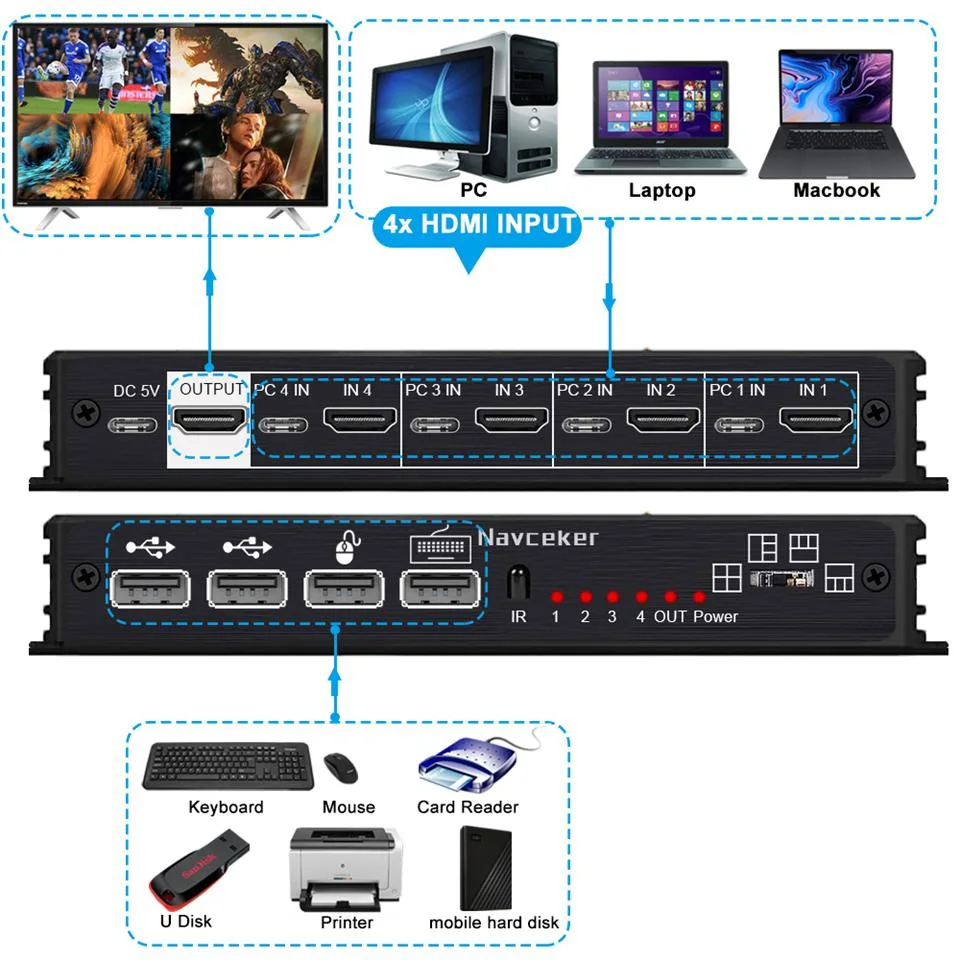

The unit draws power from the included USB adapter and ships with four USB data cables for KVM keyboard and mouse control. It frees up HDMI ports on the display and removes the need for a dedicated KVM keyboard-video-mouse switch.

Highlights

  • View four sources simultaneously on one screen with five selectable layout modes
  • Switch instantly between inputs with zero-frame delay via HDMI 1.4b seamless switching
  • Control the unit by front button, IR remote or USB keyboard hotkeys for flexible operation
  • Connect up to four 4K30Hz or 1080p60Hz devices through four HDMI 1.4 inputs and one HDMI 1.4 output
  • Compact black chassis measuring 8.39 x 3.94 x 0.98 inches and weighing 0.85 pounds

Specifications

BrandJansicotek
SeriesOZK6
ModelOZK6
Part NumberOZK6
TypeHDMI KVM Multiviewer Switch 4x1
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsSupport 4HDMI input, 1 HDMI output
Support HDMI 1.4b and HDCP 1.4
Support 4 channels HDMI signal screen segmentation
Support 4 channels HDMI signal seamless switching
Support resolution up to 4K@30Hz/1080@60Hz
Support 4 USB 2.0 port and KVM control
Support IR control
Input support resolution:4K,1080P,720P,1080i,1024X768,1360X768 etc
Support audio output format:PCM2
Input cable distance: <15M AWG26 HDMI1.4b standard cable
Output cable distance: <24M AWG26 HDMI1.4b standard cable
Max bandwidth:330MHz
Max baud rate:10.2Gbps
Maximum working current:0.6 A
Power adapter :5V/2A
Dimension(Lx
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions3840 x 2160
Features5 Ways Viewing Screen:The 4X1 Quad MultiView Selector support 5 viewing modes. You could see 4 HDMI input sources screen on one monitor by 4 ways, also can only see only one HDMI input source by full screen;
HDMI Switch 4 in 1 out: 4 HDMI Input ports, 1 HDMI output port. Support Connect 4 HDMI input device and one HDMI Display device on Switch box, avoid frequently plugging and unplugging on HDMI Display device;
KVM Control:support hotkey switch,Ctrl + Ctrl to next PC,Ctrl + Shift + 1/2/3/4 to PC1/2/3/4,use Ctrl + Shift + K to enable/ disable hotkey function,the USB 2.0 port could co
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package Contents1xHDMI 4x1 quad KVM multi-viewer
1x USB Power adapter
4x USB Data cable
1xRemote control
1xUser manual

Questions about this item

How much desk space does the 8.39 x 3.94 x 0.98 inch unit need?

The chassis measures 8.39 inches wide, 3.94 inches deep and 0.98 inches high, so allow at least that footprint plus room for four HDMI cables and the USB power adapter.

Which step do users most often miss when setting up the four HDMI 1.4 inputs and the USB keyboard and mouse for KVM control?

Connect each source to an HDMI input, plug the keyboard and mouse into the dedicated USB ports on the switch, then power the unit with the supplied USB adapter before selecting a view mode.

What ongoing care does the IR remote and the USB power adapter require?

Replace the remote's coin cell when range drops; keep the USB power adapter and its four data cables free of dust and reseat them if any input loses signal.
