Compact black metal box with one HDMI input and six HDMI outputs plus audio ports and RS232 control

Jansicotek

Jansicotek OZJP3 4K@30Hz 2x3 Video Wall Controller 1-in 6-out

SKU CH-FZRF-4GRY6

Splits one 4K@30Hz HDMI source across six displays in 14 layout modes with RS232 and remote control

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out6 HDMI
  • Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
  • Distributes one 4K source across six displays using 1 HDMI input and 6 HDMI outputs
  • Choose from 14 layout modes including 2×3, 3×2 and 1×6 configurations
  • Extracts audio via SPDIF and 3.5 mm ports for external sound systems
  • Control the wall remotely or by RS232 for integration into automation setups
  • Plug-and-play operation with 4K@30 Hz output and HDCP 1.4 compliance

4K 2x3 Video Wall Controller

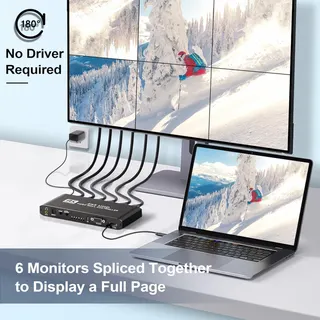

The Jansicotek OZJP3 takes a single HDMI source and splits it across six displays in a 2x3 array or one of thirteen other layouts. It accepts 4K input at 30 Hz and 1080p up to 60 Hz, making it suited for digital signage, control rooms or multi-monitor simulation setups.

Bundled Remote and Audio Extraction

A handheld remote lets operators cycle through the 14 display modes without touching the unit, while a 3.5 mm stereo jack and SPDIF port pull audio away from the HDMI stream for separate amplification. The package also includes a 5 V 2.1 A power adapter and a printed manual.

Metal Chassis with RS-232 Integration

The enclosure is built for continuous operation and rack or shelf mounting, with six HDMI outputs on one face and the input, audio ports and RS-232 control socket on the other. RS-232 allows automated switching from a central processor, and the fixed 5 V supply means no internal fan noise in quiet environments.

Highlights

  • Distributes one 4K source across six displays using 1 HDMI input and 6 HDMI outputs
  • Choose from 14 layout modes including 2×3, 3×2 and 1×6 configurations
  • Extracts audio via SPDIF and 3.5 mm ports for external sound systems
  • Control the wall remotely or by RS232 for integration into automation setups
  • Plug-and-play operation with 4K@30 Hz output and HDCP 1.4 compliance

Specifications

BrandJansicotek
ModelOZJP3
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out6 HDMI
Specifications4K HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, security monitor and other large screen splicing display.
Package Contents3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1.

Questions about this item

Will the 5 V 2.1 A power adapter need replacing after extended 24/7 operation?

The controller ships with a 5 V 2.1 A DC adapter; no user-serviceable parts inside, so the adapter itself is the only item that may eventually require replacement.

What is the maximum output resolution and refresh rate the six HDMI ports can sustain continuously?

Each HDMI output is specified at 3840 x 2160 @ 30 Hz RGB444 24-bit, which is the ceiling under sustained load.

Does the fanless chassis stay cool and silent when driving six 4K displays all day?

The unit has no fan; it runs silently and relies on passive cooling, with the external 5 V 2.1 A supply handling power conversion heat.
