Compact black metal box with front HDMI ports and rear nine HDMI outputs

Jansicotek

Jansicotek OZJP2 3x3 Video Wall Controller 1 HDMI In 9 HDMI Out 4K 30Hz Input 1080P 60Hz Output

SKU CH-2HX6-0ZSY1

Splits one 4K 30 Hz HDMI or DVI source across nine 1080p 60 Hz displays in 13 layouts including 3×3, controlled by remote or RS232

  • TypeProfessional Video Devices
  • Remote ControlRemote Included
  • InterfaceHDMI
  • Ports In1 HDMI
  • Ports Out9 HDMI
  • Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Pro
  • Create large video walls with 13 selectable display modes
  • Accepts 4K 30 Hz input and delivers 1080P 60 Hz across nine screens
  • Plug-and-play setup with 180° rotation for flexible mounting
  • Control layouts instantly via included remote or front push buttons
  • HDMI 1.4 and HDCP 1.4 compatible with SPDIF audio output

Purpose-built 3×3 video wall controller

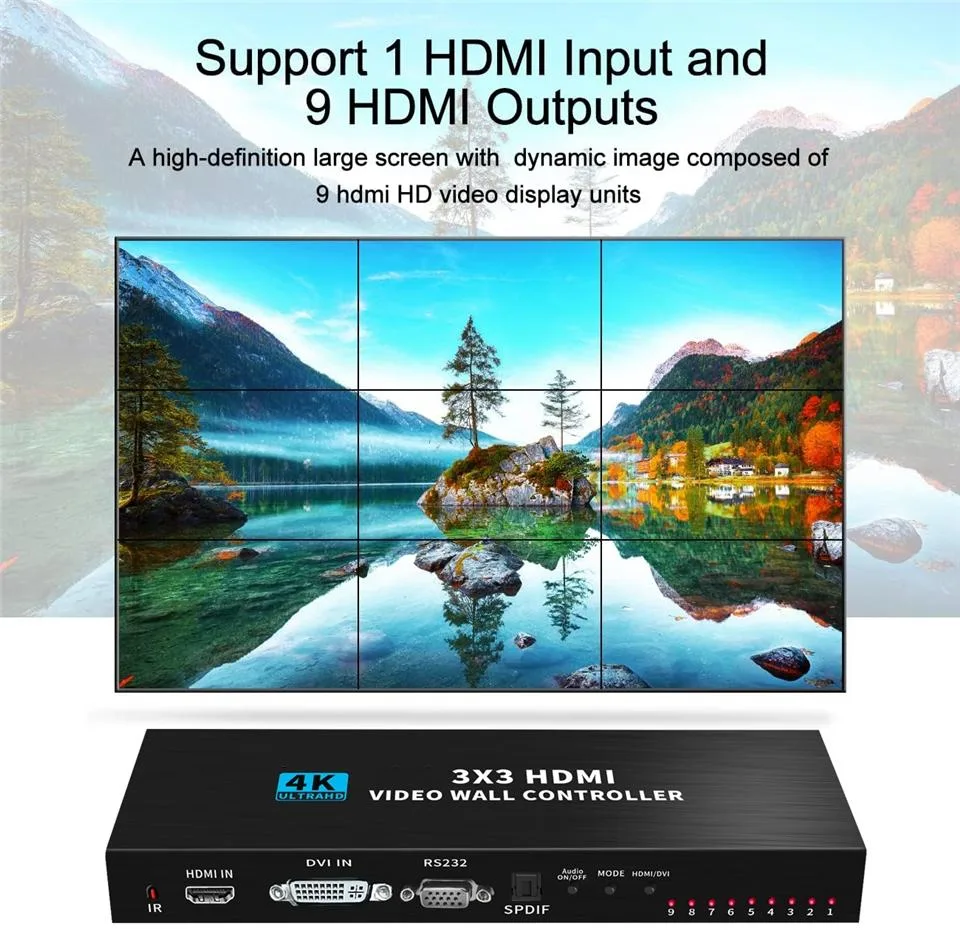

The Jansicotek OZJP2 splits one HDMI or DVI source into nine 1080P 60Hz outputs, letting installers build a 3×3 LCD array for signage, monitoring or broadcast. It accepts a single 4K 30Hz input and drives nine displays without additional software.

Bundled remote, power and RS-232

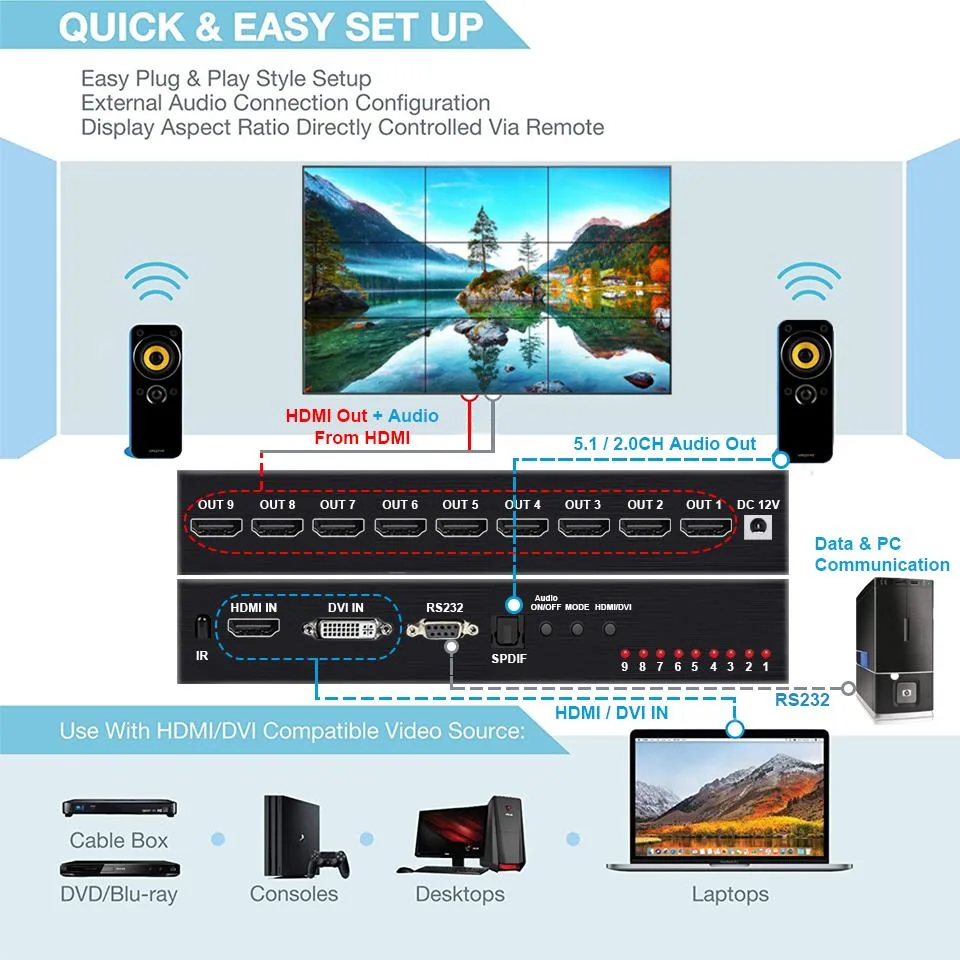

A handheld remote (battery not supplied), a 5 V 2.1 A adapter and an RS-232 port give integrators three ways to switch among 13 preset layouts from 1×1 up to 4×2. The package also includes a printed manual for first-time setup.

Metal chassis with nine HDMI ports

The enclosure houses one input and nine output HDMI 1.4 sockets plus an optical SPDIF audio jack, all labelled for quick patching. HDCP 1.4 compliance protects premium content, while 180° rotation support lets each screen be mounted upside-down when cabinet space demands it.

Highlights

  • Create large video walls with 13 selectable display modes
  • Accepts 4K 30 Hz input and delivers 1080P 60 Hz across nine screens
  • Plug-and-play setup with 180° rotation for flexible mounting
  • Control layouts instantly via included remote or front push buttons
  • HDMI 1.4 and HDCP 1.4 compatible with SPDIF audio output

Specifications

BrandJansicotek
ModelOZJP2
TypeProfessional Video Devices
Remote ControlRemote Included
InterfaceHDMI
Ports In1 HDMI
Ports Out9 HDMI
Specifications3X3 Video Wall Controller 4K HDMI DVI TV Wall Controller Processor 3x3 2x3 2x4 4x2 LCD 9 Screen Splicing Splicer Box with RS232
HDMI 1.4 and HDCP 1.4,4K HDMI DVI Video wall controller with 9 HDMI out, 3x3,2x2,1x1,1x2,1x3,1x4,2x1,2x3,2x4,3x1,3x2,4x1,4x2 display mode,180° Screen rotation & Edge mask, support optical toslink audio extractor,support panel switch,IR remote control and RS232 control .
Support 1 HDMI-Compatible input
Support input HDMI-Compatible / DVI
Support 9 HDMI-Compatible outputs
Support 1 x Optical SPDIF audio with 5.1CH audio
Support input 4K 30Hz,1920x1080P,24/30/5
Package Contents3x3 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

Does the 5 V 2.1 A power adapter need periodic replacement?

The unit ships with a 5 V 2.1 A external adapter; treat it as a replaceable part if the connector loosens or the brick fails after extended use.

What output resolution limit appears first when running all nine screens continuously?

Each of the nine HDMI outputs is capped at 1920×1080 60 Hz, so the 1080P 60 Hz ceiling is the first hard limit under sustained operation.

How much heat or fan noise does the controller produce during all-day operation?

The metal chassis acts as a passive heatsink with no internal fan, so the box runs silently and stays warm to the touch but not hot.
