Black rectangular box with sixteen HDMI ports and front panel buttons

Jansicotek

Jansicotek OZJ8 8x8 HDMI Matrix Switch 4K 60Hz Audio Video Distributor Selector Remote

SKU CH-0XTY-JJ3GF

An 8×8 HDMI matrix routes eight 4K@60Hz sources to eight displays with IR, RS232 and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes

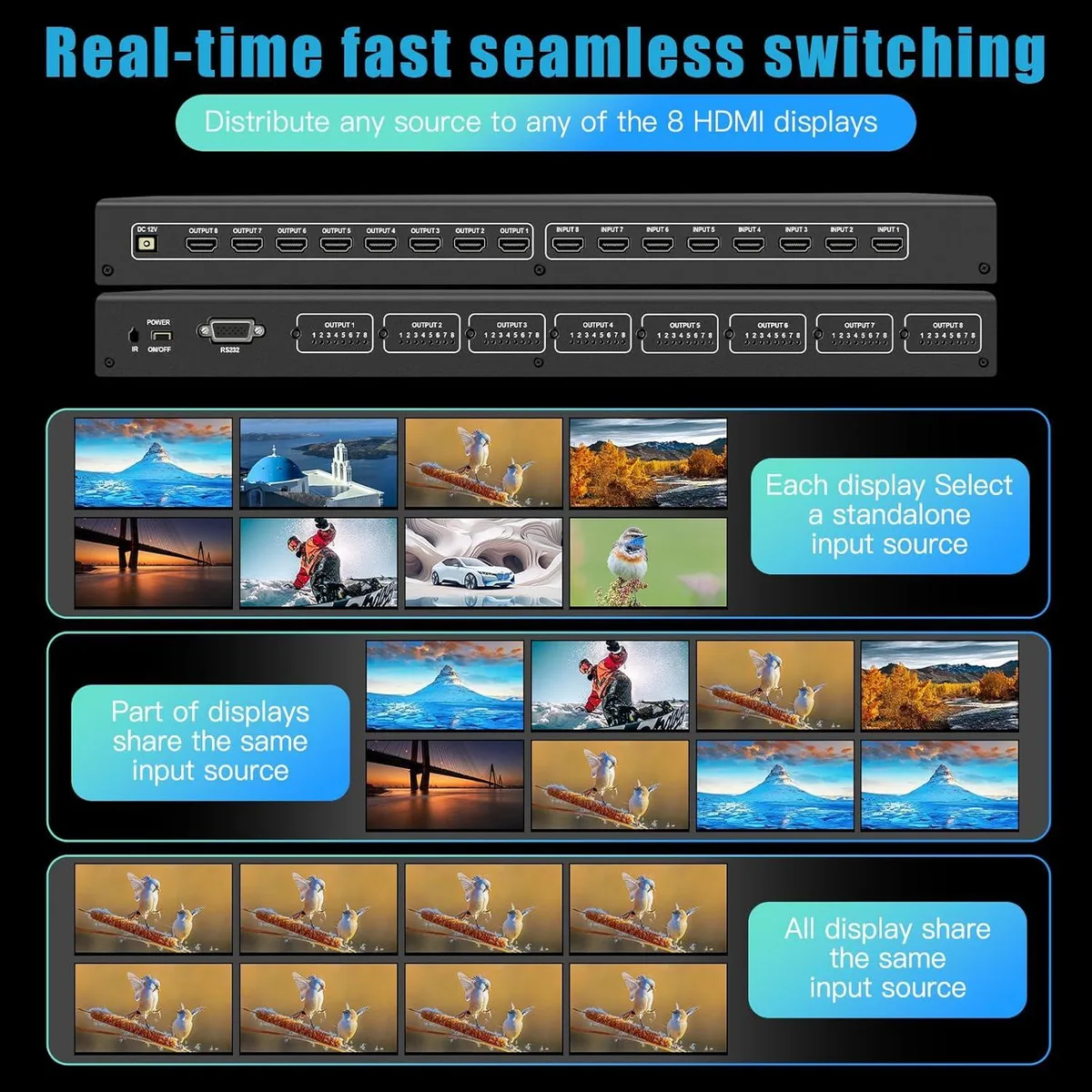

  • Route eight 4K sources to eight displays independently
  • Switch via IR remote, RS-232 or front-panel buttons
  • 18 Gbps bandwidth carries 4K 60 Hz 4:4:4 video
  • Supports 3D, deep colour up to 24 bit and HDR10
  • Compact 5.91 x 2.36 x .79 in chassis weighs 11.9 oz

8x8 HDMI matrix for multi-room AV

The Jansicotek OZJ8 routes eight HDMI sources to eight displays in any combination. It suits conference rooms, classrooms and signage installations where multiple 4K signals must be distributed and switched independently.

4K 60 Hz 18 Gbps capacity and cable limits

Each path handles 3840x2160 at 60 Hz with 8, 10, 12 or 24 bit deep colour, 3D and HDR10 at the full 18 Gbps bandwidth. Input cables must stay under 8 metres using AWG26 HDMI 2.0b leads; longer runs exceed the spec and will lose signal.

HDMI 2.0b interface constraints

The switch implements HDMI 2.0b with HDCP 2.2, RGB 4:4:4 and YUV 4:4:4 sampling at 600 MHz pixel clock. It cannot pass 4K above 60 Hz, 8K or any feature that requires HDMI 2.1 bandwidth. Control is by IR remote, RS-232 or front-panel keys only.

Highlights

  • Route eight 4K sources to eight displays independently
  • Switch via IR remote, RS-232 or front-panel buttons
  • 18 Gbps bandwidth carries 4K 60 Hz 4:4:4 video
  • Supports 3D, deep colour up to 24 bit and HDR10
  • Compact 5.91 x 2.36 x .79 in chassis weighs 11.9 oz

Specifications

BrandJansicotek
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ
Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.
4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the OZJ8 pass 4K 60 Hz from my older source through HDMI 2.0b without signal loss?

Yes, the matrix supports HDMI 2.0b and 18 Gbps bandwidth, so 4K@60 Hz YUV 4:4:4 or RGB 8:8:8 signals pass through cleanly when you use cables under 8 metres AWG26.

How do I confirm the matrix is routing each of the eight inputs to the correct output after installation?

Use the front-panel keys or IR remote to select an input for each output; the corresponding LED indicators light to show the active route, and RS-232 queries return the current cross-point map.

Does the box include HDMI cables or RS-232 cables, or must I buy them separately?

The package contains the matrix unit, IR remote and power supply only; HDMI cables and any RS-232 control cable are not included and must be purchased separately.
