Jansicotek OZJ8 8x8 HDMI Matrix Switch 4K 60Hz 18Gbps RS232 IR
Routes eight 4K HDR sources to eight displays at 60 Hz with 18 Gbps bandwidth via IR, RS-232 or front-panel control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports8x8 Matrix
- MatrixYes
- AudioYes

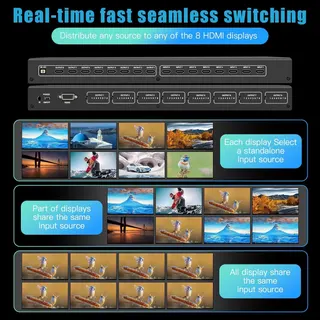

- Routes eight 4K sources to eight displays independently
- Mirrors one source across all eight outputs simultaneously
- Mixes split and switched layouts for flexible installations
- Controls via IR remote, RS-232 or front-panel buttons
- Delivers 4K 60 Hz 4:4:4 HDR at 18 Gbps
8x8 HDMI Matrix Switch
The Jansicotek OZJ8 routes eight HDMI sources to eight displays with full matrix switching. It handles 4K 60 Hz signals at 18 Gbps bandwidth and supports HDCP 2.2 for protected content. The unit includes IR remote, RS-232 serial and front-panel button control.
Installers needing eight independent zones
This switch suits conference rooms, classrooms and digital-signage installations where each display must show a different source or share one source across multiple screens. It is not for setups requiring more than eight inputs or outputs, nor for applications needing built-in video-wall processing or audio breakout.
HDMI 2.0b 18 Gbps bandwidth
The 600 MHz TMDS clock and 18 Gbps data rate determine whether 4K 60 Hz 4:4:4 signals pass without compression. Sources and cables must meet the same HDMI 2.0b specification and stay within the eight-metre cable limit for reliable operation.
Highlights
- Routes eight 4K sources to eight displays independently
- Mirrors one source across all eight outputs simultaneously
- Mixes split and switched layouts for flexible installations
- Controls via IR remote, RS-232 or front-panel buttons
- Delivers 4K 60 Hz 4:4:4 HDR at 18 Gbps
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ8 |
| Model | OZJ8 |
| Part Number | OZJ8 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 8x8 Matrix |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI version: HDMI 2.0b HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB. Support video format: 3D, 8/ 10/ 12/ 24 bit deep color. Max bandwidth: 600MHz Max band rate: 18Gbps Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port Switching mode: Manual switching & IR remote control switch Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A Max working current: 500mA |
| Input Connector | 8 x HDMI |
| Output Connector | 8 x HDMI |
| Maximum Cable Length | less than 8m AWG26 HDMI 2.0b standard cable |
| Maximum Resolutions | 4096 x 2160 |
| Bandwidth | 18Gbps/600MHZ |
| Features | 8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs. 4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 8x8 1x 12V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
How much heat or fan noise does the OZJ8 produce when running continuously all day?
The unit has no fans and draws little power, so it runs silently and stays cool during non-stop operation.
What cables and sources must I already own to use all eight inputs and outputs on this matrix?
You need up to eight HDMI 2.0b sources and eight HDMI displays, plus HDMI cables no longer than eight metres AWG26 for each connection.
Will the OZJ8 pass 1080p signals from older gear alongside 4K 60 Hz sources without downscaling everything?
Yes — it accepts 1080p and 4K 30 Hz inputs at the same time as 4K 60 Hz sources and routes each at its native resolution.
