Black rectangular HDMI matrix switch, eight inputs and eight outputs, compact metal chassis

Jansicotek

Jansicotek OZJ8 8x8 HDMI 2.0b Matrix Switch

SKU CH-T529-CPFX2

Routes eight HDMI sources to eight displays at up to 4K 60 Hz with 18 Gbps bandwidth, IR, RS-232 and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes
  • Routes eight 4K sources to eight displays independently
  • Delivers 4K at 60 Hz with 4:4:4 chroma and HDR10
  • Controls via IR remote, RS-232 or front-panel buttons
  • Handles 3D and 8/10/12/24-bit deep colour
  • Supports cable runs up to 8 m with AWG 26 leads

8×8 HDMI 2.0b Matrix Switch

The Jansicotek OZJ8 routes eight HDMI sources to eight displays. It suits control rooms, classrooms and digital-signage installations that need simultaneous, independent routing.

18 Gbps bandwidth and 8-metre cable limit

The HDMI 2.0b interface caps throughput at 18 Gbps, restricting 4K 60 Hz 4:4:4 signals to cables shorter than eight metres with AWG26 conductors. Longer runs or higher resolutions require fibre or active extenders not included here.

4096 × 2160 maximum resolution

The switch passes up to 4096 × 2160 pixels, so sources or displays that demand 8K or higher refresh rates at 4K will not work. Buyers needing greater pixel counts should look elsewhere.

Highlights

  • Routes eight 4K sources to eight displays independently
  • Delivers 4K at 60 Hz with 4:4:4 chroma and HDR10
  • Controls via IR remote, RS-232 or front-panel buttons
  • Handles 3D and 8/10/12/24-bit deep colour
  • Supports cable runs up to 8 m with AWG 26 leads

Specifications

BrandJansicotek
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ
Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.
4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1

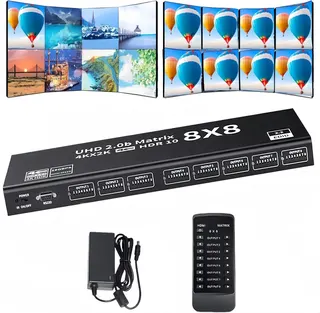

Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I choose between the different switching modes for my 8x8 setup?

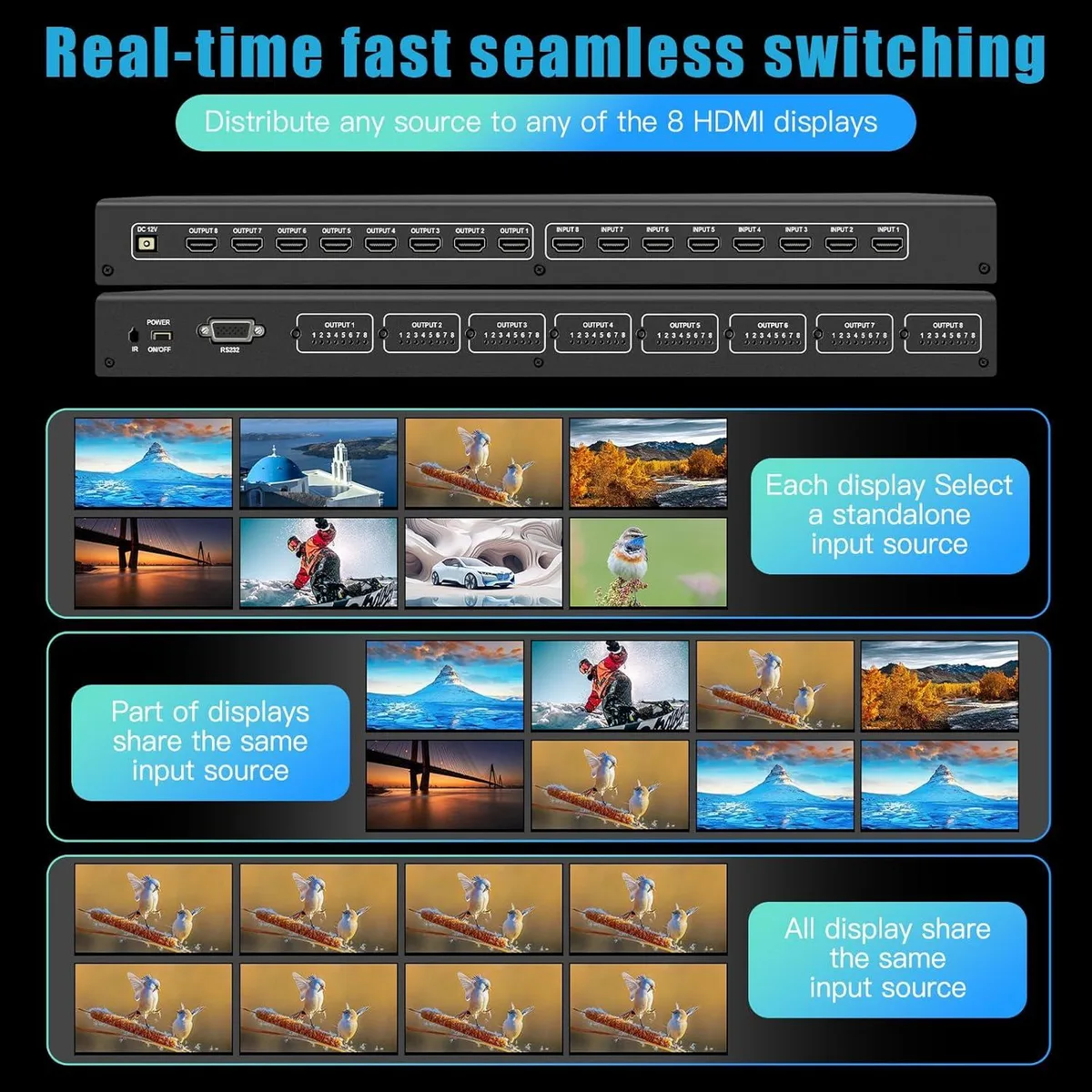

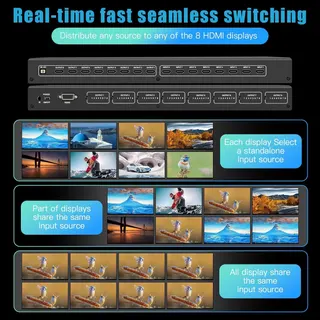

The matrix offers four modes: eight displays showing different sources, eight displays showing the same source, four displays sharing one source while four show individual sources, and a splicing-assist mode that works with external splicing gear on the input side.

What does the 18Gbps bandwidth mean when I connect 4K sources and displays?

It carries 4K at 60Hz with 4:4:4 chroma, HDR10, 3D and 8/10/12/24-bit deep colour without compression, provided cables stay under 8 metres using AWG26 HDMI 2.0b leads.

Which HDMI version and HDCP standard does the OZJ8 implement, and what do they cap?

HDMI 2.0b with HDCP 2.2 limits the matrix to 18Gbps, 600MHz pixel clock and 4K 60Hz 4:4:4; higher refresh rates or 8K signals are not supported.
