Black rectangular HDMI matrix switch 2x2 with front buttons and IR sensor

Jansicotek

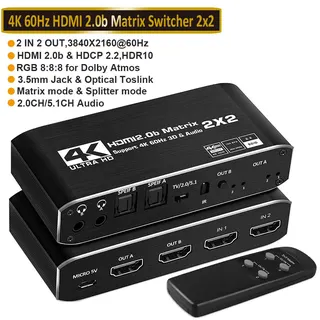

Jansicotek OZJ6 HDMI Matrix Switch 2x2 4K@60Hz

SKU CH-1XVZ-MDKCN

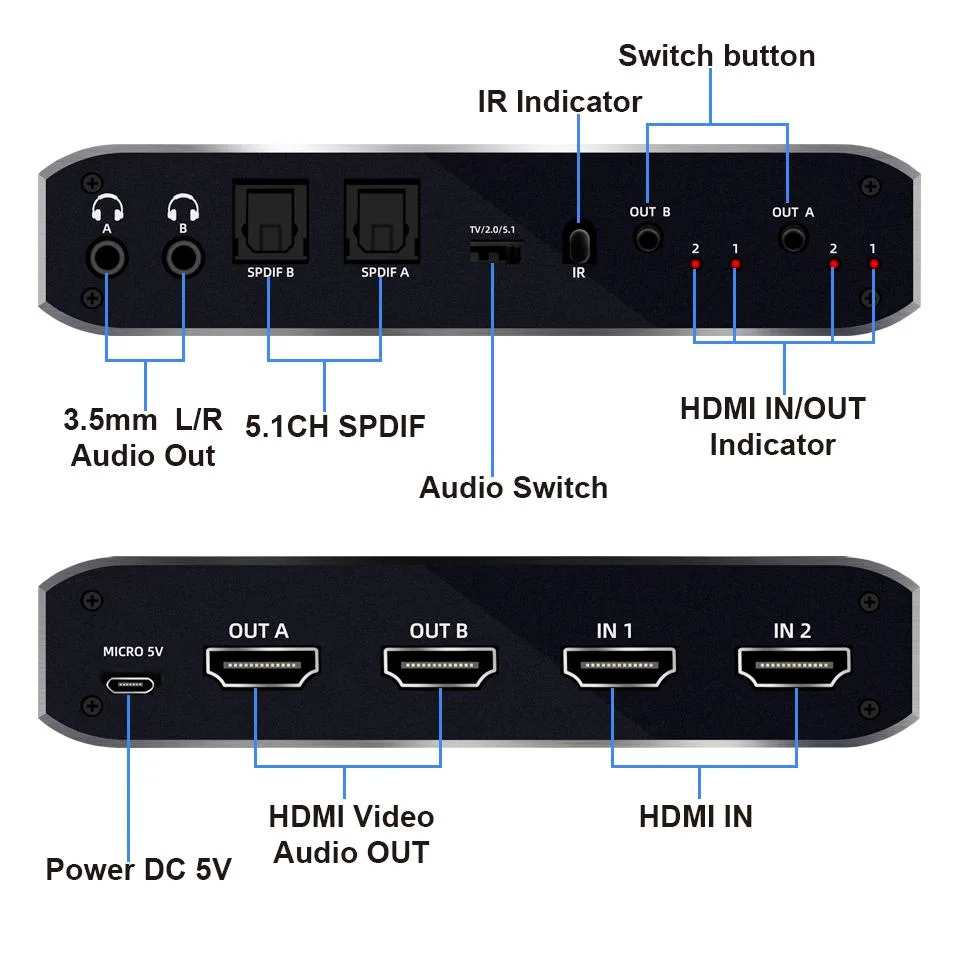

Routes two HDMI sources to two displays at 4K@60Hz with IR remote, SPDIF and 3.5 mm audio outputs, and auto 4K-to-1080P scaling on OUT A

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Extracts audio via SPDIF or 3.5 mm outputs
  • Includes IR remote for convenient switching
  • Auto-scales 4K to 1080p on one output

2×2 HDMI Matrix Switch

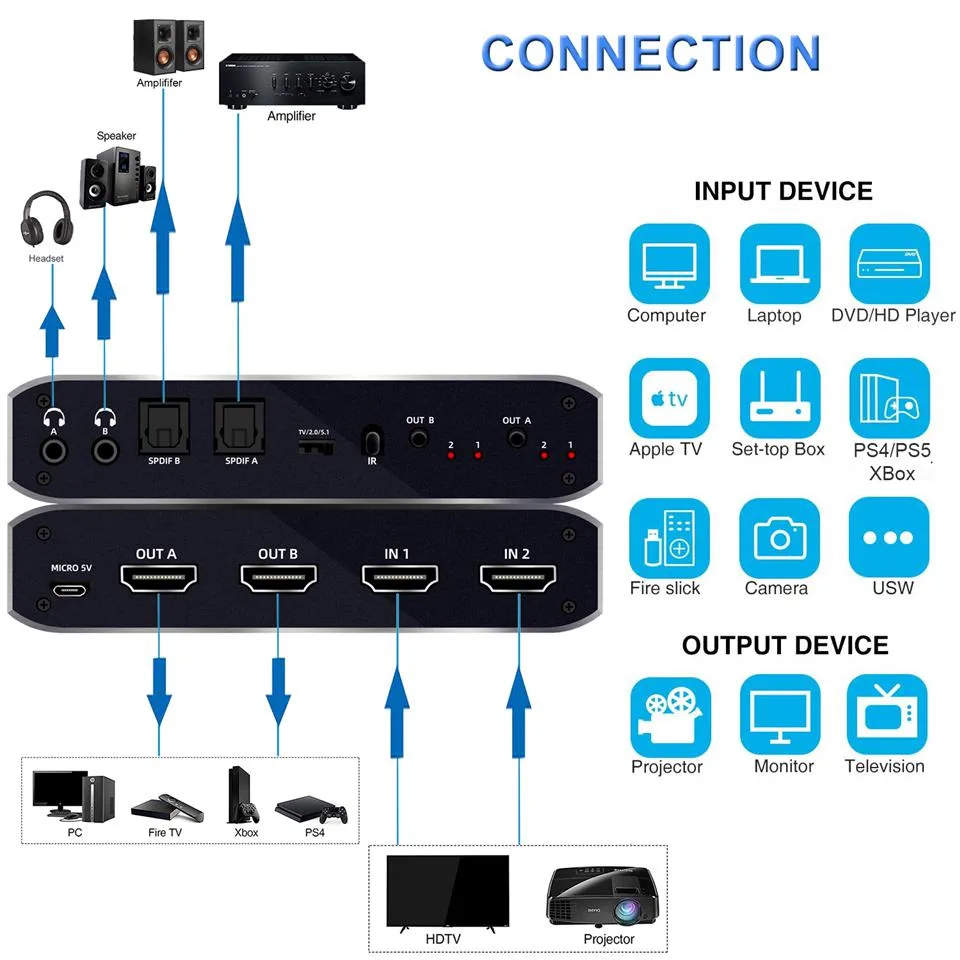

The Jansicotek OZJ6 is a compact HDMI 2.0b matrix switch that routes two sources to two displays. It supports resolutions up to 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. The unit includes IR remote control, SPDIF and 3.5 mm analogue audio outputs, and automatic downscaling from 4K to 1080p on output A.

Installers needing simple 4K distribution

This switch suits home-theatre, classroom or digital-signage setups where two sources must be shown on two screens simultaneously or independently. It is not for installations that require more than two inputs or outputs, or that need audio formats beyond LPCM, DTS 5.1 and Dolby AC3. The 10-metre cable limit at 4K 60 Hz also rules out longer runs without active extension.

HDMI 2.0b with 18.5 Gbps bandwidth

The single decisive specification is the HDMI 2.0b interface limited to 18.5 Gbps, which caps video at 4K 60 Hz 4:4:4 and excludes higher refresh rates or 8K signals. If your sources or displays demand greater throughput, this matrix will not pass the signal.

Highlights

  • Routes two sources to two displays independently
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Extracts audio via SPDIF or 3.5 mm outputs
  • Includes IR remote for convenient switching
  • Auto-scales 4K to 1080p on one output

Specifications

BrandJansicotek
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Should I choose the 2×2 matrix or a simpler switch for two sources and two displays?

The OZJ6 is a true 2×2 matrix so each of the two outputs can independently show either of the two inputs or both can show the same source at once.

What does 4K@60 Hz actually deliver on my 4K TV and 1080p projector?

The matrix passes 3840×2160 at 60 Hz to the 4K display while automatically downscaling the same signal to 1080p for the projector when it is connected to the OUT A port.

How does the HDMI 2.0b / HDCP 2.2 interface limit cable length and bandwidth?

The 18.5 Gbps bandwidth and HDCP 2.2 handshake are guaranteed up to 10 metres using AWG26 HDMI 2.0b standard cables; longer runs may reduce reliability.
