Jansicotek

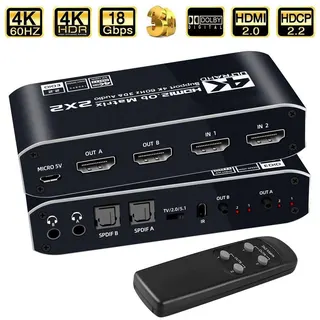

Jansicotek OZJ6 HDMI Matrix 2x2 4K@60Hz 18.5Gbps audio
A 4K@60Hz HDMI matrix routes two sources to two displays with 18.5Gbps bandwidth, audio extraction via optical and 3.5mm outputs, and IR remote control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- MatrixYes
- AudioYes

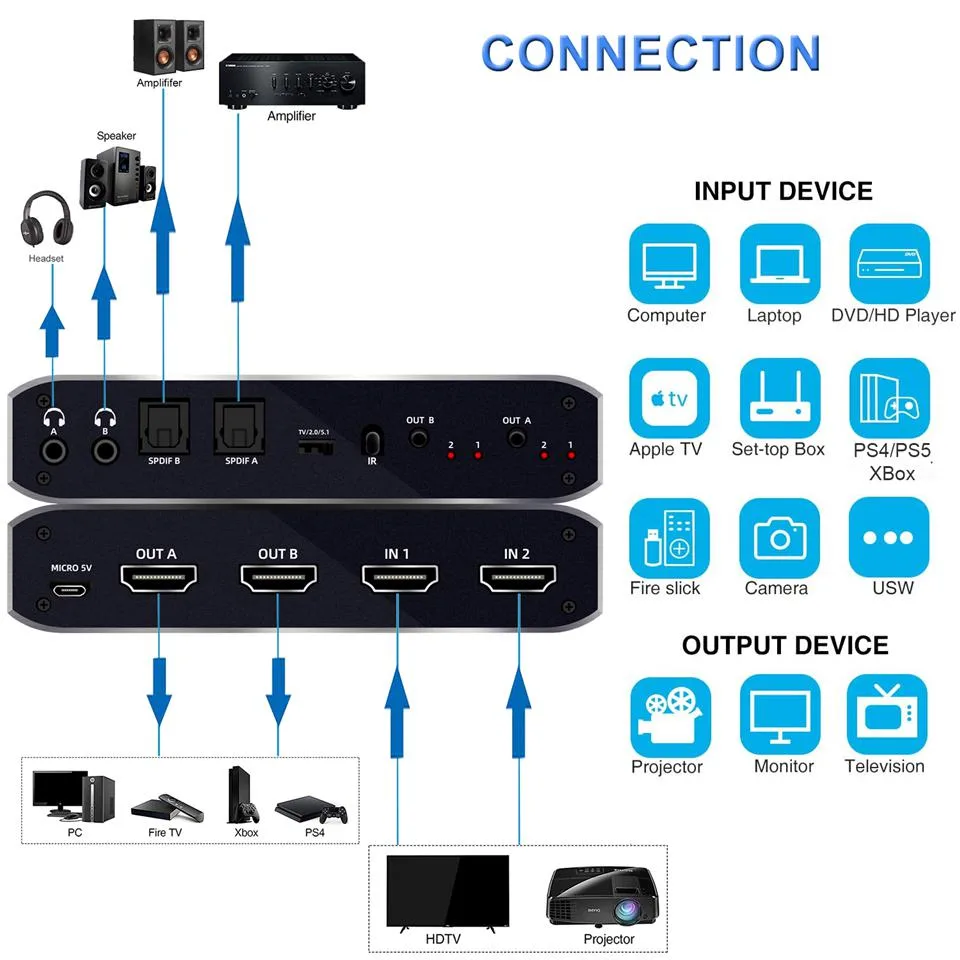

- Switch two 4K sources to two displays with IR remote
- Extract audio via SPDIF optical or 3.5 mm stereo outputs
- 4K@60 Hz 18.5 Gbps bandwidth with HDCP 2.2 support
- Auto-scale 4K to 1080P on one output while keeping 4K on the other
- Compact 5.91 x 2.36 x .79 in metal chassis weighing 11.9 oz
2×2 HDMI Matrix for Dual Displays
This Jansicotek OZJ6 matrix routes two HDMI sources to two displays simultaneously. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. The unit suits home theatre, office or classroom installations that need independent source selection per screen. It ships with a 5 V power adaptor, IR remote and manual.
Build Quality and Daily Connectivity

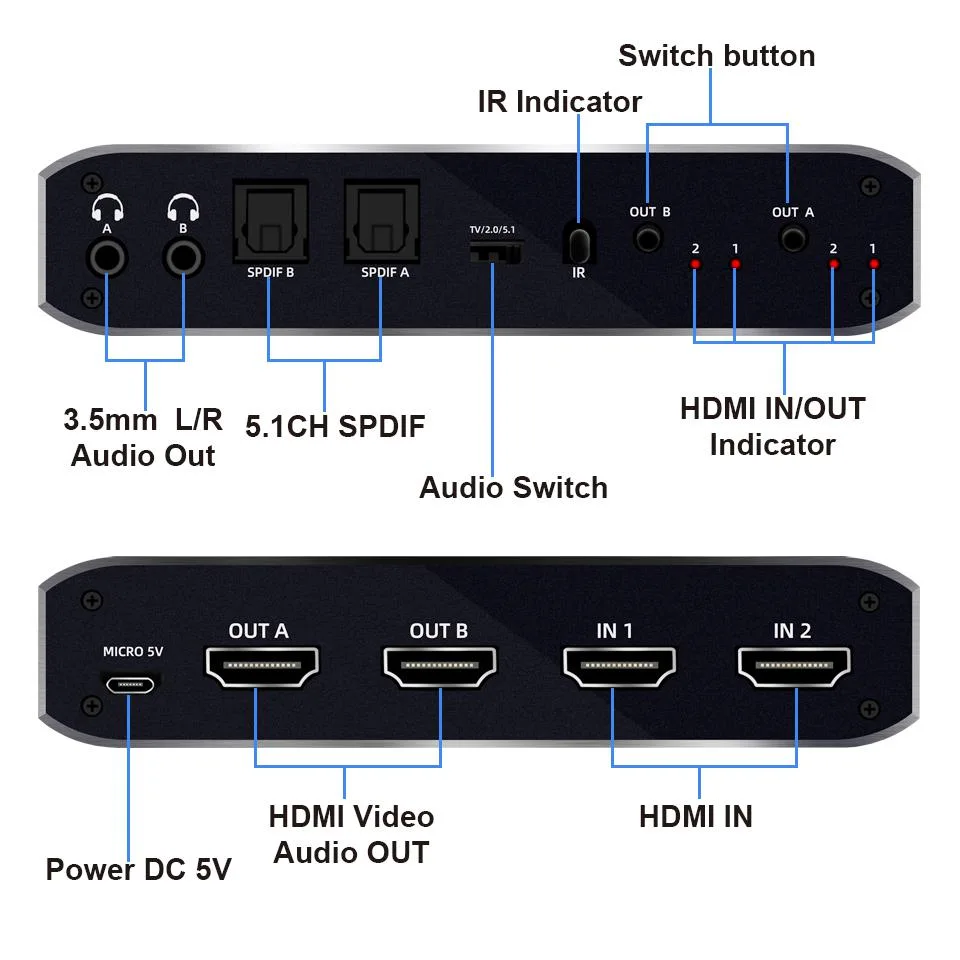

The black chassis measures 5.91 by 2.36 by .79 inches and weighs 11.9 ounces. All HDMI ports and the power input sit on the same edge for tidy cable runs. Two SPDIF optical and two 3.5 mm stereo outputs extract audio from either HDMI input. An IR receiver enables switching without line of sight to the front panel buttons.
Upgrade Path and When It Matters
The matrix replaces a basic splitter when you need to send different sources to each display. Automatic downscaling lets a 4K source feed a 1080p screen on OUT A while the other output keeps full resolution. It is not for setups requiring more than two inputs or outputs, or for resolutions above 4K at 60 Hz.
Highlights
- Switch two 4K sources to two displays with IR remote
- Extract audio via SPDIF optical or 3.5 mm stereo outputs
- 4K@60 Hz 18.5 Gbps bandwidth with HDCP 2.2 support
- Auto-scale 4K to 1080P on one output while keeping 4K on the other
- Compact 5.91 x 2.36 x .79 in metal chassis weighing 11.9 oz
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ6 |
| Model | OZJ6 |
| Part Number | OZJ6 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Model: HDMI Matrix 2x2 HDMI version: HDMI 2.0b HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8 Support video format: 8/10/12/24/32 bit Support audio format: LPCM/DTS 5.1/Dobly-AC3 Maximum bandwidth: 18.5Gbps Max bandwidth: 600MHz |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time Support LPCM/Dolby/DTS 5.1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 2 in 2 out 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
What bandwidth does the HDMI 2.0b interface cap at on this matrix?
The HDMI 2.0b ports are limited to 18.5Gbps with a TMDS clock up to 600MHz.
How much depth and clearance does the OZJ6 need behind the rack or shelf?
The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, so allow at least the 0.79 inch depth plus cable bend radius.
Which output must the 1080p display use for the auto-scaling feature to work?
Connect the lower-resolution display to the OUT A port; the matrix will then downscale the 4K signal to 1080p on that output while passing 4K@60Hz to the other.
