Black rectangular HDMI matrix switcher, two HDMI inputs and outputs with SPDIF and 3.5mm audio ports

Jansicotek

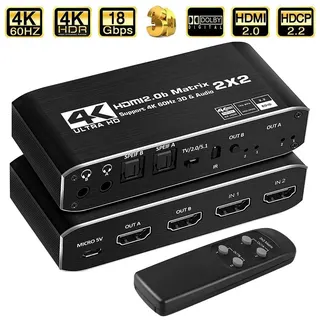

Jansicotek OZJ6 2x2 HDMI Matrix Switcher Splitter 2xSPDIF 3.5mm Audio 4K 60Hz

SKU CH-MYN9-RPQKG

Routes two HDMI sources to two displays at 4K 60 Hz while extracting audio via optical or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two 4K sources to two displays independently
  • Extracts audio via SPDIF optical and 3.5 mm stereo outputs
  • Auto-scales 4K to 1080p on one output while keeping 4K on the other
  • IR remote and front buttons give instant input switching
  • HDMI 2.0b with 18.5 Gbps bandwidth supports 60 Hz 4K HDR

Jansicotek OZJ6 2x2 HDMI Matrix Switch

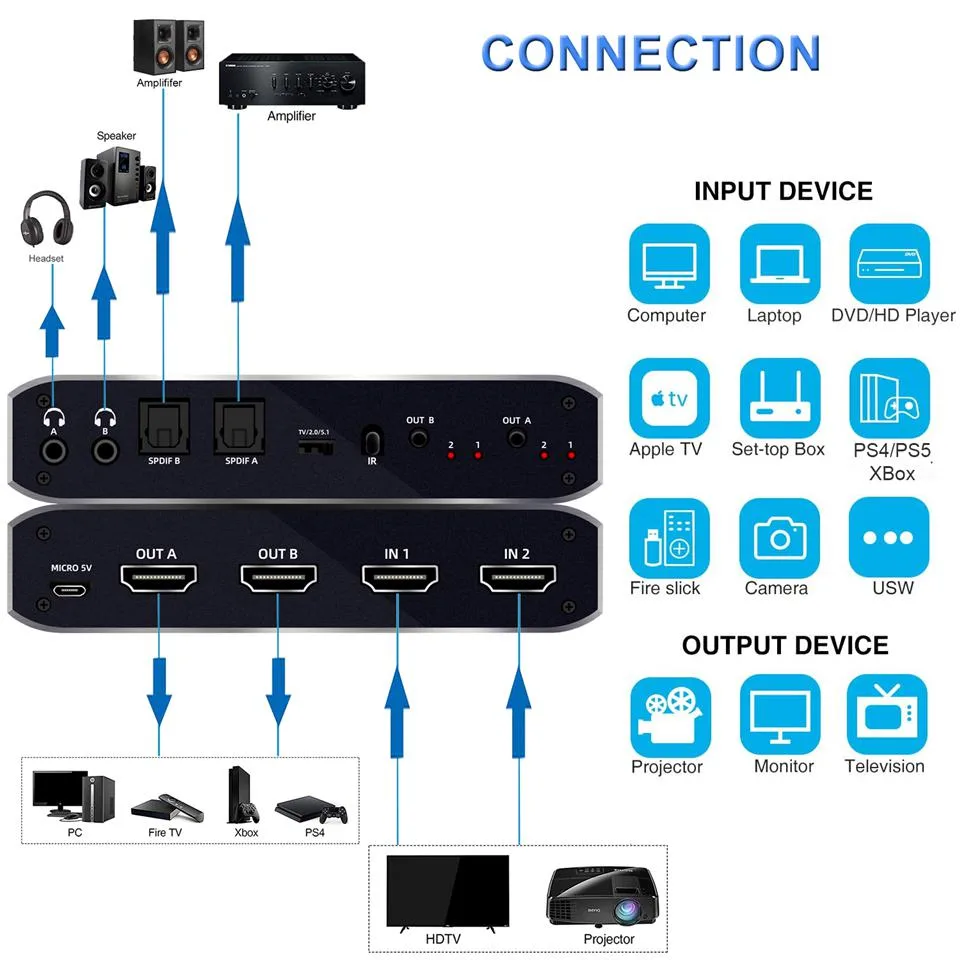

The Jansicotek OZJ6 is a 2x2 HDMI matrix switch that connects two 4K signal sources to two displays. It extracts audio from the HDMI input to Toslink SPDIF or 3.5mm stereo outputs. The unit includes an IR remote control and a 5V power adaptor. It suits home theatres, offices, classrooms and commercial installations needing flexible source and display routing.

Sustained 4K 60Hz operation with 18.5Gbps bandwidth

The switcher handles 4K@60Hz signals at up to 18.5Gbps and a TMDS clock of 600MHz continuously. It supports deep colour up to 48bit and audio formats including LPCM and DTS 5.1. Automatic resolution scaling reduces a 4K source to 1080P for a lower-resolution display connected to the OUT A port while maintaining 4K on the other output. HDCP 2.2 compliance ensures protected content plays without interruption.

Compact metal enclosure with side-aligned ports

The black chassis measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. All HDMI ports and the power input sit on the same side for tidy cable runs. Two HDMI inputs and two HDMI outputs use standard connectors supporting cables up to 10m at AWG26. SPDIF optical and 3.5mm audio outputs sit alongside the HDMI row. Front-panel buttons and the IR sensor provide local and remote switching.

Highlights

  • Routes two 4K sources to two displays independently
  • Extracts audio via SPDIF optical and 3.5 mm stereo outputs
  • Auto-scales 4K to 1080p on one output while keeping 4K on the other
  • IR remote and front buttons give instant input switching
  • HDMI 2.0b with 18.5 Gbps bandwidth supports 60 Hz 4K HDR

Specifications

BrandJansicotek
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the matrix run hot or draw much power when left on 24/7?

The unit ships with a 5 V power adaptor and has no internal fan, so it runs silently with negligible heat during continuous operation.

What cables and displays must I already have to use both HDMI outputs and the audio extractors?

You need two HDMI source devices, two HDMI displays, and optionally an optical SPDIF or 3.5 mm stereo cable for each extracted audio path.

Will a 1080p monitor on OUT A work alongside a 4K screen on OUT B without manual switching?

Yes, the matrix automatically down-scales the 4K signal to 1080p on OUT A while passing native 4K@60Hz to OUT B simultaneously.
