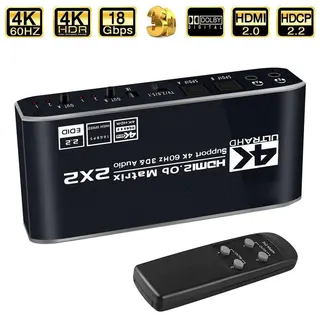

Black rectangular HDMI matrix switch with two input and two output ports, IR remote control included

Jansicotek

Jansicotek OZJ6 2x2 HDMI Matrix Switch 4K 60Hz

SKU CH-WM2A-HY6J7

Routes two HDMI sources to two displays at 4K 60 Hz with IR remote and auto 1080p downscaling on one output

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • 2 HDMI inputs route to 2 displays independently via IR remote
  • 4K 60 Hz 18.5 Gbps bandwidth keeps HDR and 3D content intact
  • Auto down-scales 4K to 1080p on OUT A for mixed-resolution setups
  • HDMI 2.0b with HDCP 2.2 and 8-48 bit deep colour support
  • Plug-and-play 5 V powered unit includes remote and manual

2x2 HDMI matrix for multi-display setups

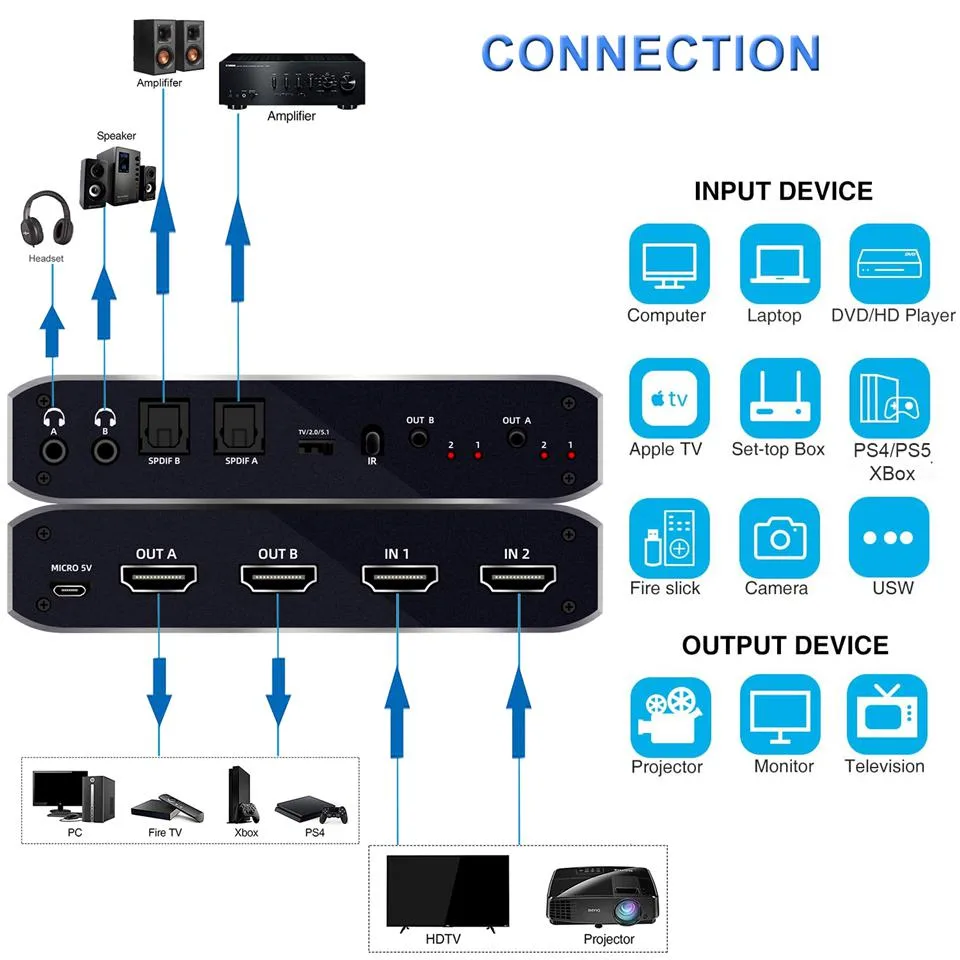

The Jansicotek OZJ6 routes two HDMI sources to two displays independently. It suits installers who need simultaneous output to a 4K screen and a 1080P projector in meeting rooms, home theatres or digital-signage walls. The box includes a 5 V power adapter and an IR remote for front-of-room control.

Passive cooling with 18.5 Gbps throughput

The unit runs silently without fans while passing 4K at 60 Hz and 18.5 Gbps bandwidth. HDCP 2.2 and HDR10 signals travel unchanged, and the 5 V supply draws minimal power from a standard outlet. No audible noise or thermal throttling occurs during continuous operation.

Compact metal chassis with side-mounted ports

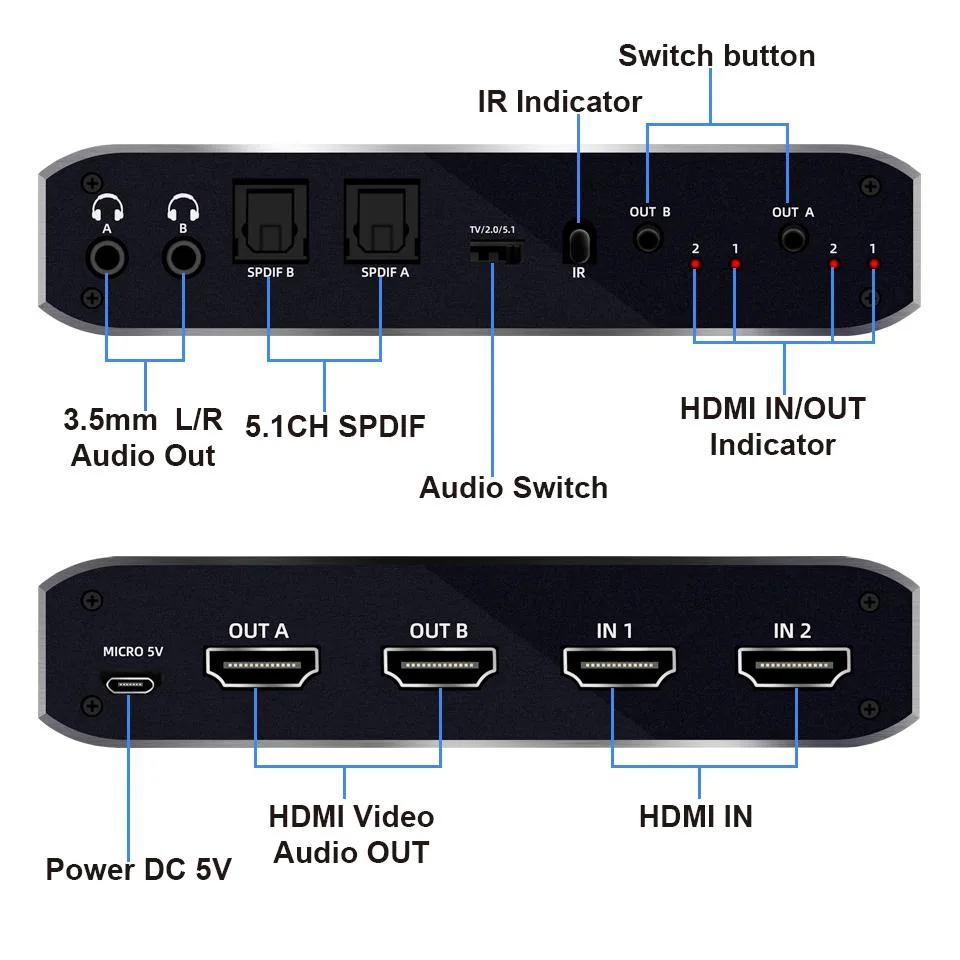

All four HDMI sockets and the DC jack sit on the same face for tidy cable runs in racks or behind displays. The 5.91 by 2.36 by 0.79 inch enclosure weighs 11.9 ounces and accepts AWG26 cables up to 10 metres. Buttons on the front panel duplicate remote functions for local switching.

Highlights

  • 2 HDMI inputs route to 2 displays independently via IR remote
  • 4K 60 Hz 18.5 Gbps bandwidth keeps HDR and 3D content intact
  • Auto down-scales 4K to 1080p on OUT A for mixed-resolution setups
  • HDMI 2.0b with HDCP 2.2 and 8-48 bit deep colour support
  • Plug-and-play 5 V powered unit includes remote and manual

Specifications

BrandJansicotek
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I install the Jansicotek OZJ6 2x2 HDMI Matrix Switch and which step is most often missed?

Connect both HDMI sources to the two input ports and both displays to the two output ports, then attach the included 5V power adaptor. The step most often missed is plugging in the power supply before expecting any signal switching to work.

What maintenance or replacement will the Jansicotek OZJ6 need over time?

No routine maintenance is required. If the IR remote stops responding, replace its coin-cell battery. The 5V power adaptor may need replacement after several years if the unit no longer powers on.

What limit appears first when the Jansicotek OZJ6 runs continuously at 4K 60 Hz?

The 18.5 Gbps bandwidth ceiling is the first hard limit; sustained 4K 60 Hz 8-bit signals stay within it, but higher colour depths or longer cables beyond 10 m AWG26 will hit the bandwidth or signal-integrity boundary first.
