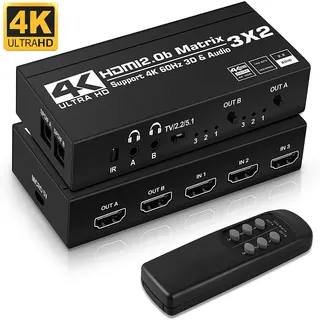

Black rectangular HDMI matrix switch with front ports and buttons

Jansicotek

Jansicotek OZJ5 HDMI Matrix 3x2 4K@60Hz 18.5Gbps Black

SKU CH-YZJJ-3SMZ8

A 3×2 HDMI matrix routes three 4K sources to two displays at 60 Hz with 18.5 Gbps bandwidth, plus optical and 3.5 mm audio extraction controlled by IR remote or front button

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Routes three 4K@60Hz sources to two displays
  • 5Gbps bandwidth keeps full 4:4:4 colour intact
  • Optical and 3.5mm outputs extract audio per zone
  • IR remote and front button give instant switching control
  • DC 5V 600mA power runs cool from -15°C to +45°C

3x2 HDMI Matrix for multi-source setups

This Jansicotek OZJ5 matrix routes three HDMI sources to two independent displays. It handles 4K@60Hz signals with 18.5Gbps bandwidth and HDCP 2.2 compliance. Installers and AV enthusiasts can switch or split sources to projectors or monitors via IR remote or front-panel buttons. Audio de-embedding is provided through Toslink SPDIF and 3.5mm stereo outputs on each zone.

Upgrade from basic 3x1 switchers

A standard 3x1 switch forces both displays to show the same source. This 3x2 matrix lets each output select any input independently, so one screen can show a media player while the other shows a console. The jump is worth it when you need simultaneous, different content on two zones without adding a second switch. It also replaces separate audio extractors by integrating SPDIF and 3.5mm outputs per output port.

Stable 4K60 over 10 metre cables

The unit maintains 18.5Gbps throughput with TMDS clock up to 600MHz across cable runs up to 10 metres using AWG26 HDMI 2.0b cables. Deep-colour support up to 48-bit and 3D formats are sustained without signal drop during extended sessions. Operating temperature range of -15°C to +45°C and a 600mA draw at 5V DC keep performance consistent in enclosed racks or warm equipment cabinets.

Highlights

  • Routes three 4K@60Hz sources to two displays
  • 5Gbps bandwidth keeps full 4:4:4 colour intact
  • Optical and 3.5mm outputs extract audio per zone
  • IR remote and front button give instant switching control
  • DC 5V 600mA power runs cool from -15°C to +45°C

Specifications

BrandJansicotek
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit

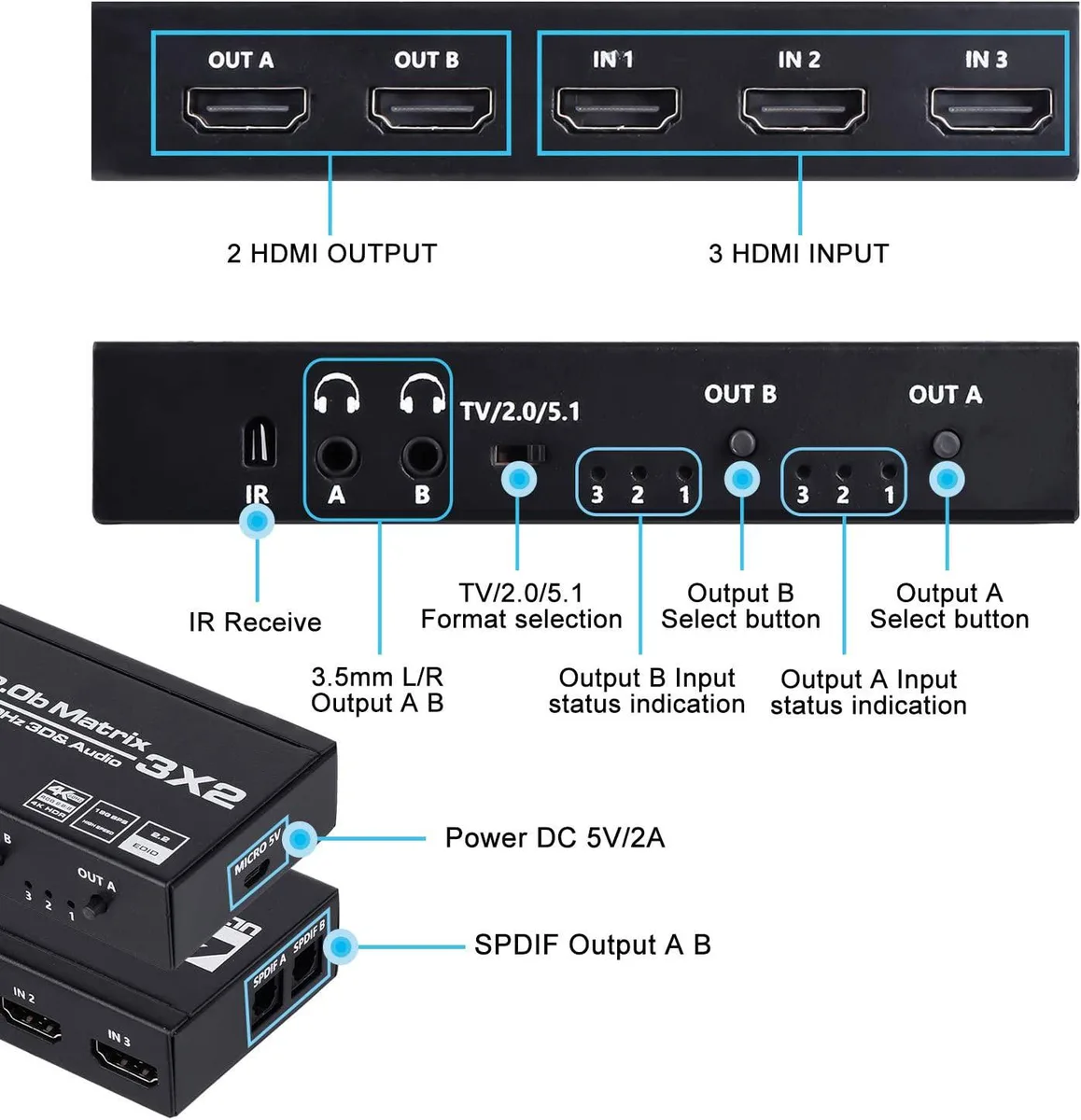

- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4

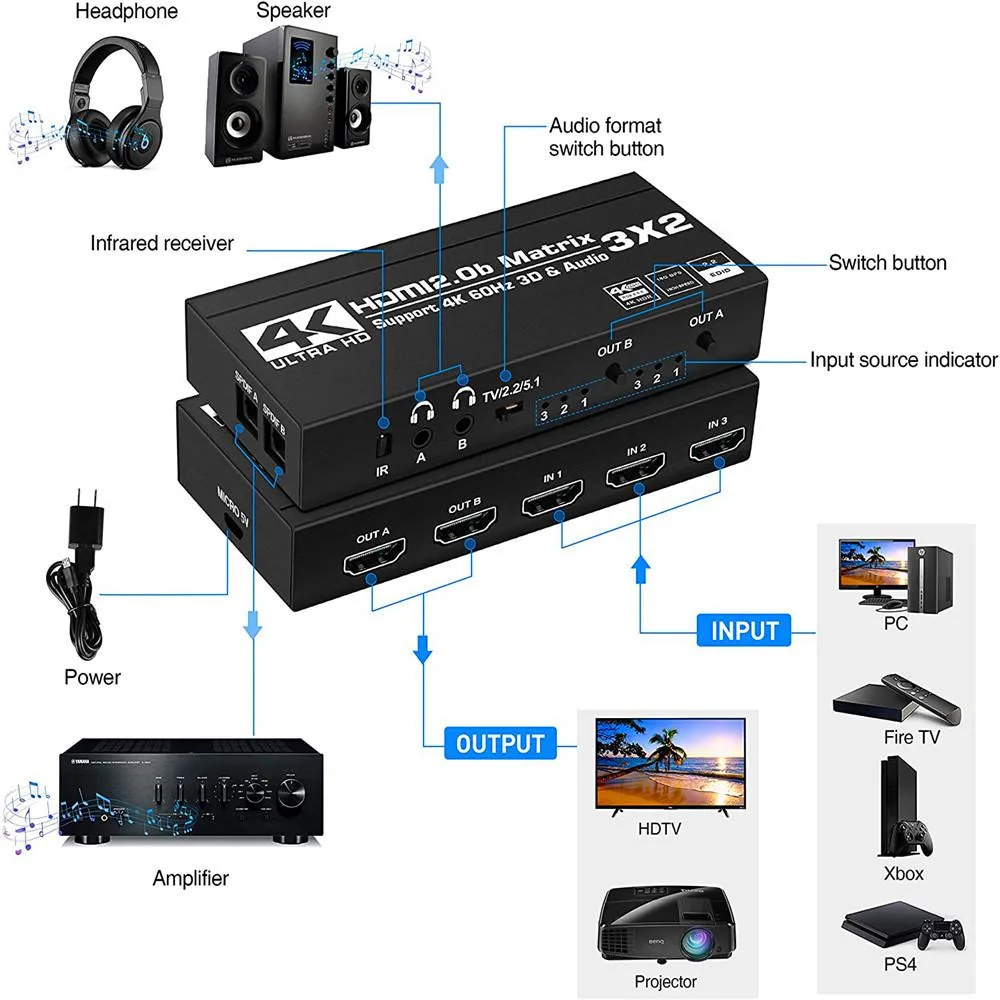

- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How much depth does the 170 x 56 x 24 mm chassis need behind the rack?

The unit is 24 mm deep, so allow at least that plus cable bend radius for the three HDMI inputs and two HDMI outputs.

Which button sequence on the front panel or IR remote locks the EDID so sources do not renegotiate when switching?

Press the EDID button on the front panel until the LED shows the desired preset, or use the EDID key on the IR remote to cycle through the stored modes.

When the SPDIF or 3.5 mm audio extraction drops out, which component should be checked first?

Verify the DC 5 V supply is delivering a steady 600 mA; a sagging adapter is the most common cause of intermittent audio extraction.
