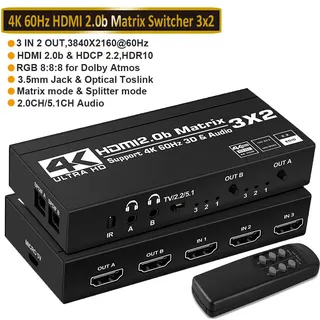

Jansicotek OZJ5 3x2 HDMI Matrix Switch Audio 4K@60Hz

Three-input two-output matrix

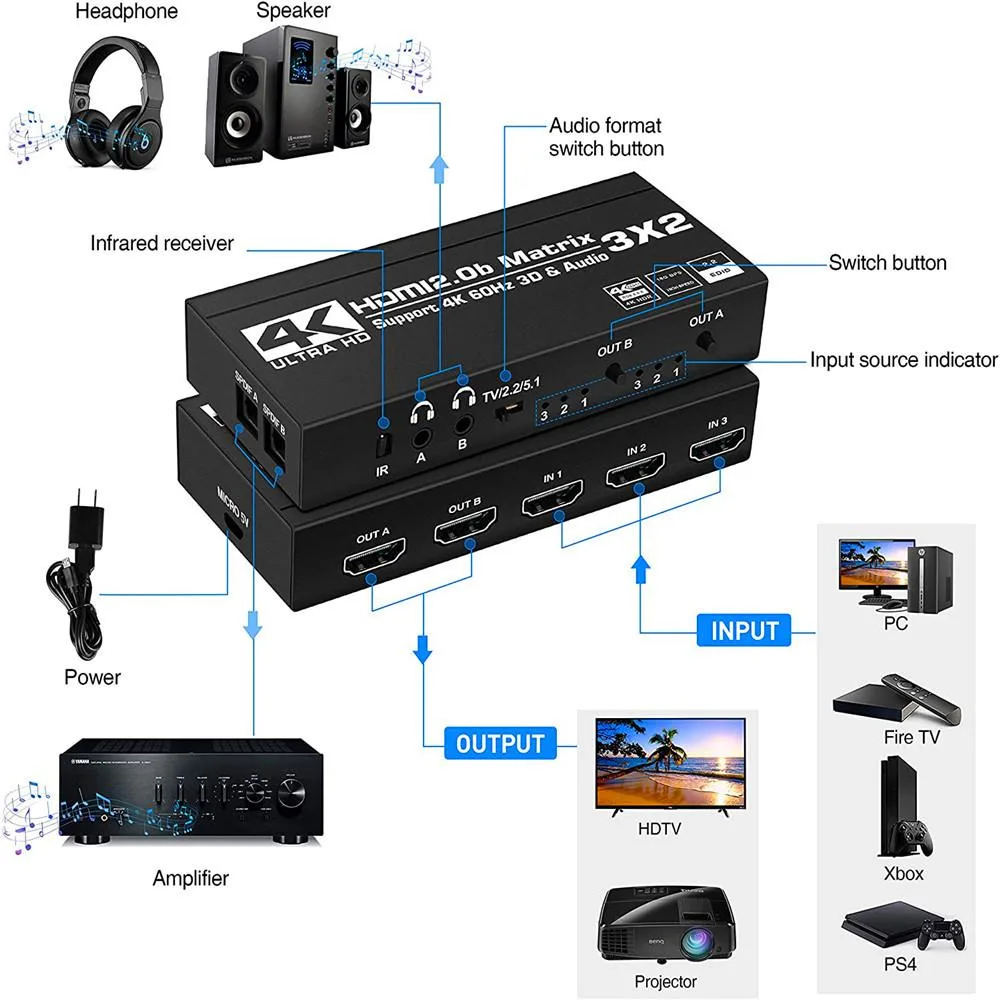

The Jansicotek OZJ5 is a 3x2 HDMI matrix switch that routes three 4K HDR sources to two displays or projectors. It extracts audio from any input through Toslink optical or 3.5 mm stereo outputs. IR remote and front-panel buttons provide local control for home cinema, meeting room or digital signage setups.

18.5 Gbps bandwidth sustained

The switch handles 4K@60 Hz at 18.5 Gbps with TMDS clock up to 600 MHz across both outputs simultaneously. Deep colour support up to 48-bit and HDR 10 metadata pass through without compression. HDCP 2.2 compliance maintains protected content paths during extended sessions, while EDID management keeps handshakes stable when sources or displays change.

DC 5 V 600 mA power

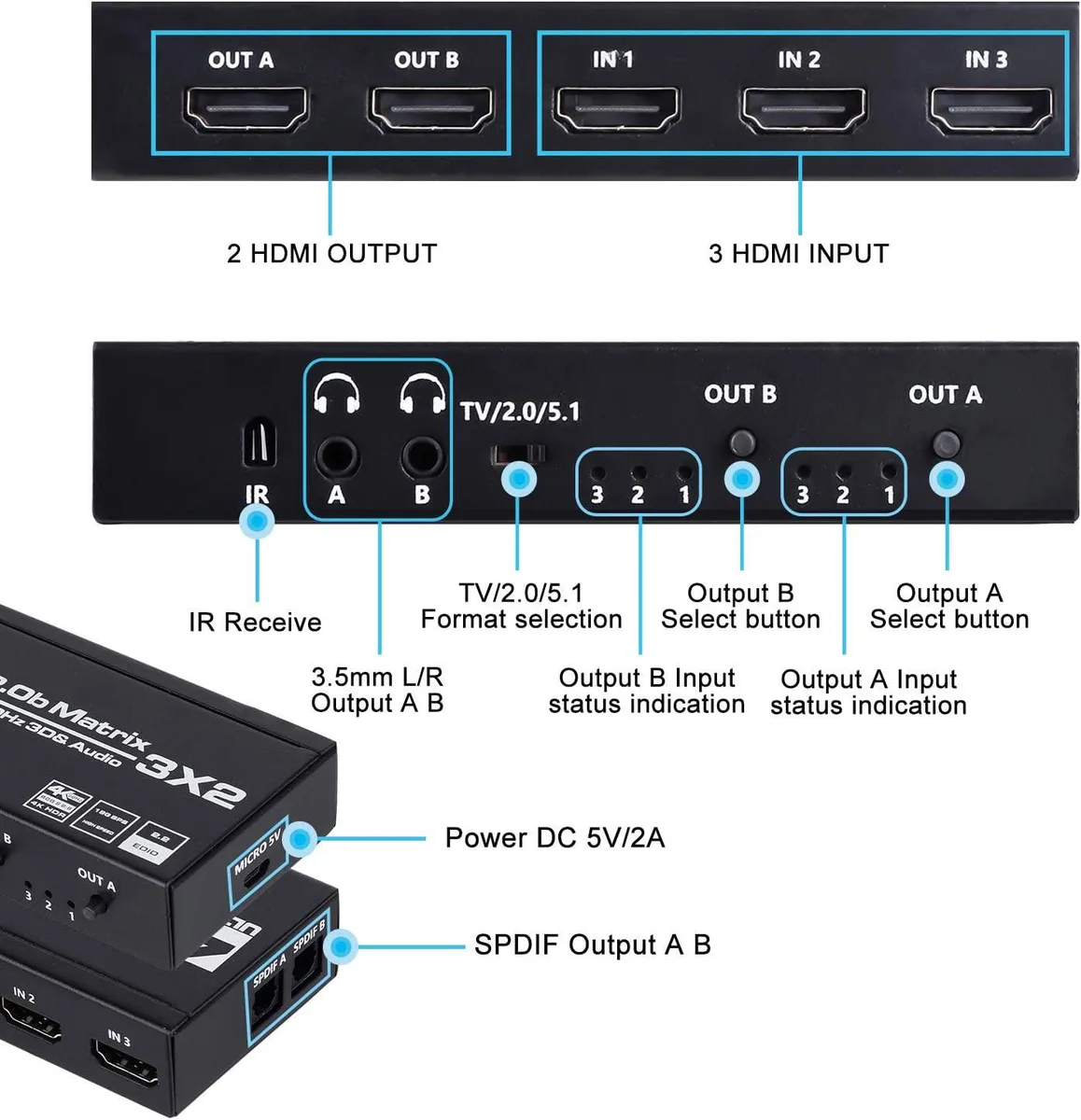

A compact black enclosure measuring 5.91 x 2.36 x 0.79 inches and weighing 11.9 ounces fits on a shelf or behind a display. Three HDMI inputs and two HDMI outputs accept cables up to 10 m using AWG26 2.0b standard leads. Optical and 3.5 mm audio ports sit beside the HDMI row for tidy cable runs. Operating range spans -15 °C to +45 °C for reliable year-round use.
